Description

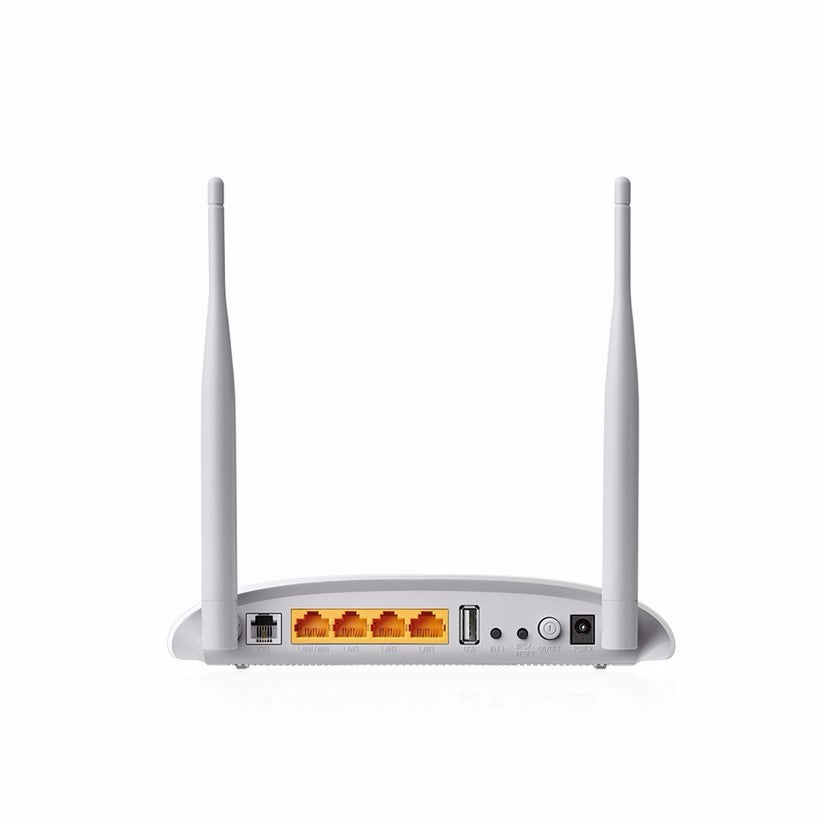

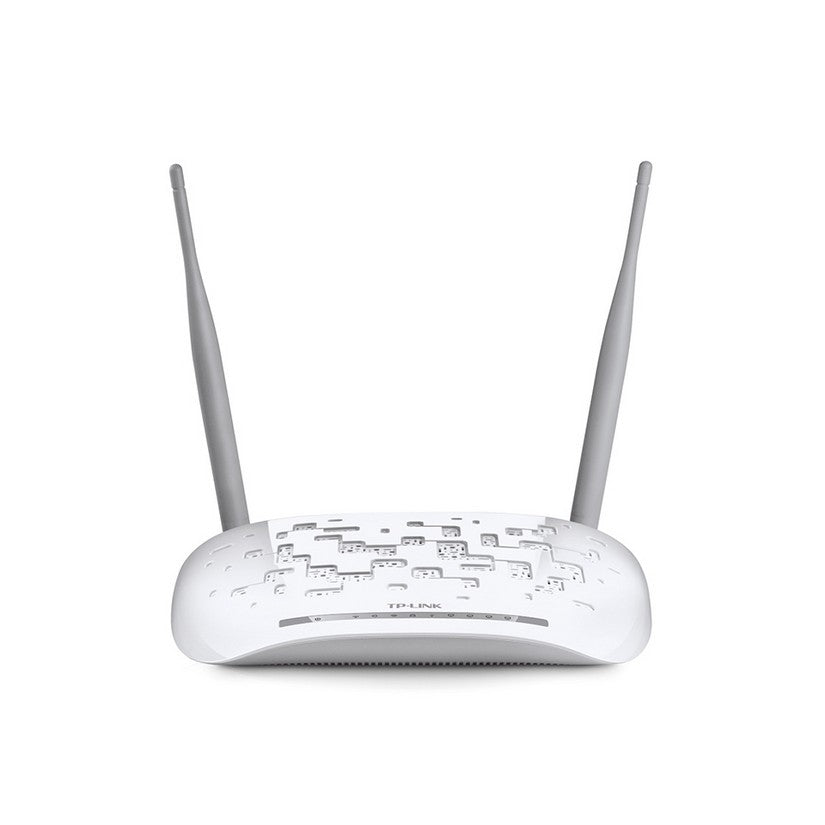

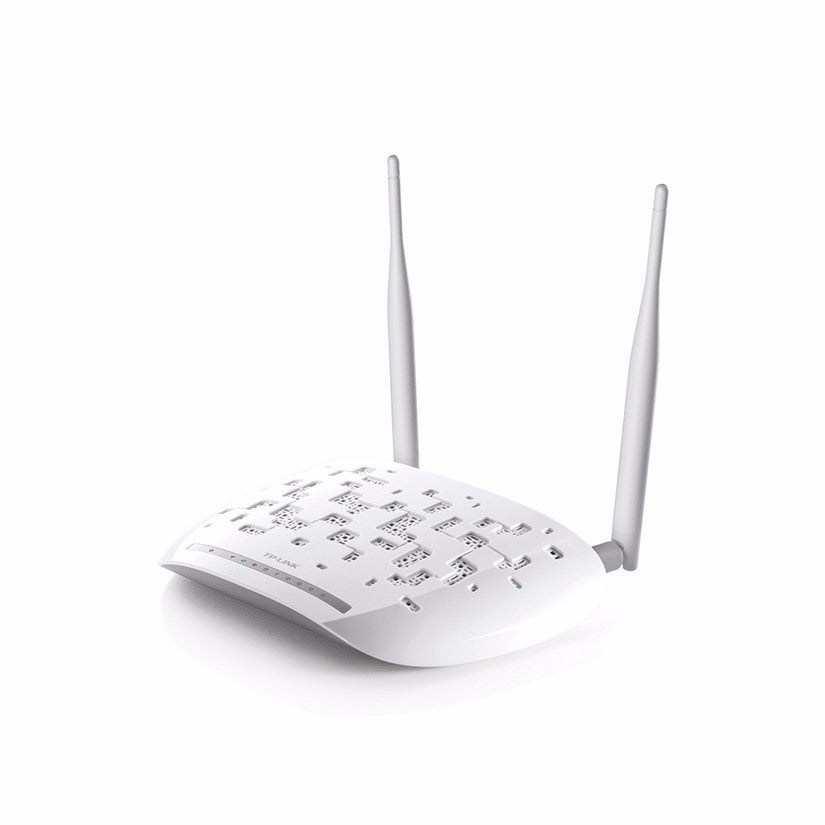

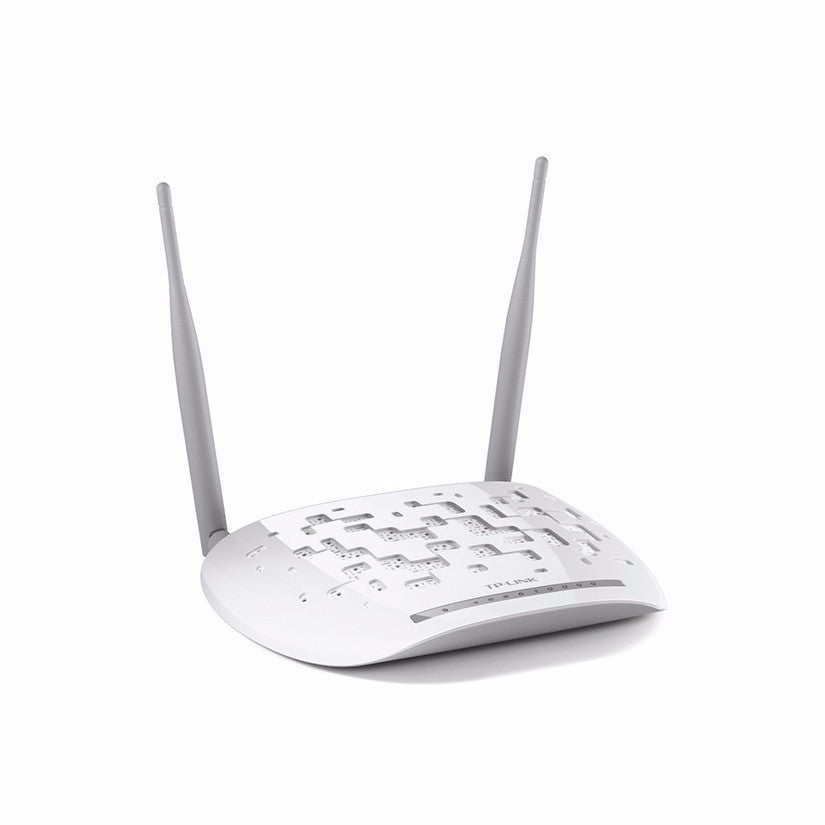

TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router
What This Product Does
TP-LINK™s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.
USB Sharing Port Easy Sharing
Using the TD-W9970™s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device™s FTP server functions so that you never have to part with your files.
Interchangeable LAN/WAN Port Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
Up to 100Mbps broadband speed
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.
Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
SPECIFICATIONS:
HARDWARE FEATURES |
|
Interface |
4 10/100Mbps RJ45 Ports |
Button |
1 Power On/Off Button |
Dimensions (W X D X H) |
7.7*5.1*1.4 in. (195—130—36mm) |
External Power Supply |
12VDC/1A |
IEEE Standards |
IEEE 802.3, 802.3u |
VDSL2 Standards |
ITU-T G.993.2 |
ADSL Standards |
Full-rate ANSI T1.413 Issue 2 |
ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis) |
ADSL2+ Standards |
ITU-T G.992.5 |
Antenna Type |
Omni directional, Fixed |
Antenna Gain |
2 x 5dBi |
WIRELESS FEATURES |
|
Wireless Standards |
IEEE 802.11b, 802.11g, 802.11n |
Frequency |
2.400-2.4835GHz |
Transmit Power |
<20dBm(EIRP) |
Wireless Security |
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK |
SOFTWARE FEATURES |
|
Quality of Service |
WMM, Bandwidth Control (IP QoS) |
Security |
NAT Firewall, |
IPv6 |
IPv6 and IPv4 dual stack |
Management |
Web Based Configuration(HTTP), |
Port Forwarding |
Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols |
ATM Forum UNI3.1/4.0 |
Advanced Features |
Ethernet WAN (EWAN) |
USB Sharing |
Storage Sharing |
IGMP |
IGMP snooping V1/V2/V3 |
IPSec VPN |
10 IPSec VPN Tunnels |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
TD-W9970 |
System Requirements |
Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
Environment |
Operating Temperature: 0~40 (32~104) |
