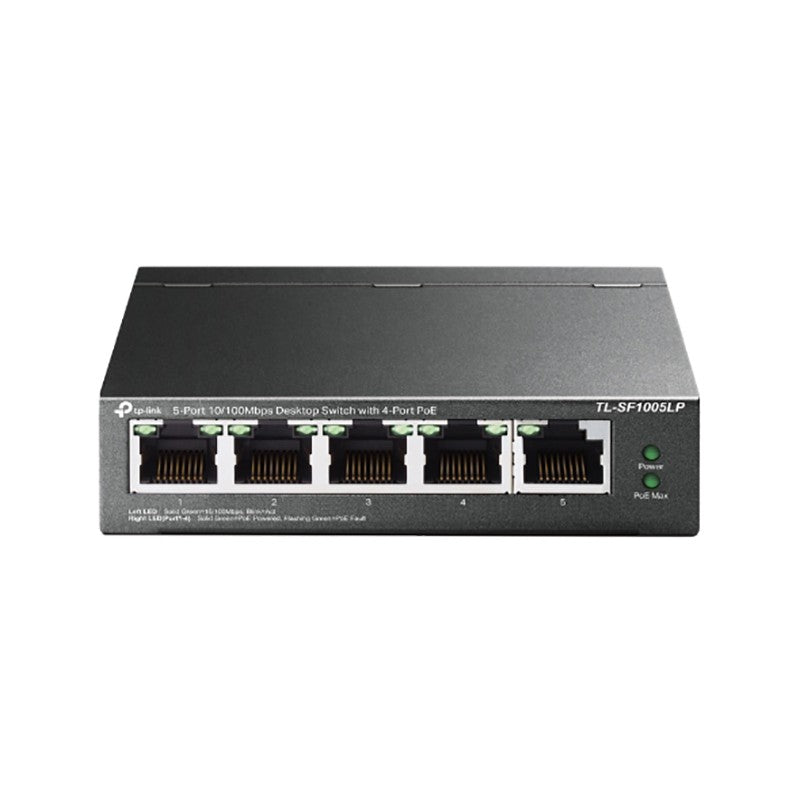

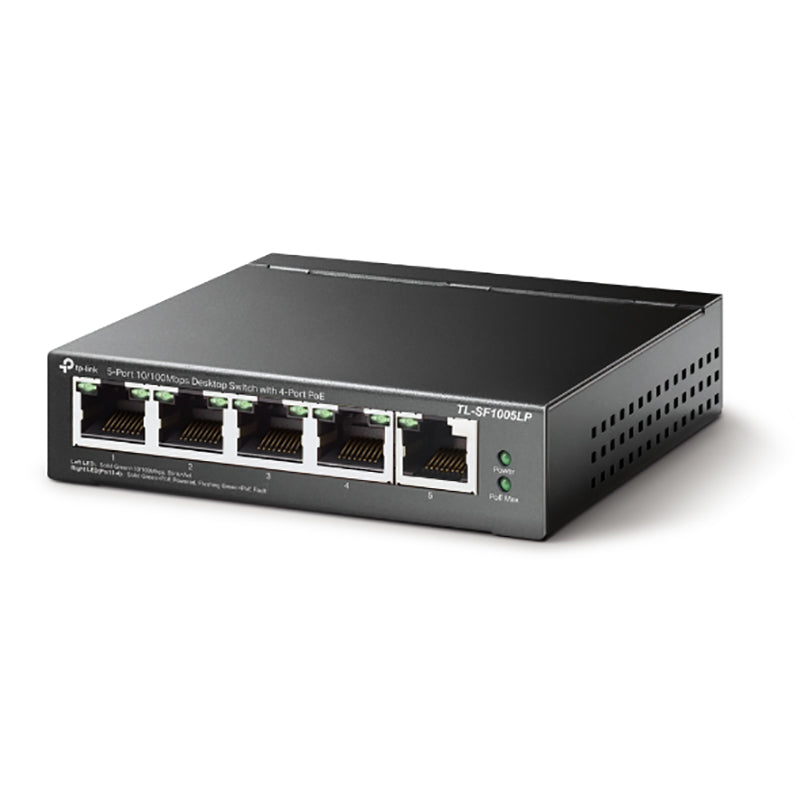

TP-Link 5 Port 10/100Mbps Desktop Switch with PoE

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output:     53.5 V DC / 0.81 A)

Packet Forwarding Rate

0.744 Mpps

PoE Ports (RJ45)

Standard: 802.3 af compliant

PoE Ports: Ports 1–4

Power Supply: 41 W

Mac Address Table

2K

Jumbo Frame

2 K

Switching Capacity

1 Gbps

Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

Max Power Consumption

1.9 W (220 V / 50 Hz, no PD connected)

47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation

6.48 BTU/h(no PD connected)

160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Store-And-Forward

Transmission Method

Advanced Functions

Compatible With IEEE 802.3af/at Compliant PDs

Extend Mode Button (Ports 1–4)

Priority Mode Button (Ports 1–2)

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SF1005LP

Power Adapter

Installation Guide

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
