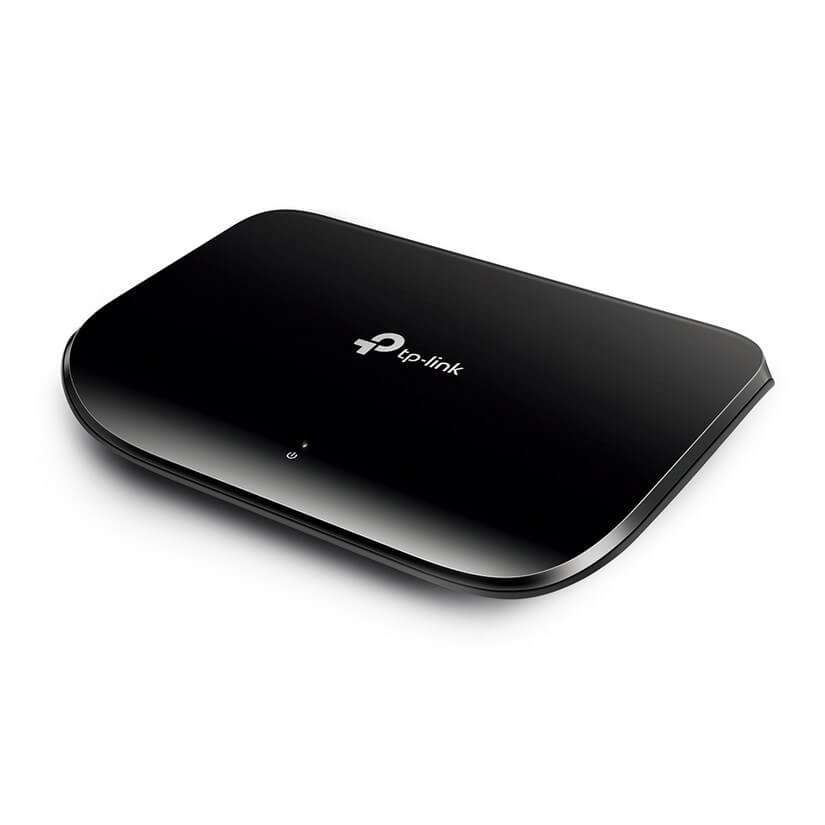

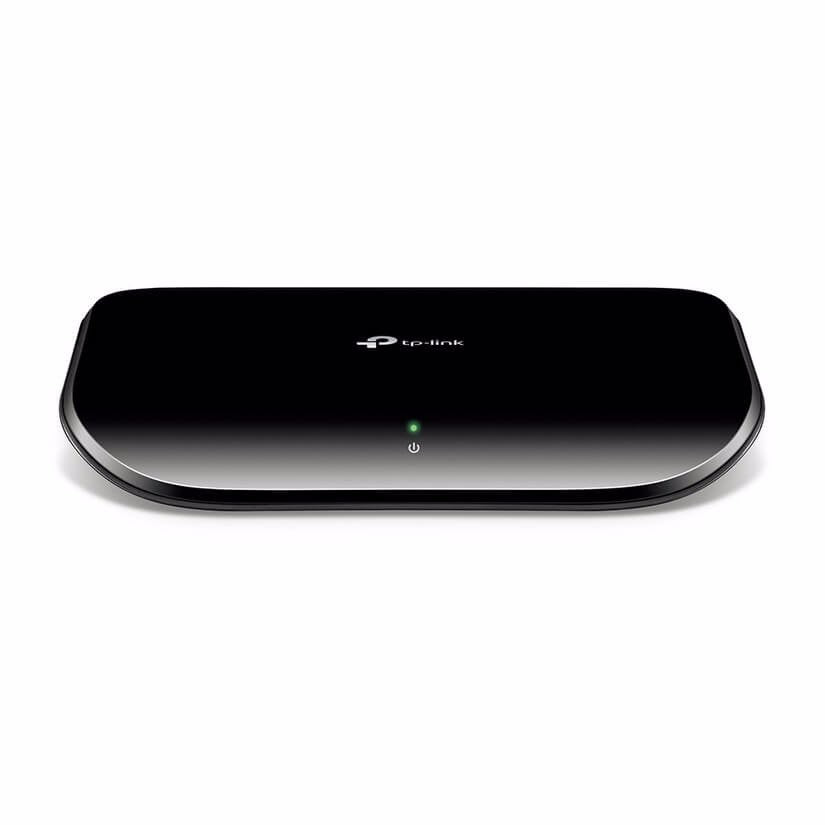

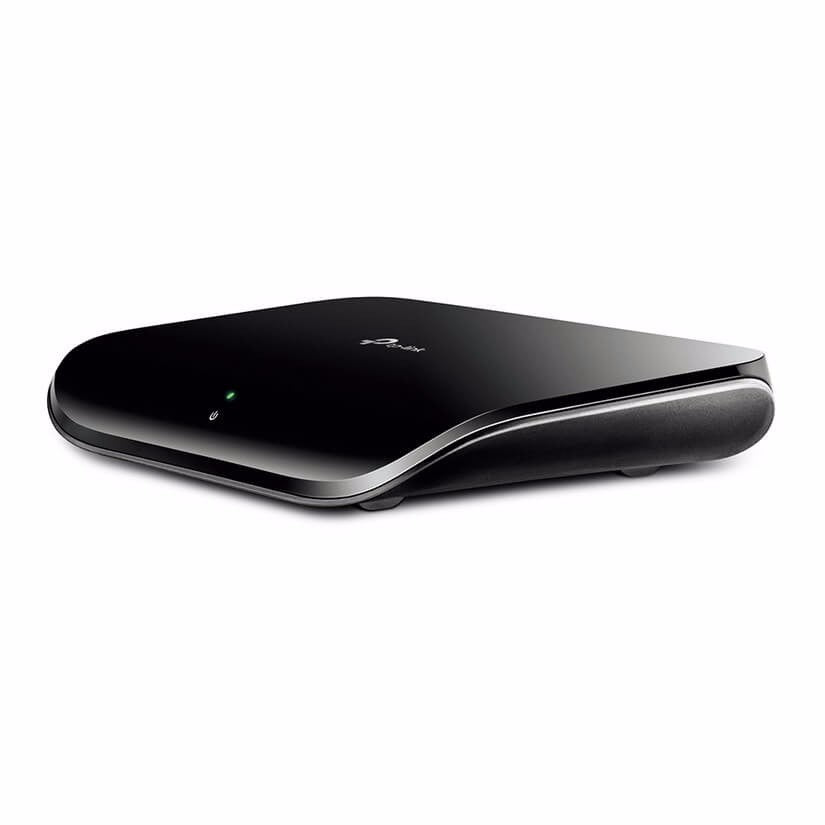

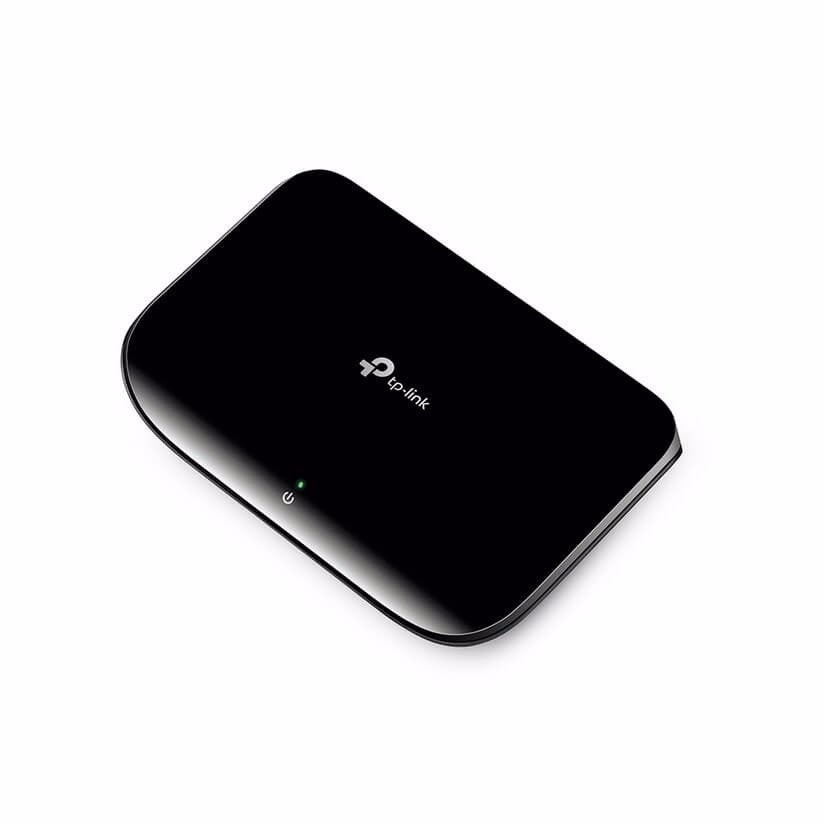

TP-LINK 5-port Desktop Gigabit Switch

Interface

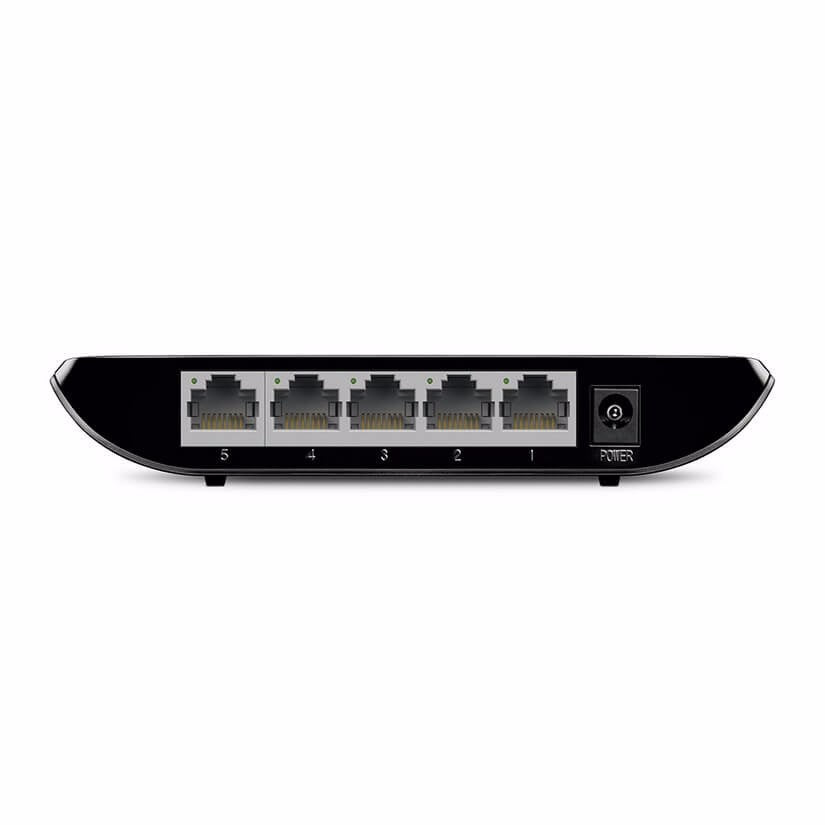

5 10/100/1000Mbps RJ45 Ports

Auto Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

No

External Power Supply

External Power Adapter

(Output: 9VDC / 0.6A)

Dimensions ( W x D x H )

5.5 × 3.5 × 0.9 in.

(140 × 88 × 23 mm)

Max Power Consumption

2.4W

Max Heat Dissipation

8.2 BTU/h

SOFTWARE FEATURES

Transmission Method

Store and Forward

Advanced Functions

Green Technology

802.3x Flow Control

Back Pressure

802.1p/DSCP QoS

OTHERS

Certification

FCC, RoHs

Package Contents

5-Port Gigabit Desktop Switch TL-SG1005D

Power Adapter

Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~60℃   (-40℉~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
