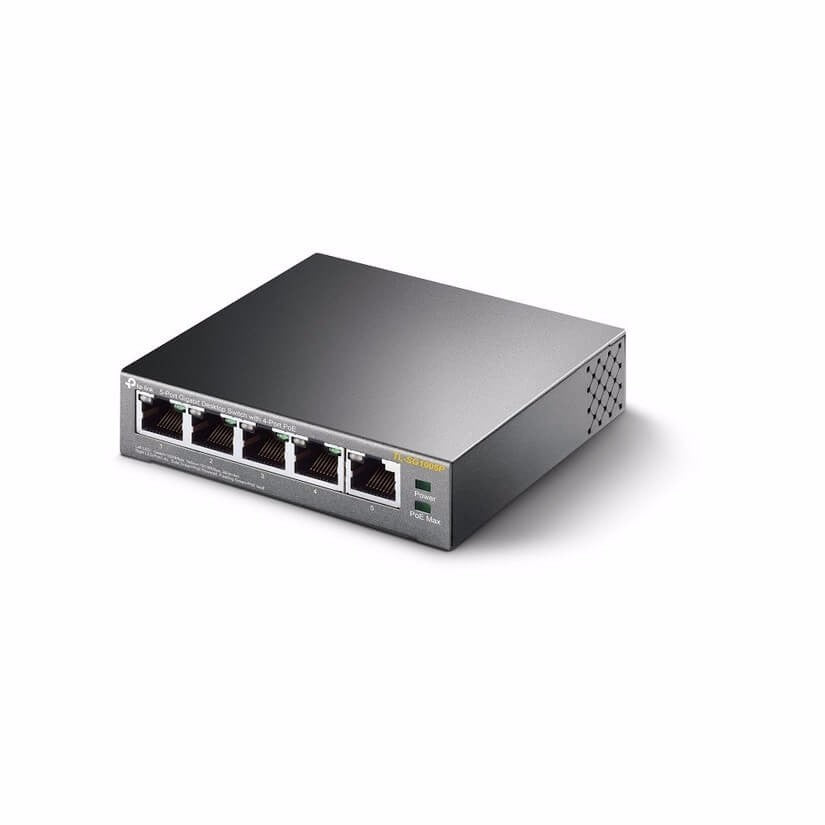

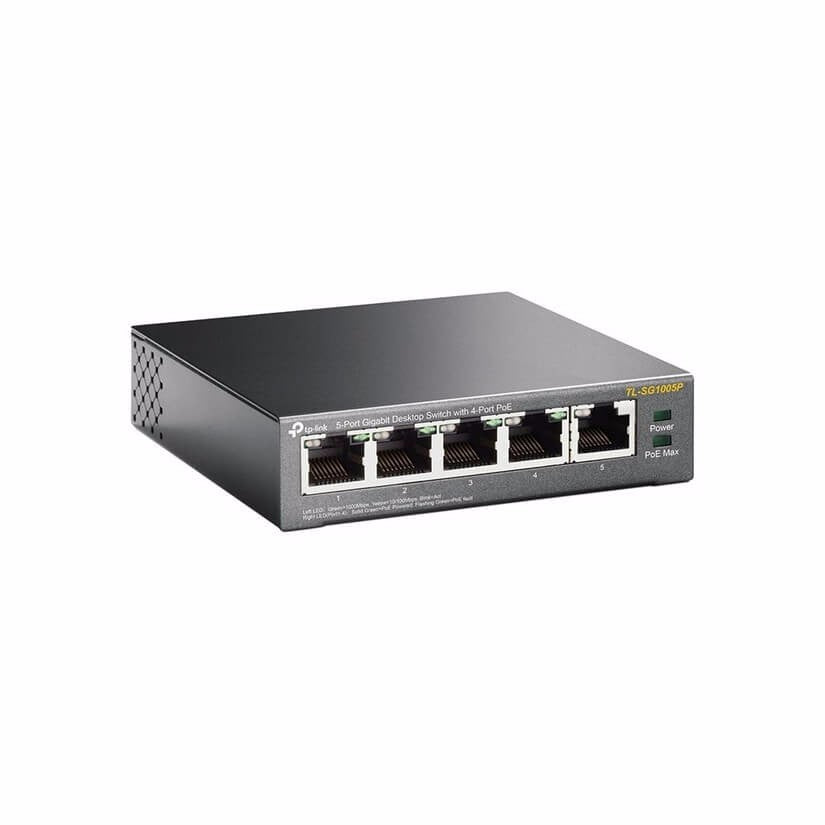

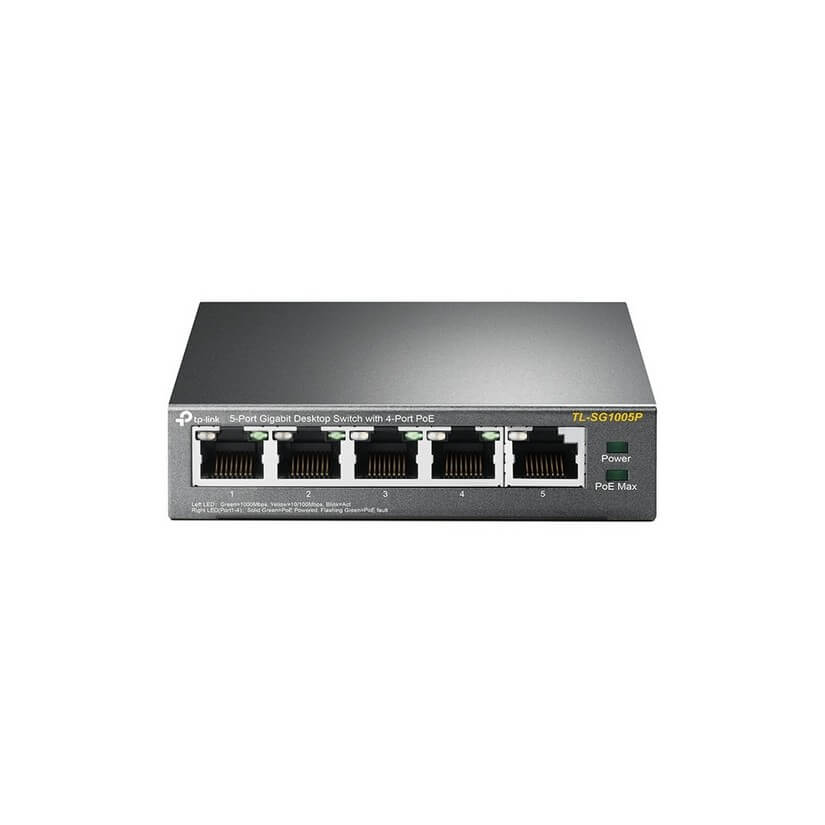

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE

Roll over image to zoom in Click on image to zoom

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE

Name: TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE
Brand: TP
Price: 71.4 AUD
Availability: InStock

Price:

$71.40

Quantity:

Share this product

5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Requires no configuration and installation

HARDWARE FEATURES

Interface:
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

Fan Quantity: Fanless
Power Consumption:
63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)

External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45):
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W

Backbound Bandwidth: 10Gbps
Mac Address Table: 2K
Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS
Package Contents: TL-SG1005P, Power Adapter, Installation Guide
Consumption:
4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)
Environment:
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE

Description
