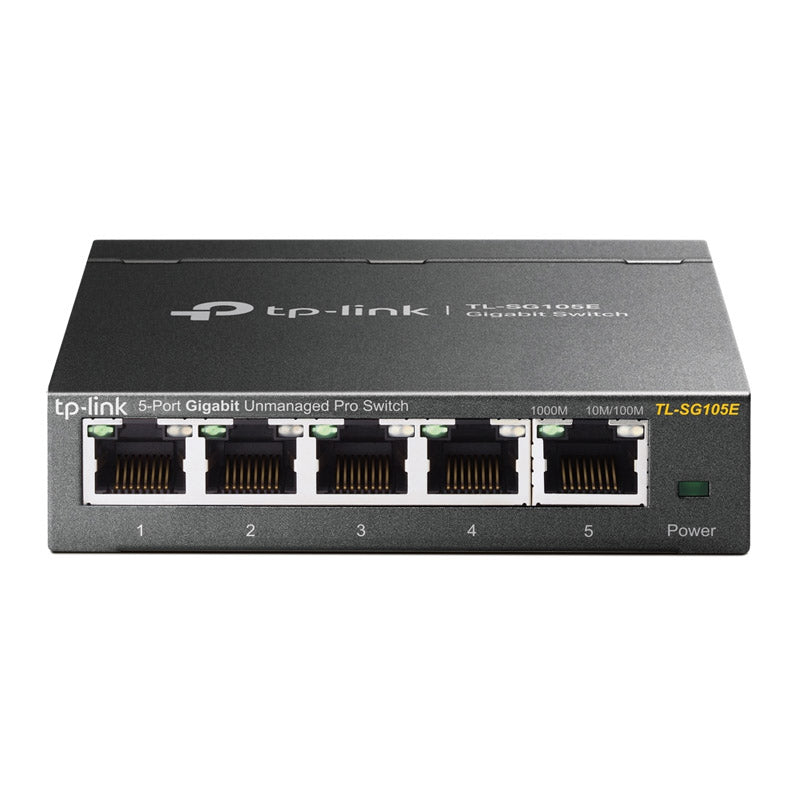

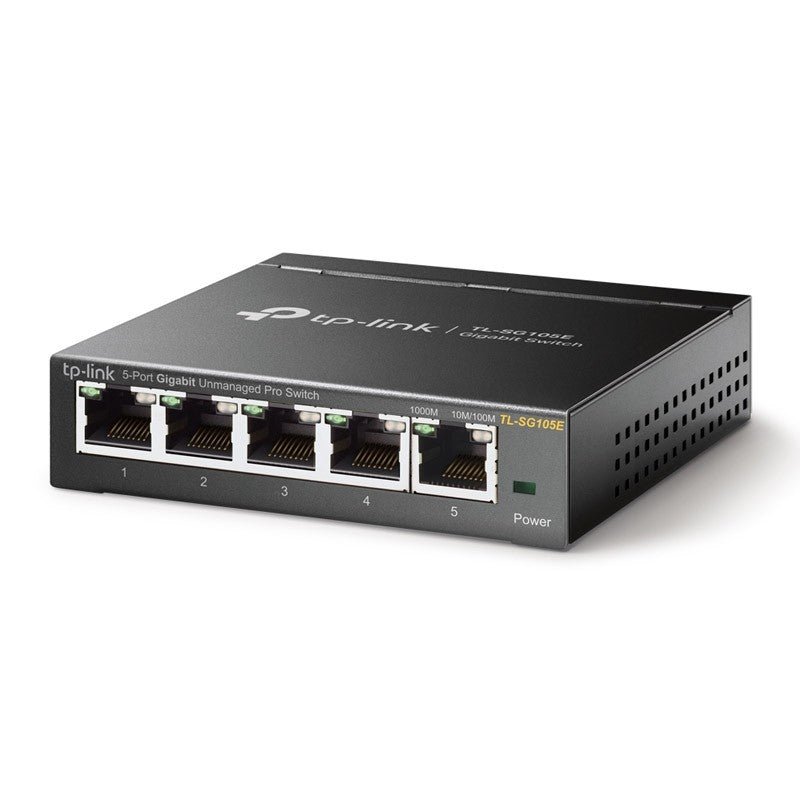

TP-Link 5-Port Gigabit Easy Smart Switch

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE   802.1p

Interface

5 10/100/1000 Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100Ω STP   (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100Ω STP   (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100Ω STP   (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 5 VDC/ 0.6 A)

Dimensions ( W x D x H )

3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm)

Max Power Consumption

2.82 W (220 V/ 50 Hz)

Max Heat Dissipation

9.62 BTU/h

PERFORMANCE

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2 K

Packet Buffer Memory

1 Mb

Jumbo Frame

16 KB

SOFTWARE   FEATURES

Quality of Service

Support Port-based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control

L2 Features

IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG105E
  Power Adapter
  Installation Guide
  Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
  Storage Temperature: -40℃~70℃ (-40℉~158℉)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
