Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
Interface |

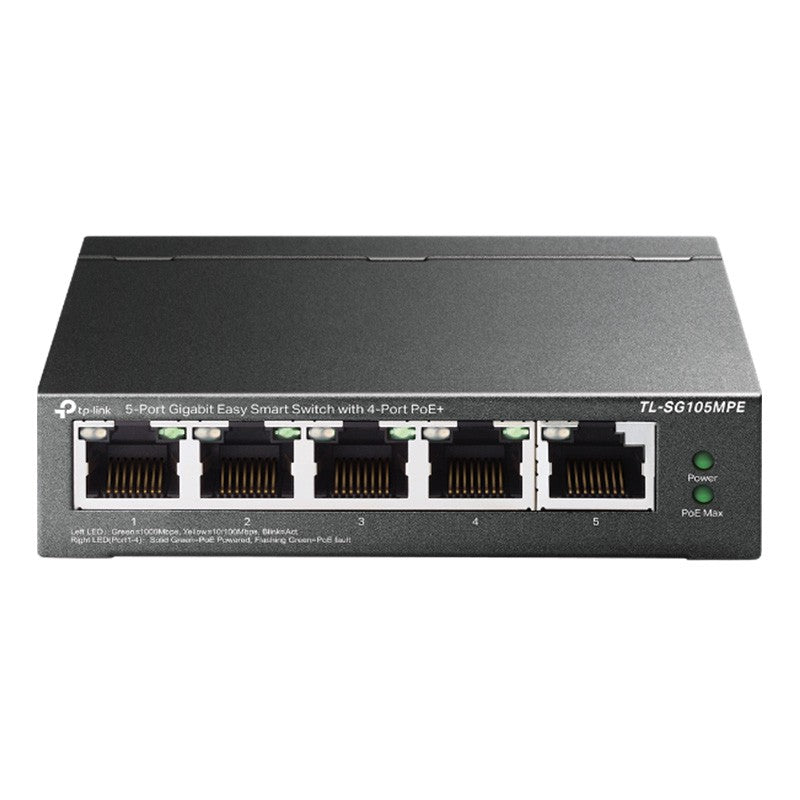

Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity |
Fanless |
Power Supply |
External Power Adapter (Output: 53.5 VDC / 2.43 A) |
PoE Ports (RJ45) |
Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 120 W |
Dimensions ( W x D x H ) |
3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Max Power Consumption |
4.34 W (220 V/50 Hz with no PD connected) 137.01 W (110 V/50 Hz with 120 W PD connected) |
Max Heat Dissipation |
14.8 BTU/h (with no PD connected) 467.17 BTU/h (with 120 W PD connected) |
PERFORMANCE |
|
Switching Capacity |
10 Gbps |
Packet Forwarding Rate |
7.44 Mpps |
MAC Address Table |
2 K |
Packet Buffer Memory |
1 Mb |
Jumbo Frame |
16 KB |
SOFTWARE FEATURES |
|
Quality of Service |
Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management |
Web-based GUI Easy Smart Configuration Utility |
Transmission Method |
Store-And-Forward |
OTHERS |
|
Certification |
FCC, CE, RoHS |
Package Contents |

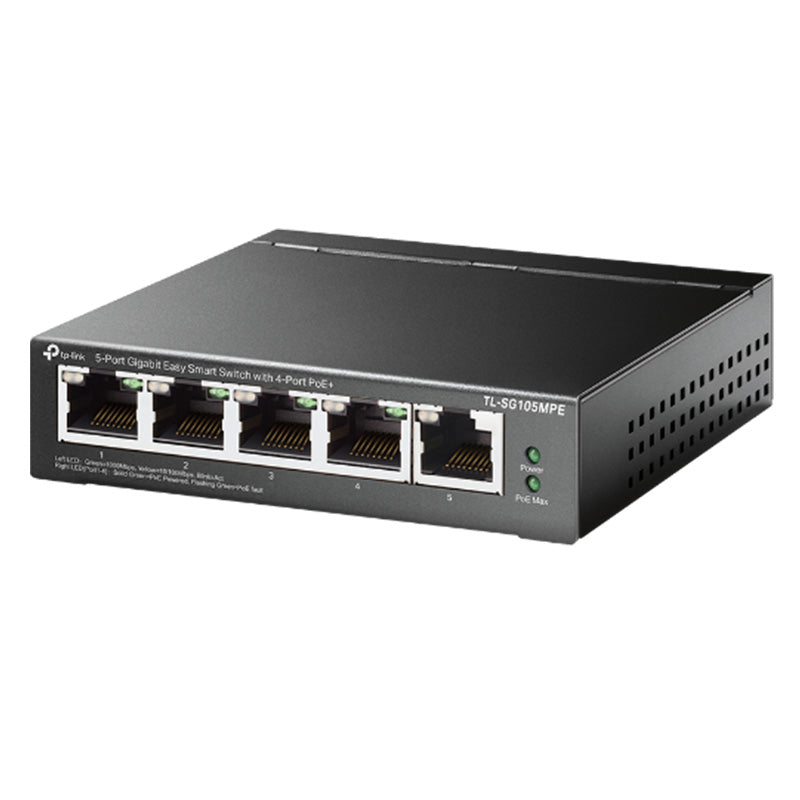

TL-SG105MPE Power Adapter Installation Guide Rubber Feet |
System Requirements |
Microsoft® Windows® for running Utility |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
