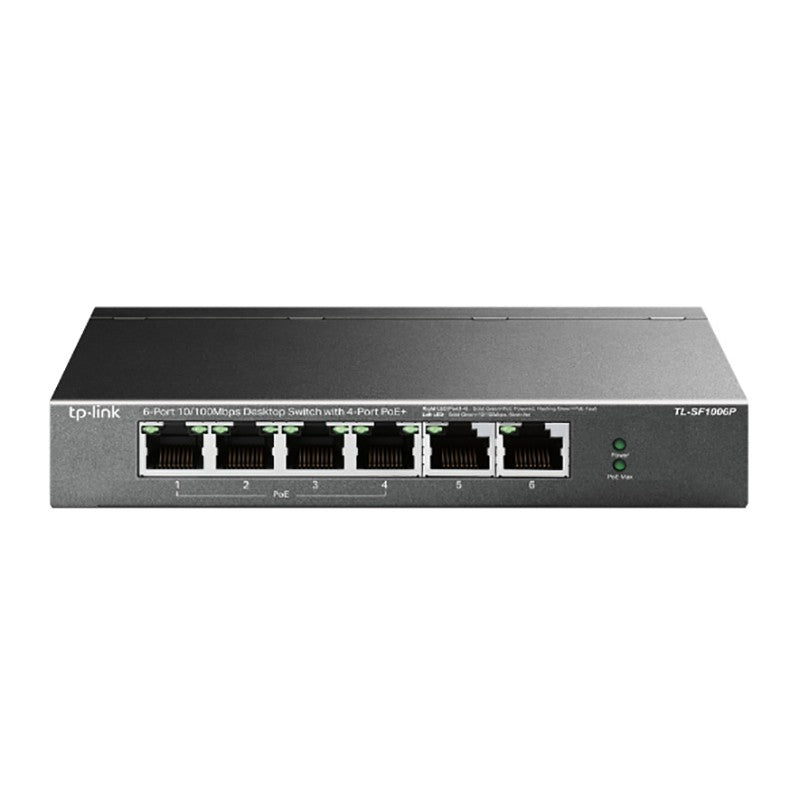

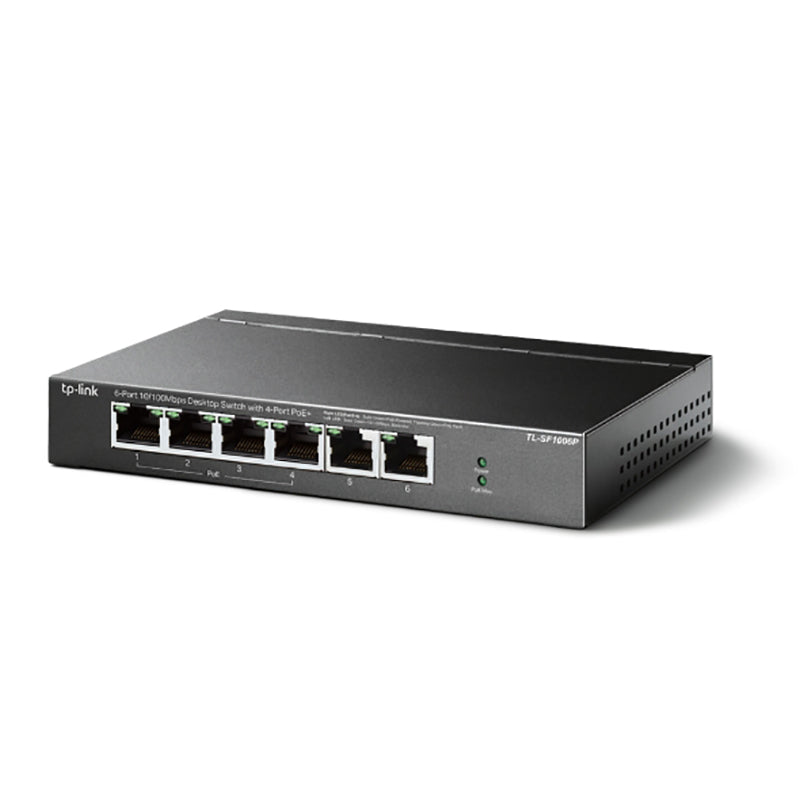

TP-Link 6 Port 10/100Mbps Desktop Switch with PoE

• AUTO   Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP   category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568   100Ω STP (maximum 100m)

• 100BASE-TX: UTP   category 5, 5e cable (maximum 100m)

• EIA/TIA-568   100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security   Lock

Yes

External Power   Supply

External Power   Adapter (Output: 53.5 V DC / 1.31 A)

Packet Forwarding   Rate

0.8928 Mpps

PoE Ports (RJ45)

• Standard: 802.3   af/at compliant

• PoE Ports:   Ports 1–4

• Power Supply:   67 W

Mac Address Table

2K

Jumbo Frame

2 KB

Switching   Capacity

1.2 Gbps

Dimensions ( W x   D x H )

6.2 x 4.0 x 1.0   in (158 x 101 x 25 mm)

Max Power   Consumption

• 1.9 W (220 V /   50 Hz, no PD connected)

• 74 W (220 V /   50 Hz, with 67 W PD connected)

Max Heat   Dissipation

• 6.48 BTU/h(no   PD connected)

• 252.34   BTU/h(with 67 W PD connected)

SOFTWARE FEATURES

Transmission   Method

Store-And-Forward

Advanced   Functions

• Compatible With   IEEE 802.3af/at Compliant PDs

• Extend Mode   Button (Ports 1–4)

• Priority Mode   Button (Ports 1–2)

• Mac Address   Auto-Learning and Auto-Aging

• IEEE802.3x Flow   Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

• TL-SF1006P

• Power Adapter

• Installation   Guide

Environment

• Operating   Temperature: 0–40 ℃ (32–104 ℉)

• Storage   Temperature: -40–70 ℃ (-40–158 ℉)

• Operating   Humidity: 10–90% RH non-condensing

• Storage   Humidity: 5–90% RH non-condensing
