Description

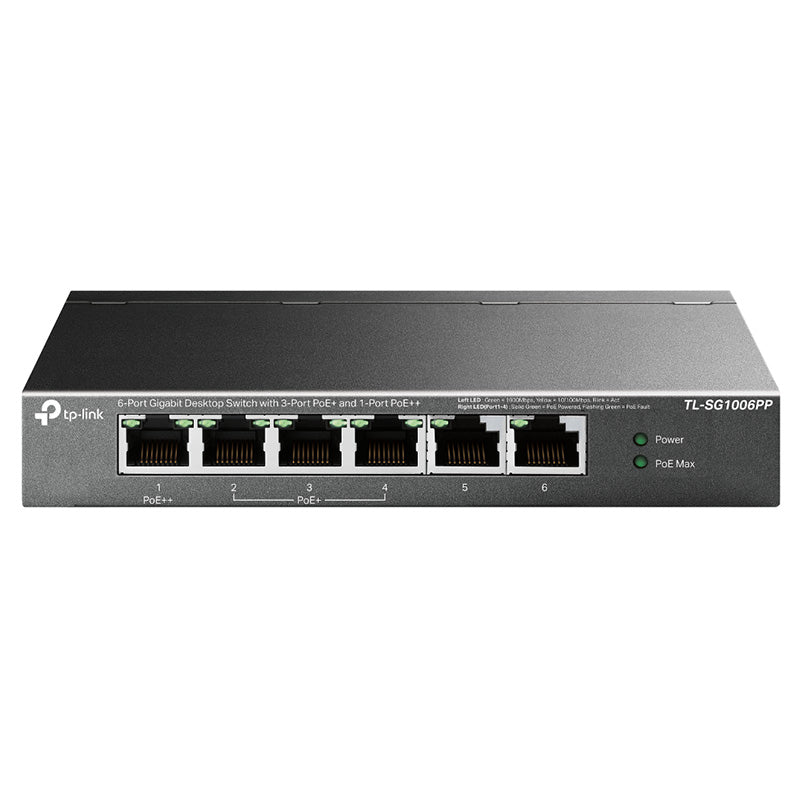

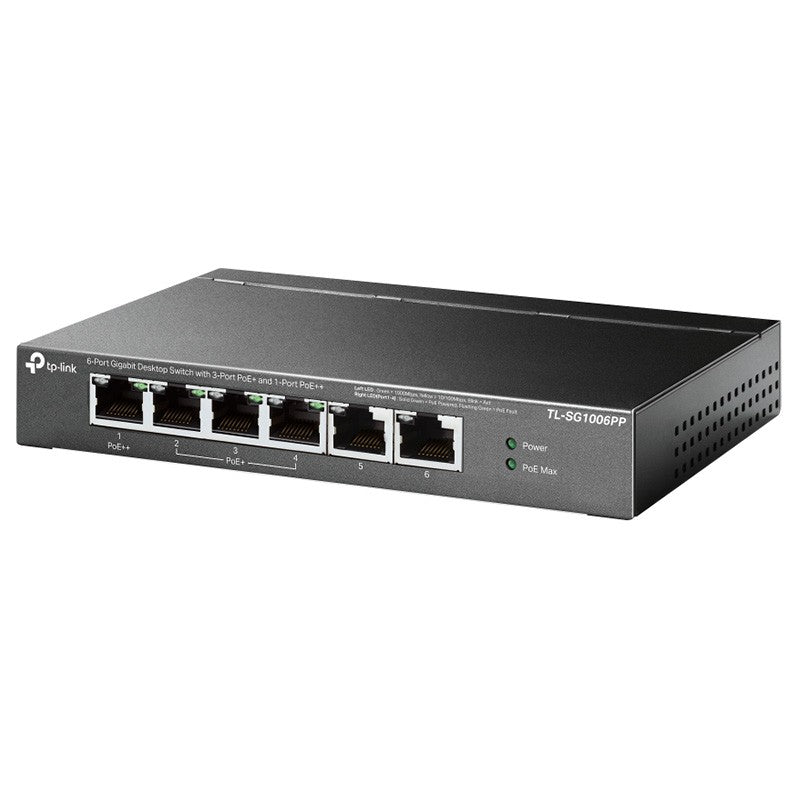

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
With 3 PoE+ and 1 PoE++ ports, transfers data and power on one single cable
Working with IEEE 802.3af/at/bt compliant PDs, expands your network
Supports PoE power up to 60 W for PoE++ port and 30 W for each PoE+ port
Supports PoE power up to 64 W* for all PoE ports
Up to 250 m data and power transmission under Extend Mode** specially designed for surveillance
system
With PoE Auto Recovery, the switch will automatically reboot your dropped or unresponsive
PoE-powered devices connected to port 1–4
Requires no configuration and installation
Fanless Design
Supports desktop and wall mountable installation methods
SPECIFICATIONS:
HARDWARE FEATURES |
|
Interface |
6× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity |
Fanless |
External Power Supply |
External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate |
8.928 Mpps |
PoE Ports (RJ45) |
Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at Power Supply: 64 W |
Mac Address Table |
4K |
Switching Capacity |
12 Gbps |
Dimensions ( W x D x H ) |
6.2x4.0x1.0 in (158x101x25 mm) |
Max Power Consumption |
4.75 W (220/50 Hz. no PD connected) 71.46 W (220/50 Hz. with 64 W PD connected) |
Max Heat Dissipation |
16.20 BTU/h (220/50 Hz. no PD connected) 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
SOFTWARE FEATURES |
|
Advanced Features |
Compatible With IEEE 802.3af/at/bt Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) PoE Auto Recovery (Ports 1-4) |
Transfer Method |
Store-And-Forward |
OTHERS |
|
Certification |
FCC, CE, RoHS |
Package Contents |
TL-SG1006PP Power Adapter Installation Guide |
Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
