Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interface |

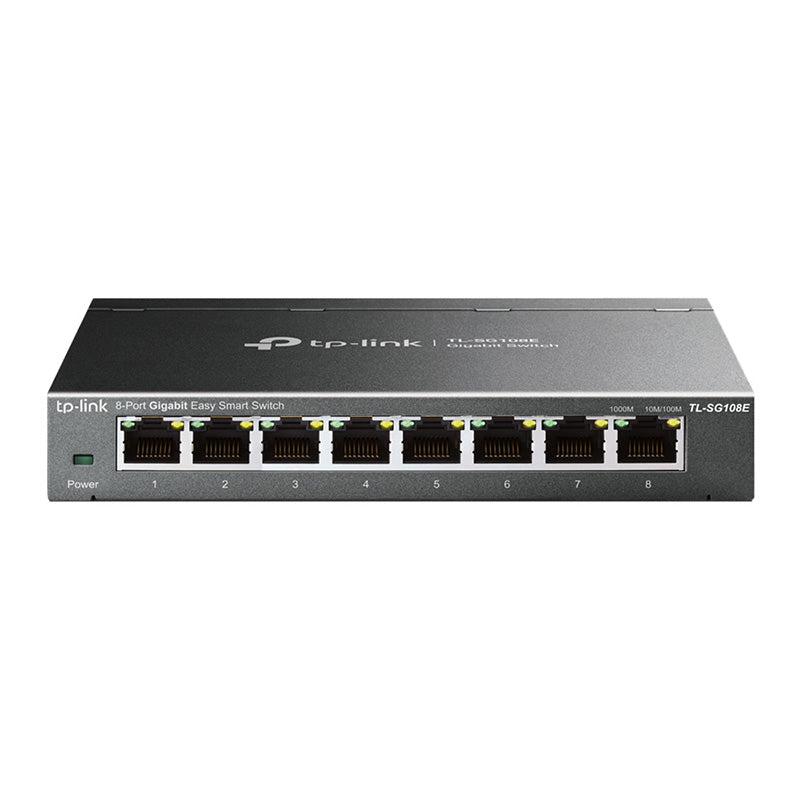

8 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity |
Fanless |
Power Supply |
External Power Adapter(Output: 5VDC/0.6A) |
Dimensions ( W x D x H ) |
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Max Power Consumption |
3.68 W (220 V/ 50 Hz) |
Max Heat Dissipation |
12.55 BTU/h |
PERFORMANCE |
|
Switching Capacity |
16 Gbps |
Packet Forwarding Rate |
11.9 Mpps |
MAC Address Table |
4 K |
Packet Buffer Memory |
1.5 Mb |
Jumbo Frame |
16 KB |
SOFTWARE FEATURES |
|
Quality of Service |
Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Transmission Method |
Store-And-Forward |
OTHERS |
|
Certification |
FCC, CE, RoHS |
Package Contents |

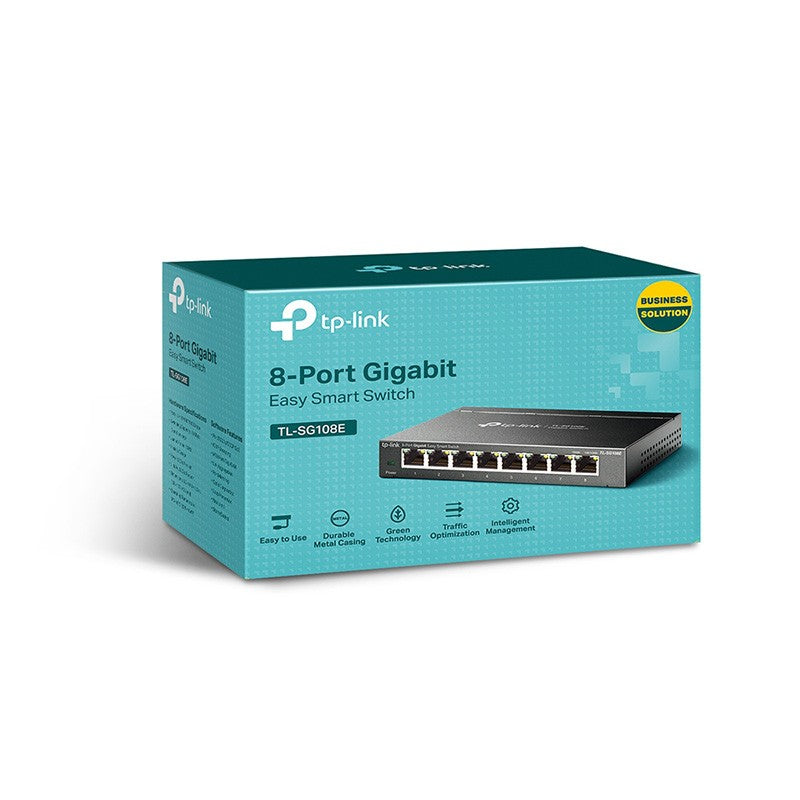

TL-SG108E Power Adapter Installation Guide Rubber Feet |
System Requirements |
Microsoft® Windows® for running Utility |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
