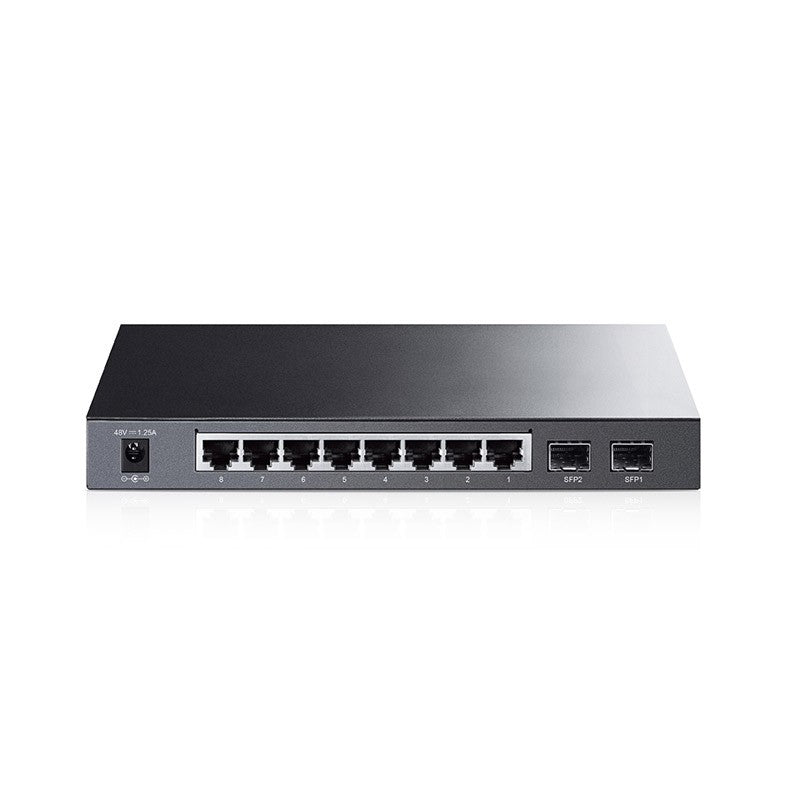

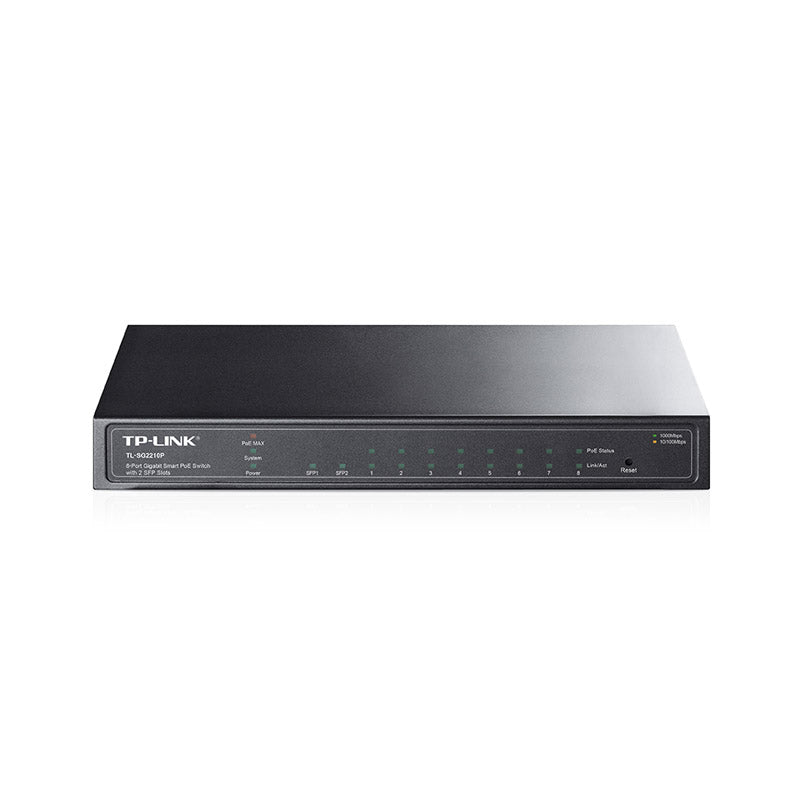

TP-Link 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
TP-Link 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
Roll over image to zoom in Click on image to zoom
TP-Link 8-Port Gigabit Smart PoE Switch with 2 SFP SlotsTP-Link 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

TP-Link 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

TP
Price:
$239.40

Description

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots, PoE power budget of 53W, 8

  • Features 8 PoE+ ports, with total PoE power budget of 58W* and useful PoE power management features

  • Gigabit Ethernet connections on all ports provide full speed of data transferring

  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment

  •  L2/L3/L4 QoS and IGMP snooping optimize voice and video applications

  • WEB/CLI managed modes, SNMP, RMON bring abundant management features

  •  Innovative energy-efficient technology saves up to 50% of power consumption



SPECIFICATIONS:

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE     802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity

Fanless

Power Supply

100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)

Power Consumption

Maximum (PoE on): 75.3W (220V/50Hz)
Maximum (PoE off): 10.5W (220V/50Hz)

PoE Ports (RJ45)

Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 58W*

Dimensions ( W x D x H )

8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

PERFORMANCE

Bandwidth/Backplane

20Gbps

Packet Forwarding Rate

14.88Mpps

MAC Address Table

8k

Packet Buffer Memory

512KB

Jumbo Frame

9216 Bytes

SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN

VLAN

Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)

Access Control List

L2～L4 package filtering based on source and   destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based

Security

SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius Authentication、IP-Mac-Port-VID Bindin ARP Inspection、DHCP Snooping、DoS Defend

L2 Switching Features

IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP(LLDP-MED)

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG2210P
Power Adapter
Installation Guide
Resource CD
Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
