Description

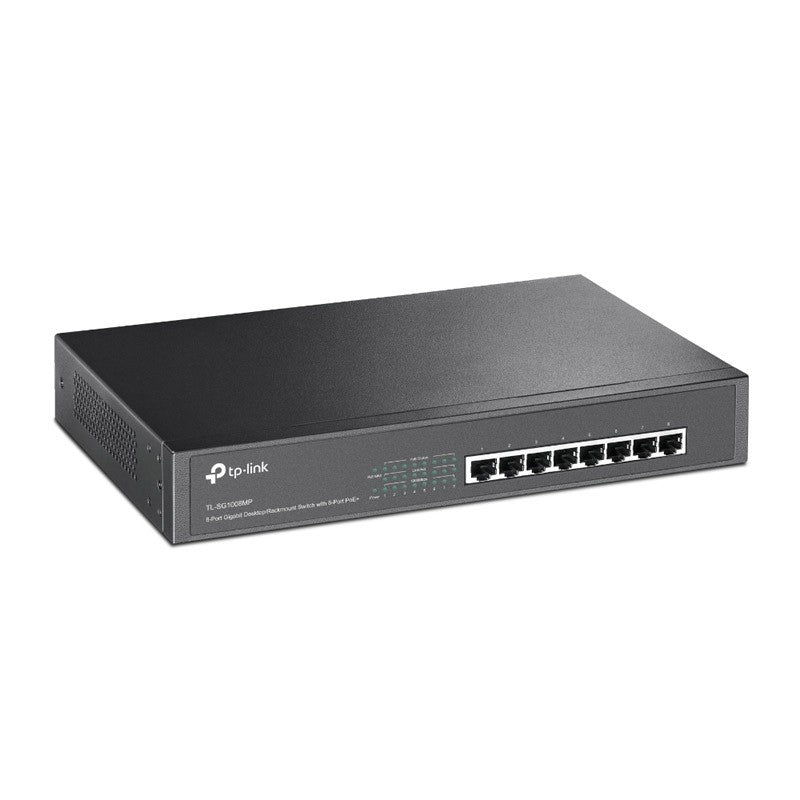

TP-Link 8 Port PoE+ Gigabit Desktop Rackmount Switch (TL-SG1008MP)
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
Innovative energy-efficient technology reduces power consumption
Rack mountable with included rack mount bracket
Total PoE power budget up to 126W
Plug and play design, no configuration required
SPECIFICATIONS:
HARDWARE FEATURES | |
Interface |
8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan quantity |
1 |
Physical security lock |
No |
Power supply |
100-240VAC, 50/60Hz |
POE+ Ports(RJ45) |
Standard: 802.3at/af (30W) PoE+ Ports: 8 Ports Total PoE Budget: 126W |
Backbound bandwidth |
16Gbps |
MAC address table |
4K |
Buffer size |
1.5Mbits |
Dimensions ( W X D X H ) |
11.6 × 7.1 × 1.7 in. |
Mounting |
13" and 19" 1U rack mountable |
Max power consumption |
9.9W(no PD load) |
Max heat dissipation |
33.7BTU/h(no PD load) |
SOFTWARE FEATURES | |
Advanced features |
Compatible With IEEE 802.3af/at Compliant power devices (PD) |
Transfer method |
Store-And-Forward |
OTHERS | |
Certification |
FCC, RoHS |
Package contents |
TL-SG1008MP |
Consumption |
9.5 watts (max. no PD connected) |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
