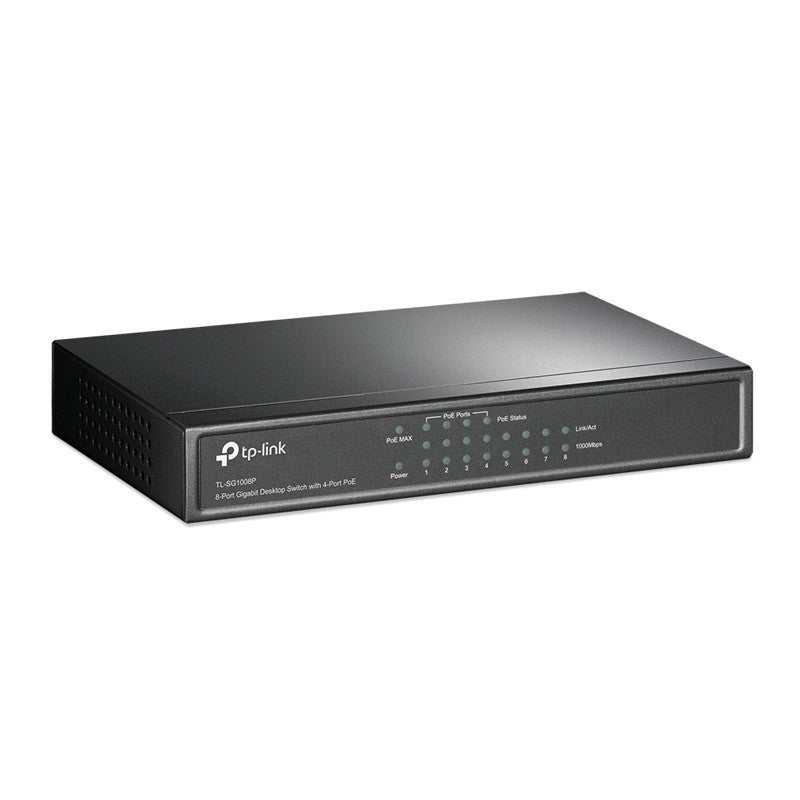

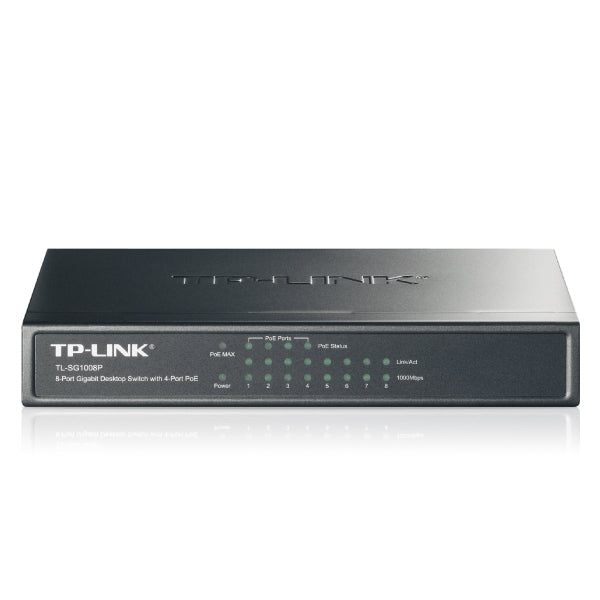

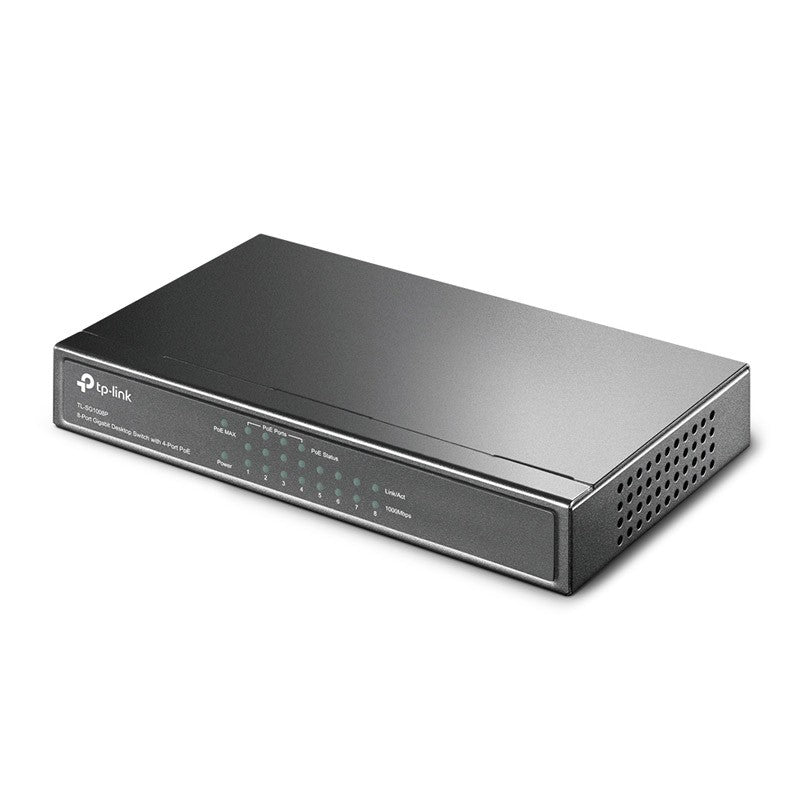

TP-LINK 8-port POE Gigabit Switch

Interface

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network media

10BASE-T: UTP category 3, 4, 5 cable (maximum   100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan quantity

Fanless

Power consumption

65.2W (max. with 55w PoE device connected)

5.5W (max. no PoE device connected)

External power supply

External Power Adapter(Output: 48VDC / 1.25A)

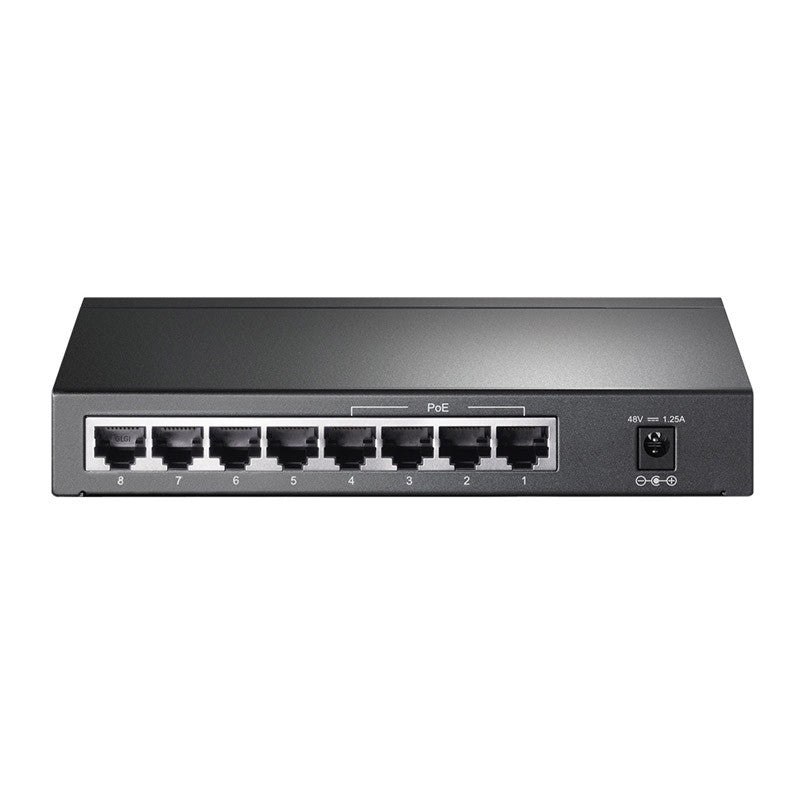

POE ports (RJ45)

Standard: 802.3 af compliant

PoE Ports: Port1- Port4

Power Supply: 55W

Backbound bandwidth

16Gbps

MAC address table

4K

Dimensions ( W X D X H )

6.7*3.9*1.1 in. (171*98*27 mm)

Max power consumption

5.49W(220/50Hz. no PD connected)

65.24W(220/50Hz. with 55W PD connected)

Max heat dissipation

18.73BTU/h(no PD connected)

222.60BTU/h(with 55W PD connected)

SOFTWARE FEATURES

Transmission method

Store-And-Forward

Advanced functions

Compatible With IEEE 802.3af Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

EEE802.3x Flow Control

802.1p/DSCP QoS

OTHERS

Certification

CE, FCC, RoHS

Package contents

TL-SG1008P, Power Adapter, Installation Guide

Consumption

65.2W (max. with 55w PoE device connected)

5.5W (max. no PoE device connected)

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
