Description

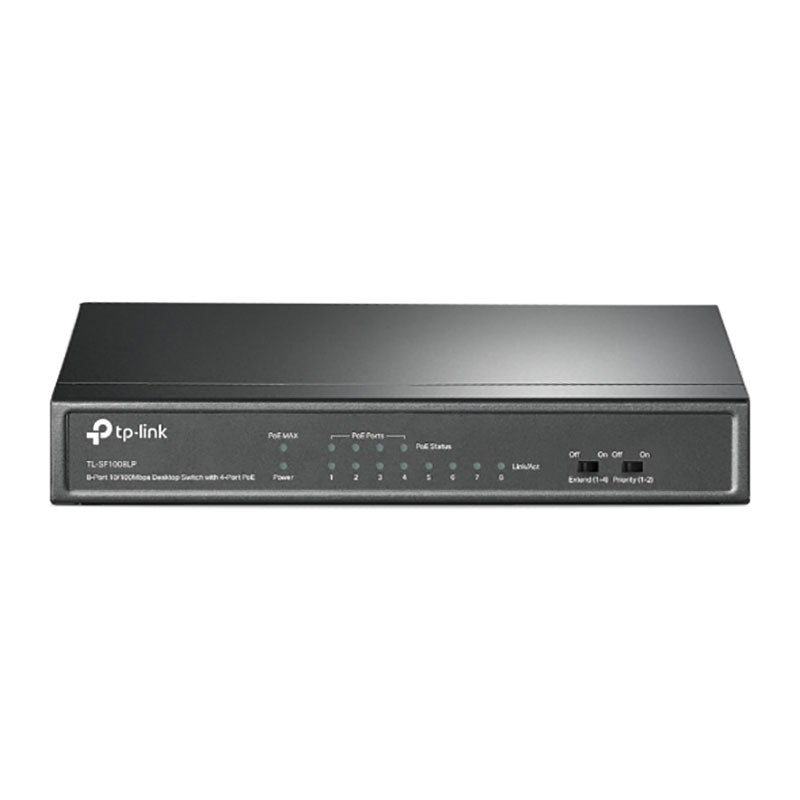

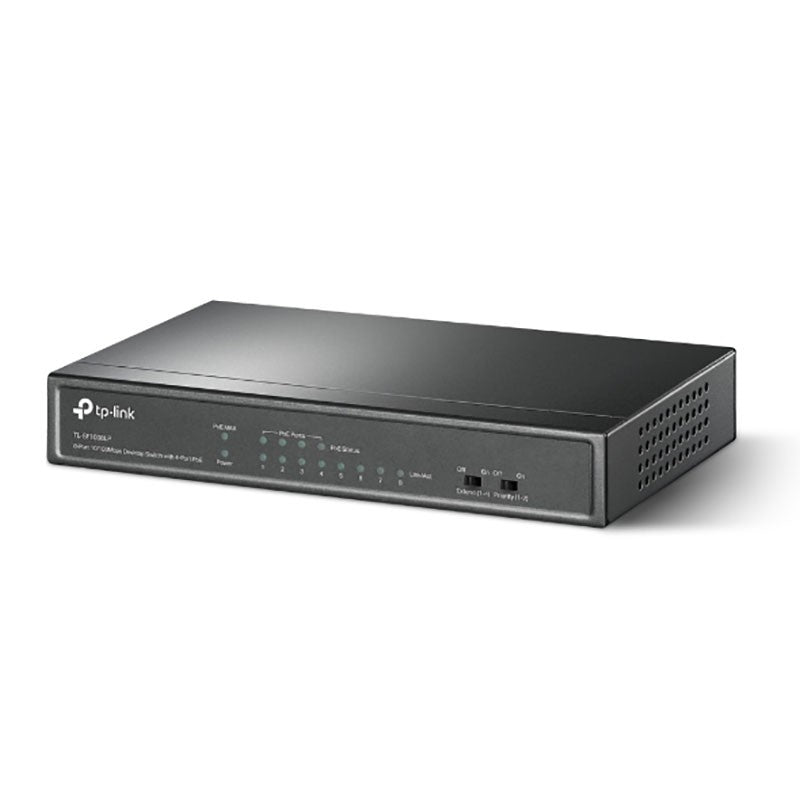

TP-Link 8 Port Unmanaged Desktop Switch (TL-SF1008LP)
8× 10/100 Mbps RJ45 ports
4× PoE ports transfer data and power on individual cables
Works with IEEE 802.3af compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 41 W for all PoE ports*
Plug and play with no configuration required
SPECIFICATIONS:
HARDWARE FEATURES | |
Interface |
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) |
Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
Fan Quantity |
Fanless |
Physical Security Lock |
Yes |
External Power Supply |
External Power Adapter (Output: 53.5 V DC / 0.81 A) |
Packet Forwarding Rate |
1.1904 Mpps |
PoE Ports (RJ45) |
• Standard: 802.3 af compliant |
Mac Address Table |
2K |
Jumbo Frame |
2 KB |
Switching Capacity |
1.6 Gbps |
Dimensions ( W x D x H ) |
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
Max Power Consumption |
• 2.2 W (220 V/ 50 Hz. no PD connected) |
Max Heat Dissipation |
• 7.5 BTU/h(no PD connected) |
SOFTWARE FEATURES | |
Transmission Method |
Store-And-Forward |
Advanced Functions |
• Compatible With IEEE 802.3af Compliant PDs |
OTHERS | |
Certification |
FCC, CE, RoHS |
Package Contents |
• TL-SF1008LP |
Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) |
