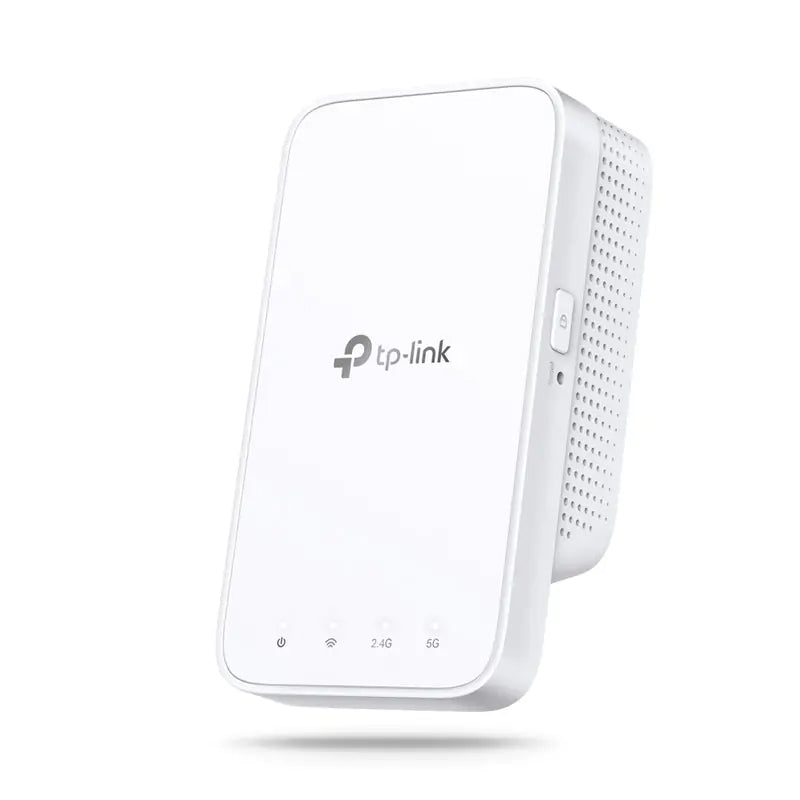

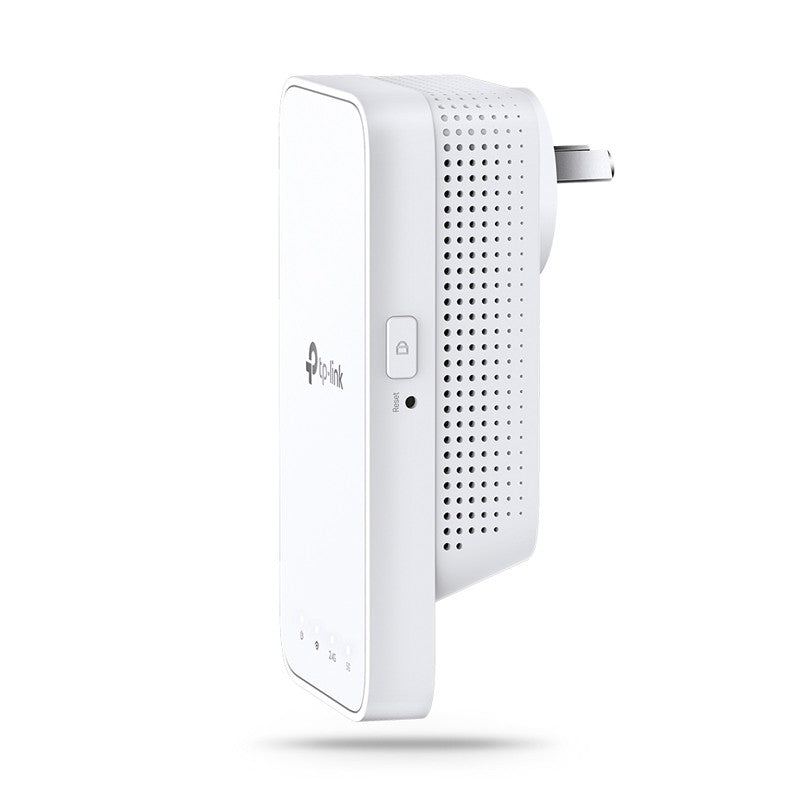

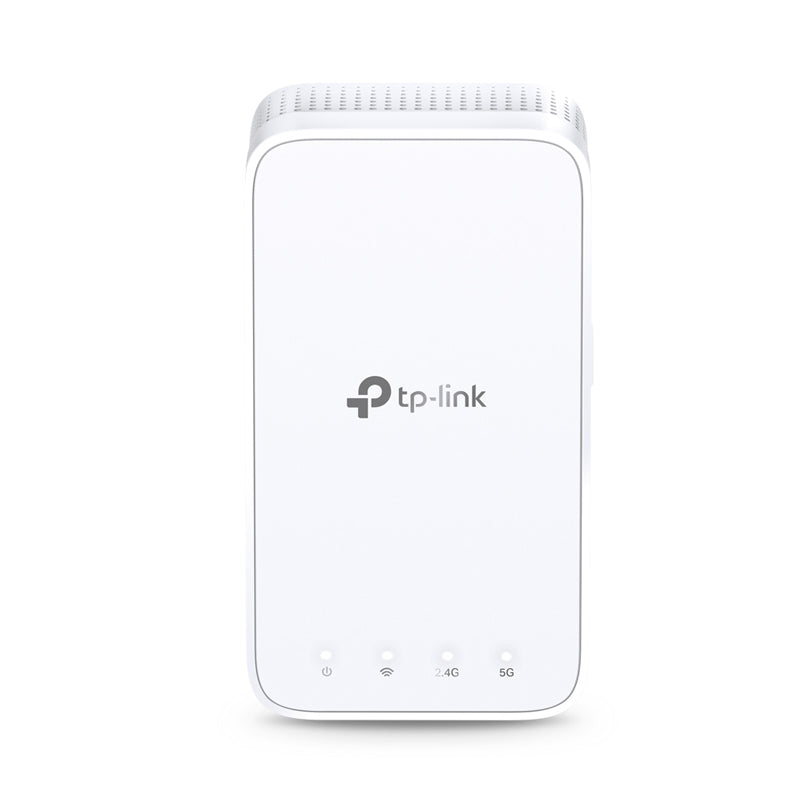

TP-Link RE300 AC1200 Wi-Fi Range Extender w OneMesh
Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps)*1 for more stable wireless experience.
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI.
-
Works with any Wi-Fi router or wireless access point.*2
Specifications
PLUG TYPE |
AU |
STANDARDS AND PROTOCOLS |
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
BUTTON |
WPS Button, Reset Button |
POWER CONSUMPTION |
7.3W（max power consumption） |
DIMENSIONS ( W X D X H ) |
4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm) |
FREQUENCY |
2.4GHz & 5GHz(11ac) |
SIGNAL RATE |
5 GHz:Up to 867 Mbps 2.4 GHz:Up to 300 Mpbs |
WIRELESS FUNCTIONS |
Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control LED Control Domain Login Function |
WIRELESS SECURITY |
64/128-bit WEP WPA-PSK / WPA2-PSK |
TRANSMISSION POWER |
<17dBm(2.4GHz) <17dBm(5GHz) |
CERTIFICATION |
CE, FCC, RoHS |
PACKAGE CONTENTS |
· AC1200 OneMesh Wi-Fi Range Extender RE300 · Quick Installation Guide |
BOX DIMENSIONS (W X D X H) |
6.2 x 4.0 x 3.5 in. (156.5 x 101.5 x 89 mm) |
SYSTEM REQUIREMENTS |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
ENVIRONMENT |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
