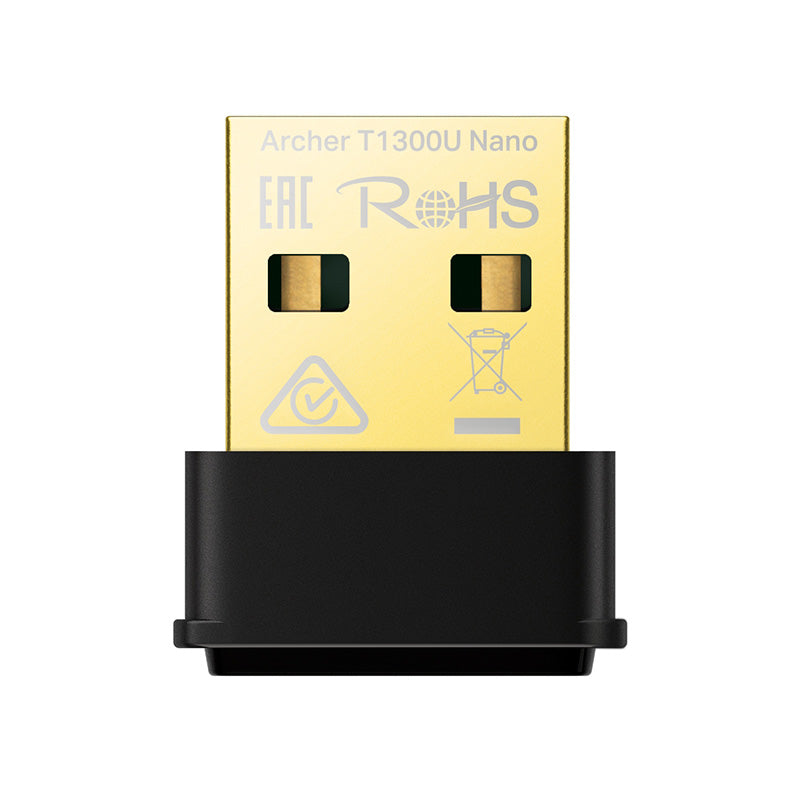

TP-Link AC1300 Nano Wireless MU-MIMO USB Adapter

Interface

USB 2.0

LED

Status

Dimensions

0.78 × 0.62 × 0.29 in (19.85 × 15.7 × 7.39 mm)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz

Frequency

2.4 GHz, 5 GHz

Wireless Modes

Ad-Hoc / Infrastructure Mode

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK, WPA3-SAE

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification

FCC, CE, RoHS

Package Contents

AC1300 Nano Wireless MU-MIMO USB Adapter Archer T1300U Nano

Quick Installation Guide

Resource CD

System Requirements

Supported operating systems include Windows 11/10/8.1/8/7, Mac OS 10.15 and earlier

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Notes

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and  obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.

*To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can find our latest drivers in the download center at tp-link.com/en/download-center.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
