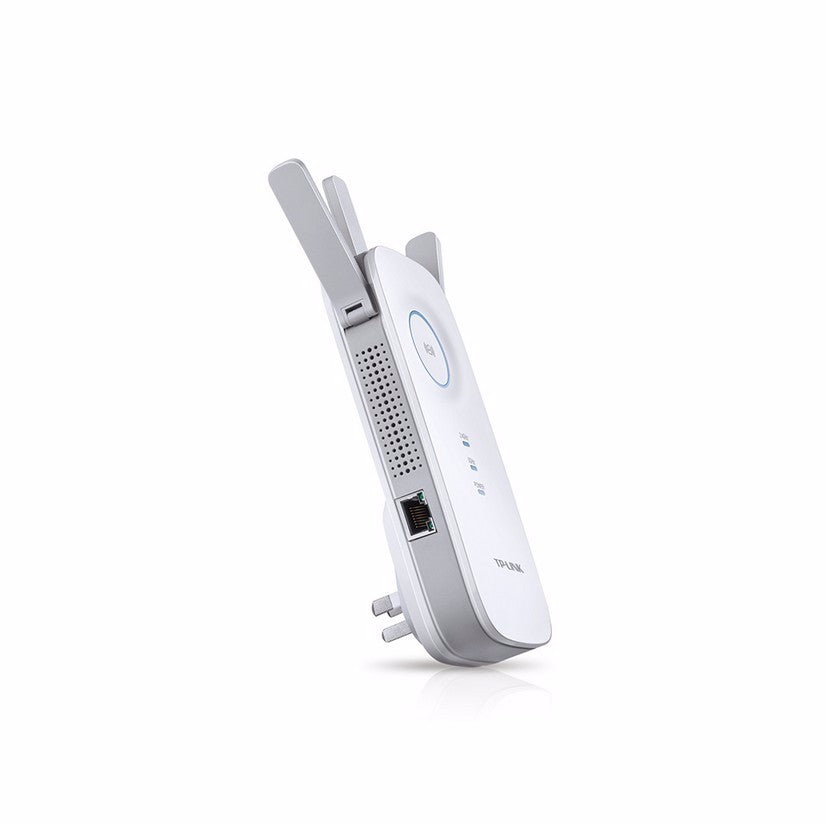

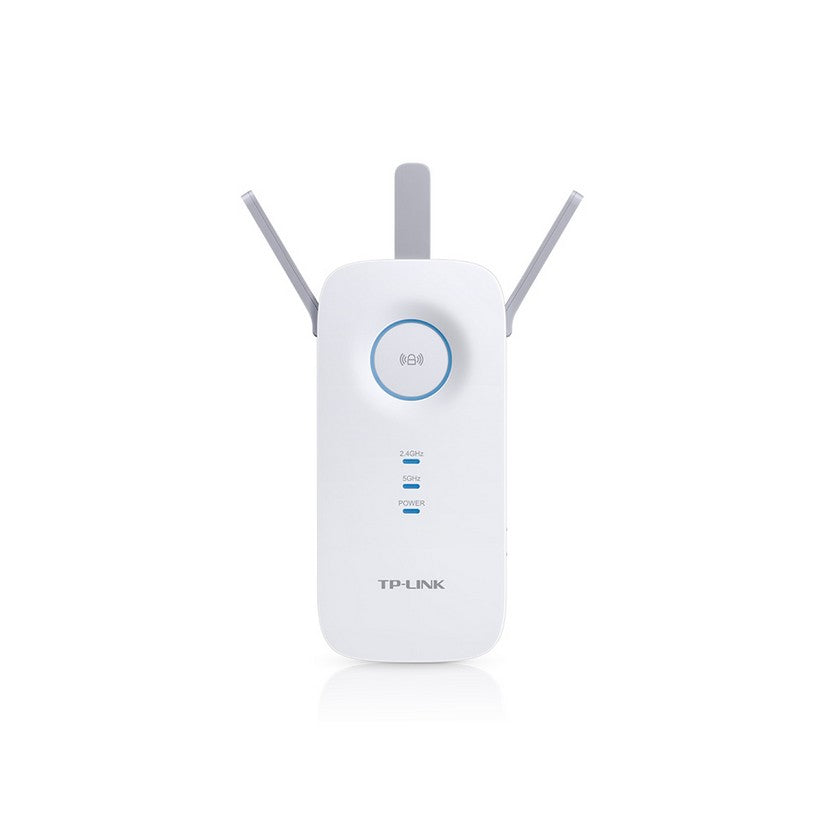

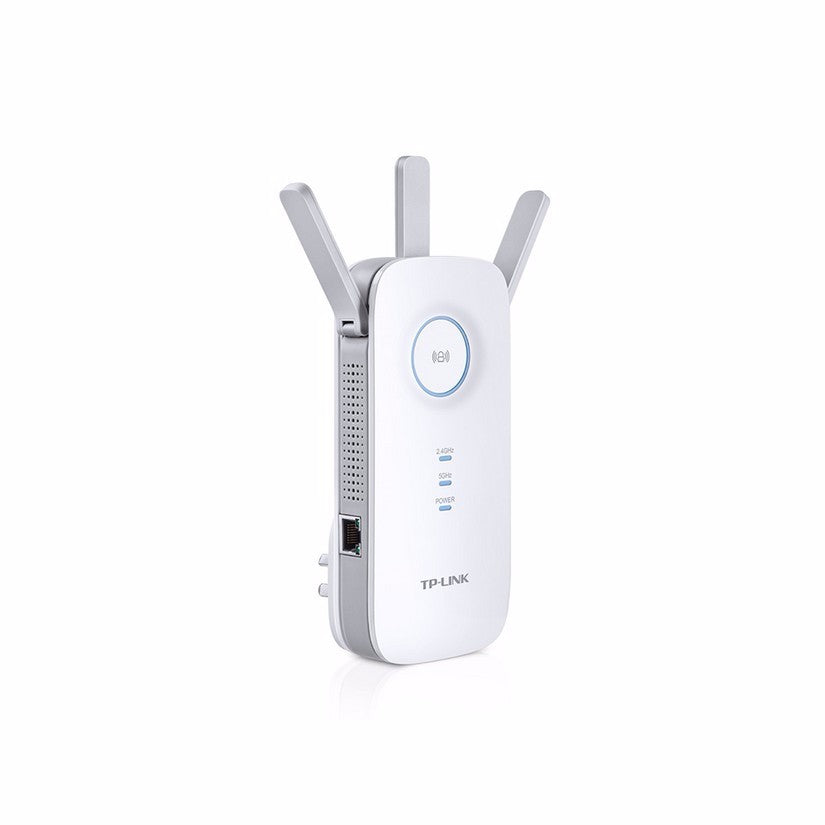

TP-Link AC1750 Wi-Fi Range Extender

Plug type

AU

Standards and protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface

1 * 10/100/1000M Ethernet Port (RJ45)

Button

RE (Range Extender) Button, Reset Button, LED Button, Power Button

Power consumption

10W（max power consumption）

Dimensions ( w x d x h )

6.4x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)

Antenna

3* external

WIRELESS FEATURES

Standards and protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface

1 * 10/100/1000M Ethernet Port (RJ45)

Frequency

2.4GHz & 5GHz(11ac)

Signal rate

5GHz:Up to 1300Mbps

2.4GHz:Up to 450Mpbs

Reception sensitivity

5GHz:

11a 6Mbps:-93dBm@10% PER

11a 54Mbps: -76dBm@10% PER

11ac HT20 mcs8: -68dBm@10% PER

11ac HT40 mcs9: -64dBm@10% PER

11ac HT80 mcs9: -61dBm@10% PER

2.4GHz:

11g 54M: -77dBm@10% PER

11n HT20 mcs7: -73dBm@10% PER

11n HT40 mcs7: -70dBm@10% PER

Wireless modes

Range Extender/Access Point

Wireless functions

Wireless Statistic

Concurrent Mode Boost Both 2.4G/5G WiFi Band

Access Control

LED control

Domain Login Function

Wi-Fi Coverage

Wireless security

64/128-bit WEP

WPA-PSK / WPA2-PSK

Transmission power

<20dBm(2.4GHz)

<23dBm(5GHz)

OTHERS

Certification

CE, FCC, RoHS

Package contents

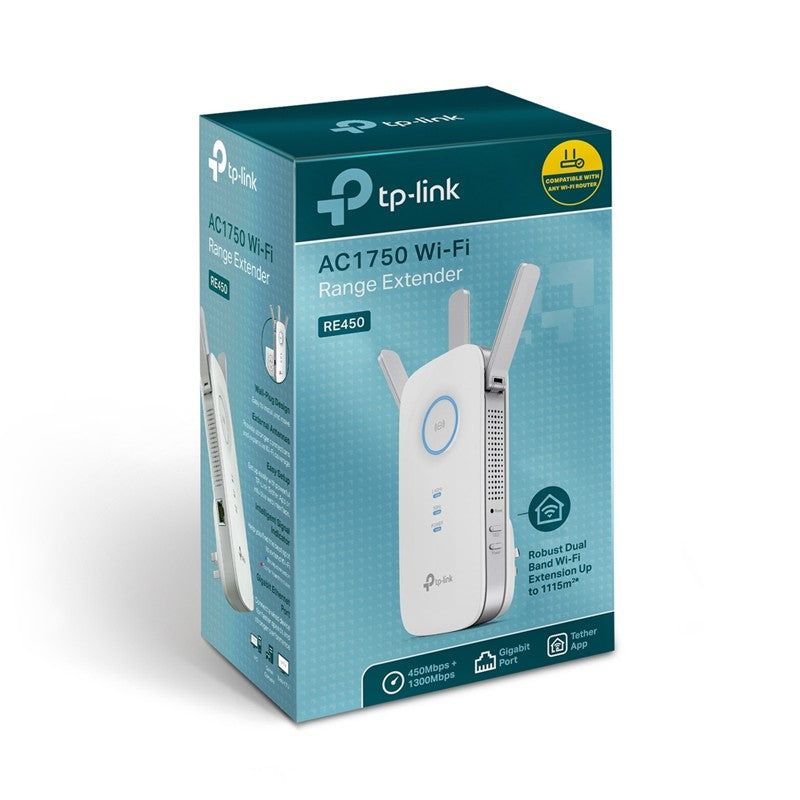

AC1750 Wi-Fi Range Extender RE450

Quick Installation Guide

Box dimensions (w x d x h)

7.9 x 4.9 x 3.4in. (202x 125 x 86mm)

System requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10,   Mac® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0°C~30°C (32°F~86°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
