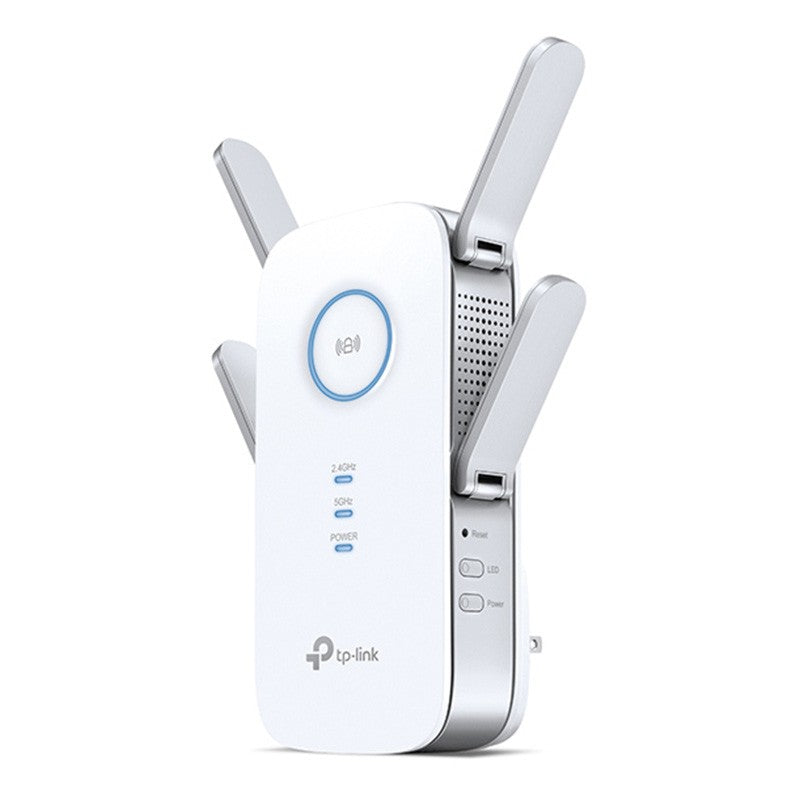

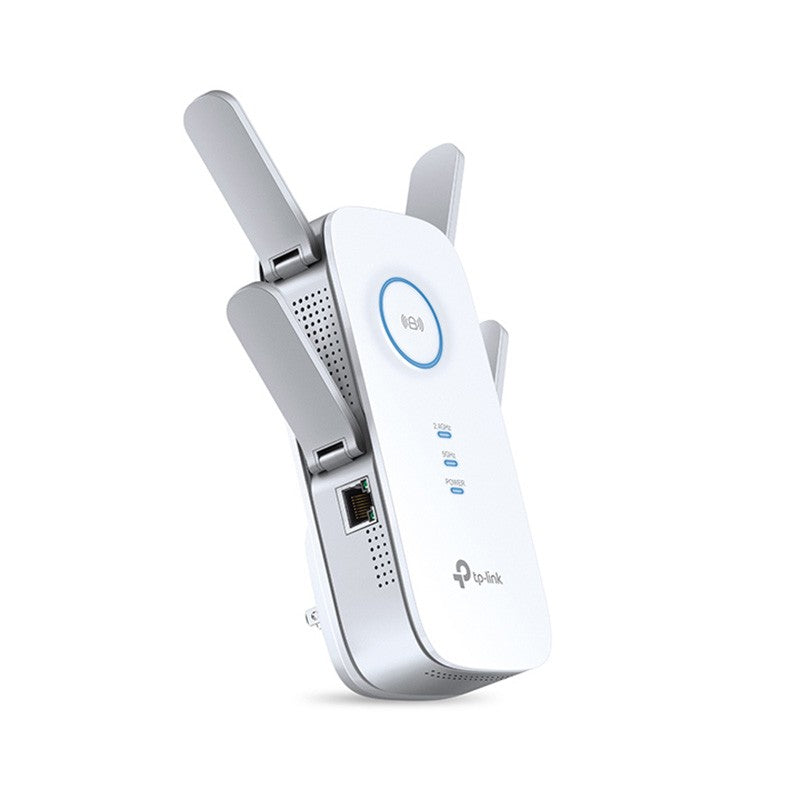

TP-Link AC2600 Wi-Fi Range Extender

Working Modes

Range Extender/Access Point

HARDWARE FEATURES

Plug Type

AU

Standards and Protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

Interface

1x 10/100/1000M Ethernet Port (RJ45)

Ports

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button, LED Button, Power Button

Input Power

100-240V~50/60Hz

Power Consumption

12W（max power consumption）

Dimensions ( W x D x H )

6.4x 3.4 x 1.6 in. (163 x 86 x 40mm)

Antenna

4x external

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz & 5GHz(11ac)

Signal Rate

5GHz:Up to 1733Mbps

2.4GHz:Up to 800Mpbs

Reception Sensitivity

5GHz：

11a 6Mbps:-96dBm@10% PER

11a 54Mbps: -78dBm@10% PER

11ac HT20 mcs8: -69dBm@10% PER

11ac HT40 mcs9: -66dBm@10% PER

11ac HT80 mcs9: -63dBm@10% PER

2.4GHz:

11g 54M: -79dBm@10% PER

11n HT20 mcs7: -77dBm@10% PER

11n HT40 mcs7: -74dBm@10% PER

Wireless Modes

Range Extender/Access Point

Wireless Functions

Wireless Statistic

Concurrent Mode boost both 2.4G/5G WiFi band

High Speed Mode for great speed for HD Gaming and video

Access Control

LED Control

Domain Login Function

Wireless Security

64/128-bit WEP

WPA-PSK / WPA2-PSK

Transmission Power

<20dBm(2.4GHz)

<23dBm(5GHz)

OTHERS

Certification

FCC, RoHS

Package Contents

AC2600 Wi-Fi Range Extender RE650

Quick Installation Guide

Box Dimensions (W X D X H)

7.9 x 4.9 x 3.8in. (202x 125 x 97mm)

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
