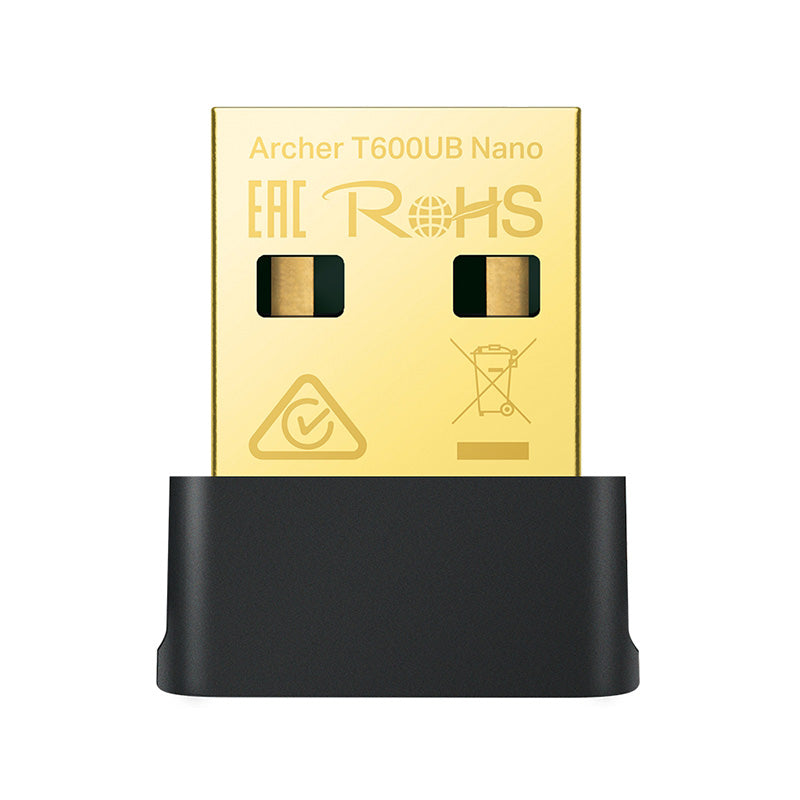

TP-Link AC600 Nano Wi-Fi Bluetooth USB Adapter

Interface

USB 2.0

Dimensions ( W x D x H )

15.7*7.4*19.2mm

Antenna Type

Omni Directional

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac, IEEE 802.11a,

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

5GHz

2.4GHz

Signal Rate

5GHz

11ac: Up to 433Mbps(dynamic)

11n: Up to 150Mbps(dynamic)

11a: Up to 54Mbps(dynamic)

2.4GHz

11n: Up to 200Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity

5GHz：

11a 6Mbps: -90dBm

11a 54Mbps: -73dBm

11n HT20 MCS0: -89dBm

11n HT20 MCS7: -70dBm

11n HT40 MCS0: -86dBm

11n HT40 MCS7: -67dBm

11ac VHT80 MCS0: -82dBm

11ac VHT80 MCS9: -56dBm

2.4GHz:

11b 1Mbps: -96dBm

11b 11Mbps: -88dBm

11g 6Mbps: -89dBm

11g 54Mbps: -74dBm

11n HT20 MCS0: -89dBm

11n HT20 MCS7: -72dBm

11n HT40 MCS0: -86dBm

11n HT40 MCS7: -66dBm

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

WPA/WPA2/WPA3 encryption standards

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification

CE, FCC, RoHS

Package Contents

AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T600UB Nano

Resource CD

Quick Installation Guide

System Requirements

WiFi: Win 11/10/8.1/8/7

Bluetooth: Win 11/10/8.1/7

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃   (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Notes

*Some features may require software upgrades or subscriptions.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
