Description
SPECIFICATIONS:
Interface |
USB 2.0 |
Dimensions (W X D X H) |
15 * 7.1 * 18.6mm |
Type of Antenna |
Omni Directional |
Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency |
5GHz, 2.4GHz |
Signal Rate |
5GHz 11ac: Up to 433Mbps(dynamic) 11n: Up to 150Mbps(dynamic) 11a: Up to 54Mbps(dynamic)
2.4GHz 11n: Up to 200Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity |
5GHz 11a 6Mbps: -90dBm 11a 54Mbps: -73dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -70dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -67dBm 11ac VHT80 MCS0: -82dBm 11ac VHT80 MCS9: -56dBm
2.4GHz 11b 1Mbps: -96dBm 11b 11Mbps: -88dBm 11g 6Mbps: -89dBm 11g 54Mbps: -74dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -72dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -66dBm
Transmit Power<20dBm (EIRP) |
Wireless Modes |
Ad-Hoc / Infrastructure mode |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
Certification |
CE, FCC, RoHS |
Package Contents |

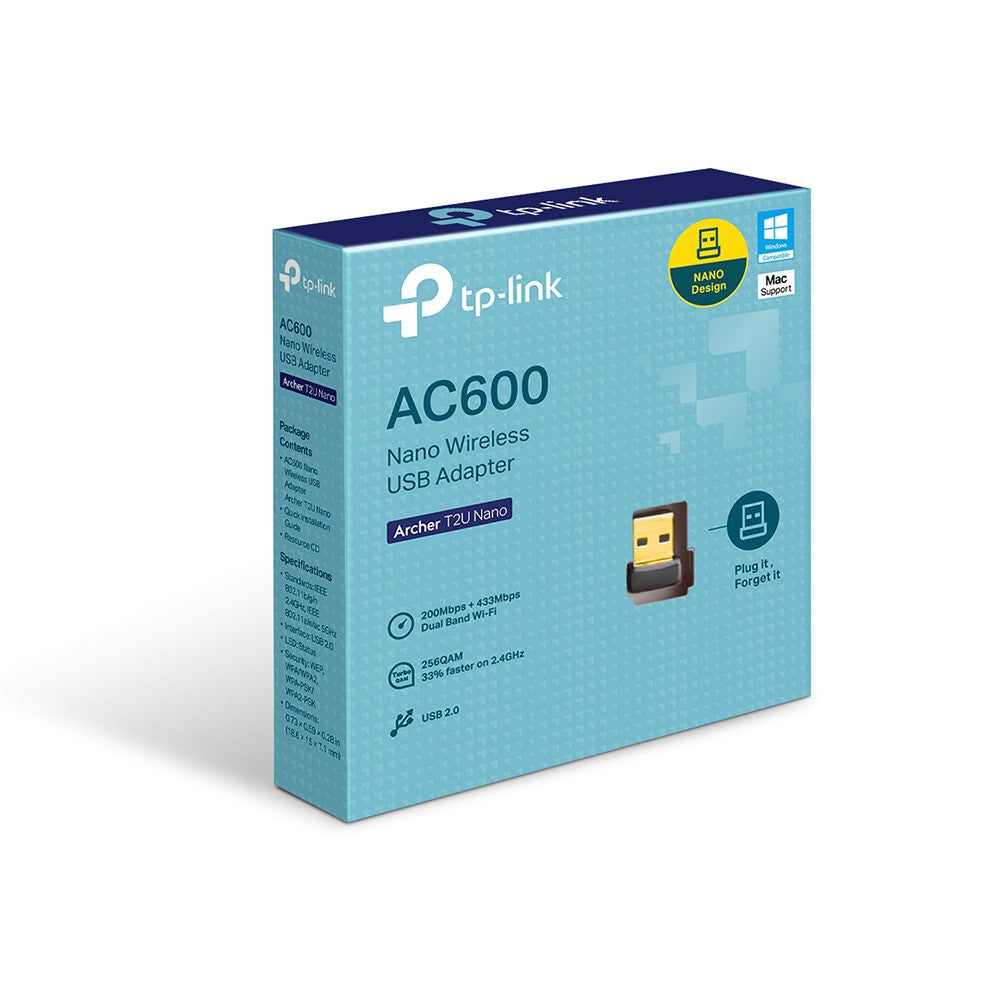

AC600 Nano Wireless USB Adapter Archer T2U Nano, Resource CD, Quick Installation Guide |
System Requirements |
Windows 10/8.1/8/7/XP (32/64bits), Mac OS X 10.9-10.13 |
Operating Temperature |
0℃~40℃ (32℉~104℉) |
Storage Temperature |
-40℃~70℃ (-40℉~158℉) |
Operating Humidity |
10%~90% non-condensing |
Storage Humidity |
5%~90% non-condensing |
