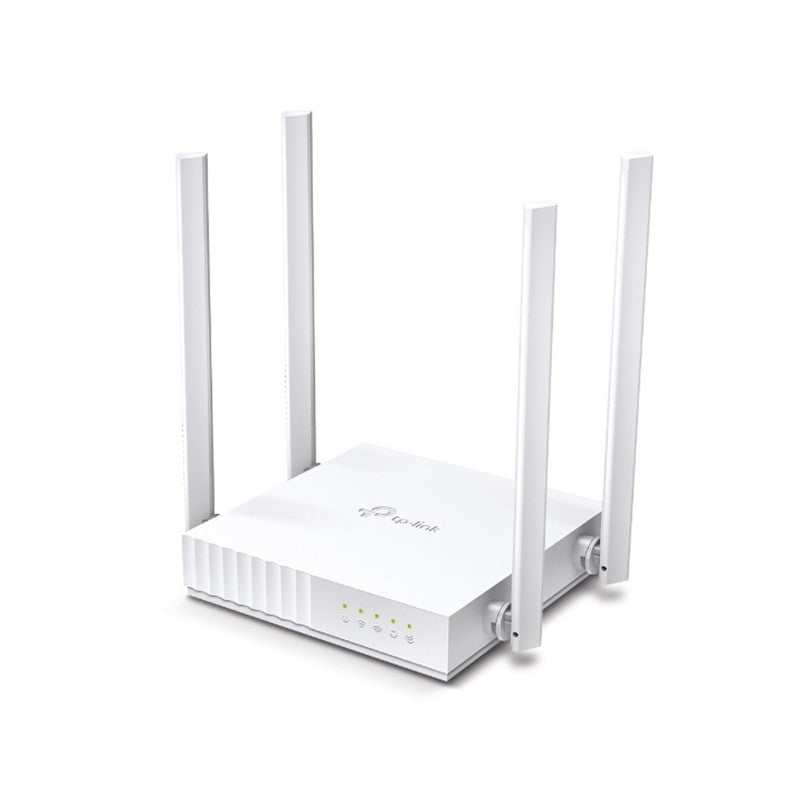

TP-Link AC750 Dual Band WiFi Router

WiFi Speeds

AC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses

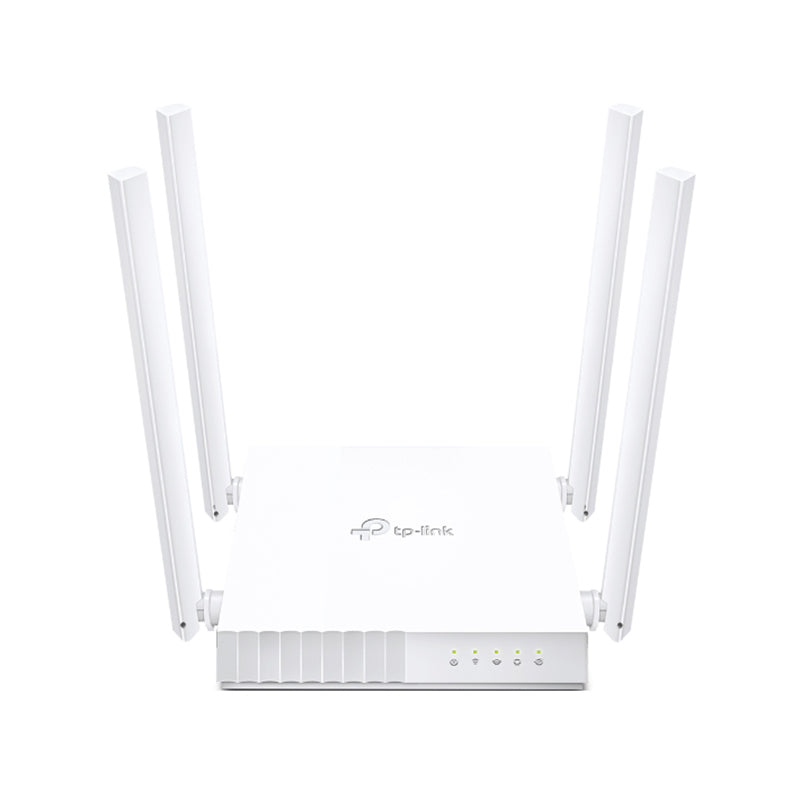

4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

Medium

Dual-Band

Allocate devices to different bands for optimal performance

Working Modes

Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor

Single-Core CPU

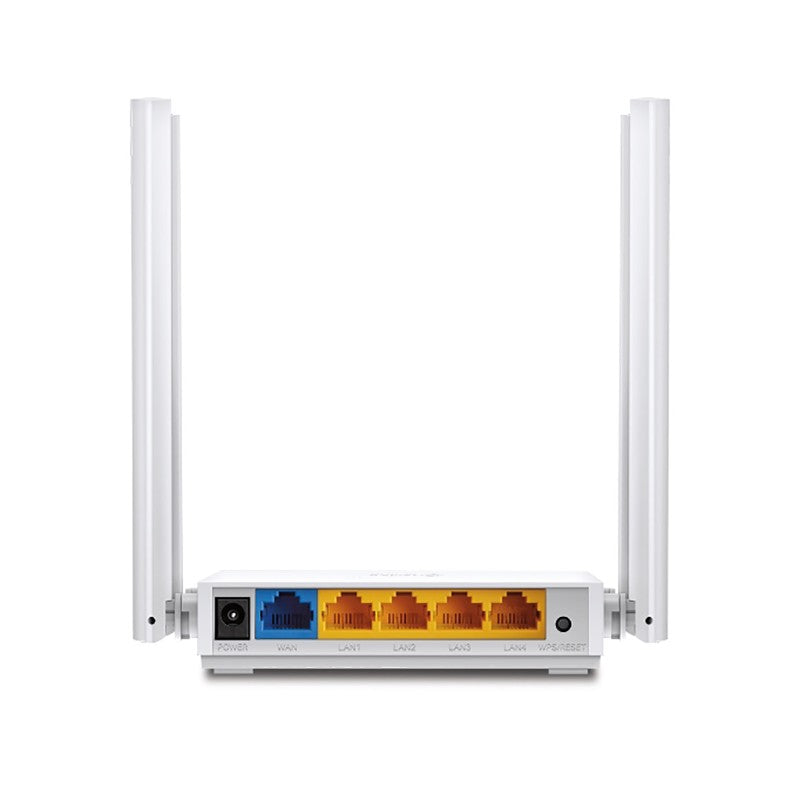

Ethernet Ports

1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons

WPS Button

Reset Button

Power

5 V ⎓ 0.6   A

SECURITY

WiFi Encryption

WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols

IPv4

IPv6

Parental Controls

URL Filtering

Time Controls

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

QoS by Device

NAT Forwarding

Virtual Server

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV

IGMP Proxy

IGMP Snooping

DHCP

Address Reservation

DHCP Client List

Server

DDNS

NO-IP

Comex

DynDNS

Management

Tether App

Webpage

PHYSICAL

Dimensions (W×D×H)

4.5 x 4.2 x 1.0 in

(115 x 106.7 x 24.3 mm)

Package Contents

Wi-Fi Router Archer C24

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃   (-40℉   ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

WiFi Reception Sensitivity

5GHz:

11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:

-62dBm

2.4GHz:

11g 54M: -76dBm11n; HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm
