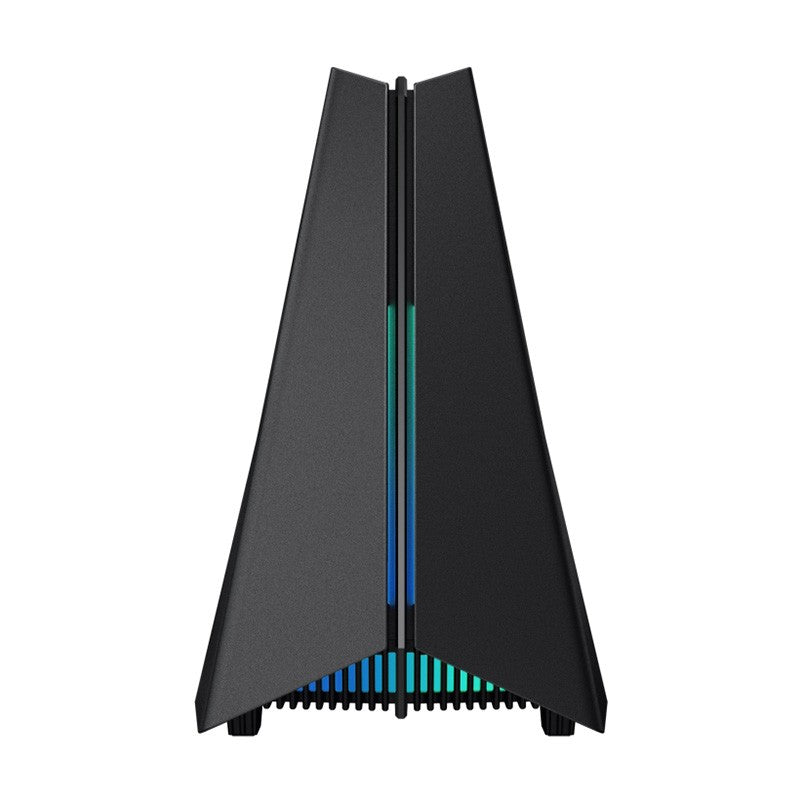

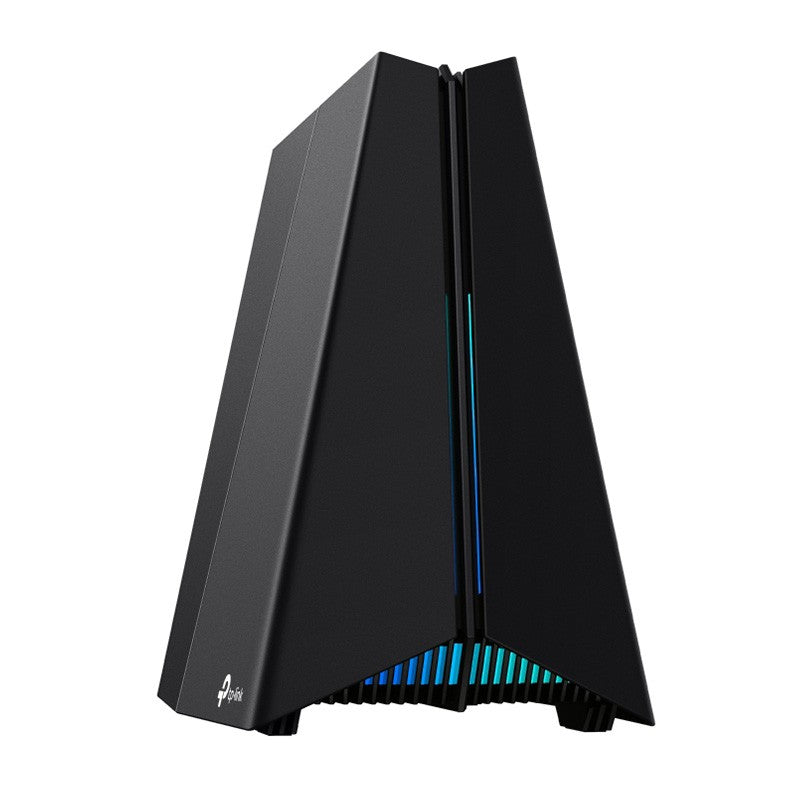

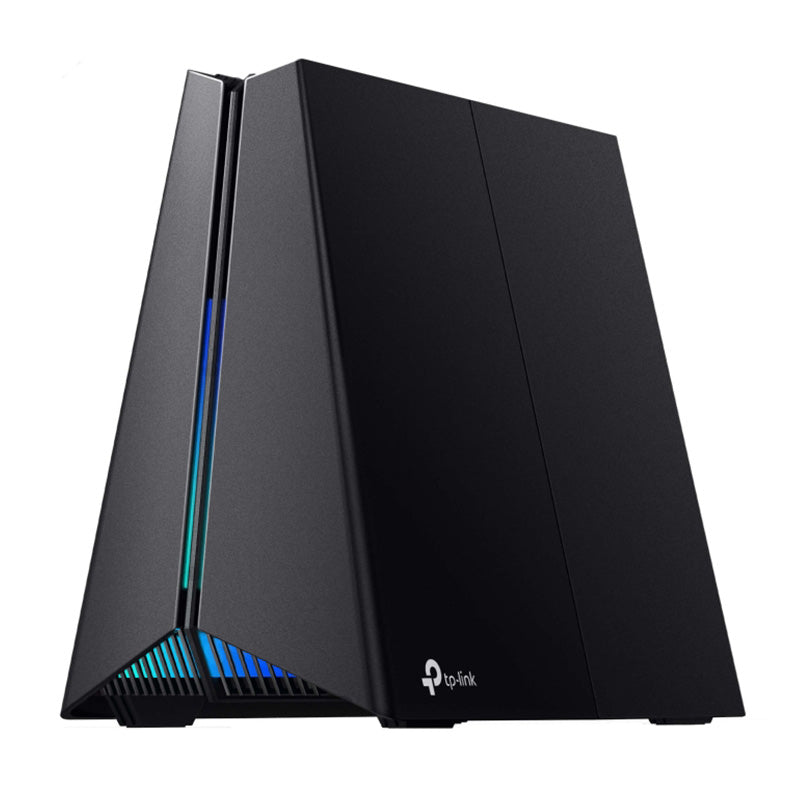

TP-Link Archer AXE5400 Tri-Band Wi-Fi 6E Gaming Router

WiFi Speeds

AXE5400

• 6 GHz: 2402 Mbps (802.11ax)

• 5 GHz: 2402 Mbps (802.11ax)

• 2.4 GHz: 574 Mbps (802.11ax)

Working Modes

• Router Mode

• Access Point Mode

Advanced Functions

• 320 MHz Channel

• 4K-QAM

• EasyMesh-Compatible

• Works with Alexa and Google Assistant

• IoT Network

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

• 1× 6 GHz Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

• WireGuard VPN Server

VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

• WireGuard VPN Client

WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports

• 1× 2.5Gbps WAN/LAN

• 1× 1Gbps WAN/LAN

• 3× 1Gbps LAN

USB Support

1× USB 3.0

• Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

• Supported Functions:

FTP Server

Media Server

Samba Server

SOFTWARE

Protocols

• IPv4

• IPv6

Game Center

1. Game Acceleration:

• Accelerate Game Applications with Qo

• Accelerate Game Devices with Gaming Port

• Game Servers Acceleration by GPN

• One-Click Acceleration Button

2. Game Panel:

• Network Status

• Router Performance

• RGB Settings

• Accelerated Games and Gears

3. Game Statistics:

Comprehensive Gaming Traffic Reports

4. Dedicated Gaming Band

5 GHz Gaming Band

Service Kit

HomeShield

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Type

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Cloud Service

• Auto Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP

• Address Reservation

• DHCP Client List

• Server

DDNS

• TP-Link

• NO-IP

• DynDNS

Management

• Tether App

• Webpage

OTHERS

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link   Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO   requires clients to also support the corresponding features.

^△The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers.

^§5 Gbps internet speeds require compatible service plans and equipment.

^※11 Gbps Wi-Fi speed refers to the theoretical speeds of Wi-Fi 7 clients when connected to Archer GE650. Wi-Fi 7 clients need to support Multi-Link Operation (MLO) and the 6   GHz band to reach up to 11 Gbps when connected to Archer GE800’s 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously.

*HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield

**TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

Wi-Fi generations represent the wireless standard IEEE 802.11a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.

A separate modem or gateway may be required. PPPoE, Static IP, and Dynamic IP are supported. PPTP and L2TP may also be supported under certain configurations.

Actual network speed may be limited by the rate of the product‘s Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This router may not support all the mandatory features as ratified in the IEEE 802.11be specification.

Further software upgrades for feature availability may be required.
