Description

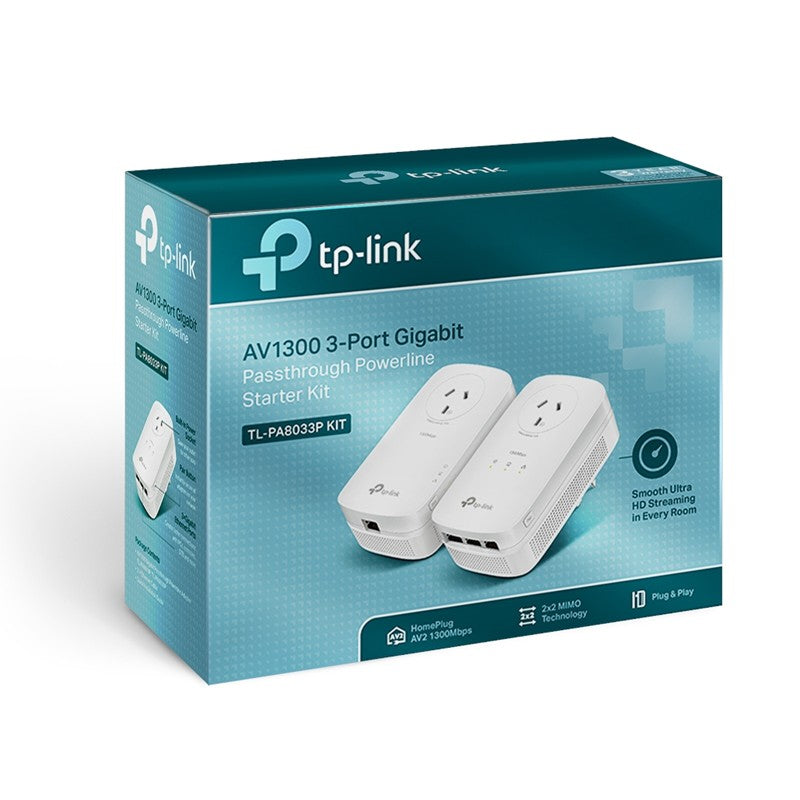

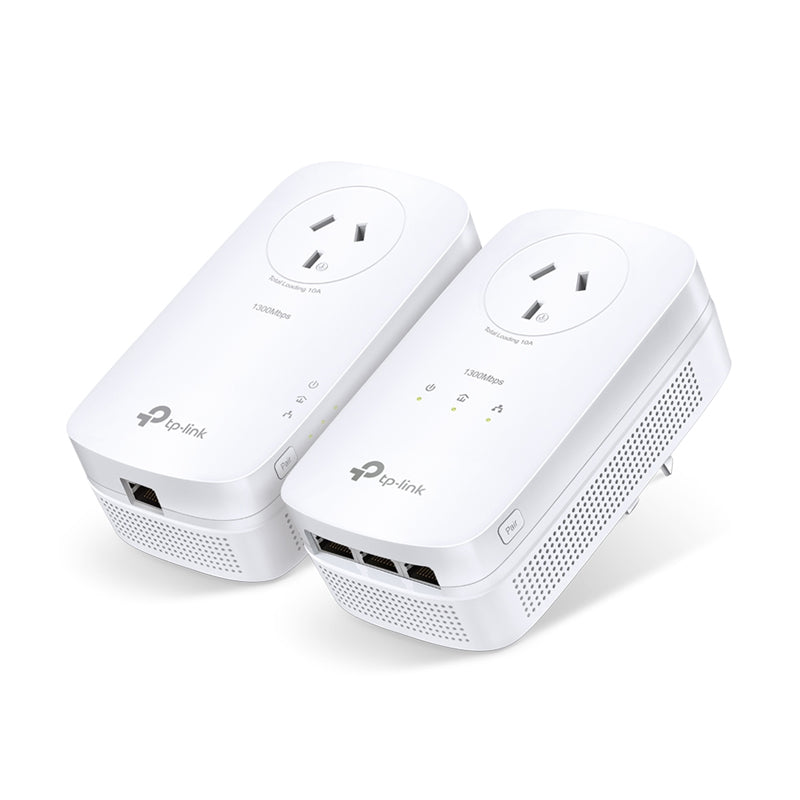

TP-Link TL-PA8033PKIT AV1300 3-Port Gigabit Passthrough Powerline Starter Kit
HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps1, supports all your online needs
Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
3 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
Integrated power socket ensures no power outlet goes to waste
Plug and play, no configuration required
-
Patented Power-Saving Mode automatically reduces power consumption by up to 85%2
Specifications
PLUG TYPE |
AU |
STANDARDS AND PROTOCOLS |
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
INTERFACE |
TL-PA8030P: 3 * Gigabit Ethernet Port, Power Socket TL-PA8010P: 1 * Gigabit Ethernet Port, Power Socket |
BUTTON |
Pair Button |
POWER CONSUMPTION |
Maximum: 5.53W Typical: 5.32W Standby: 1.36W |
LED INDICATOR |
Power, Powerline, Ethernet |
DIMENSIONS ( W X D X H ) |
5.2×2.8×1.7 in. (131×72×42 mm) |
RANGE |
300 Meters over electrical circuit |
POWER OUTPUT TO INTEGRATED SOCKET |
10A |
SOFTWARE FEATURES | |
MODULATION TECHNOLOGY |
OFDM (PLC) |
ENCRYPTION |
Powerline Security: 128-bit AES |
OTHERS | |
CERTIFICATION |
CE, RoHS |
ENVIRONMENT |
Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
PACKAGE CONTENTS |
Powerline Adapter TL-PA8010P, TL-PA8030P 2 × 6.5 ft. (2 m) Ethernet Cable Quick Installation Guide |
SYSTEM REQUIREMENTS |
Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux |
