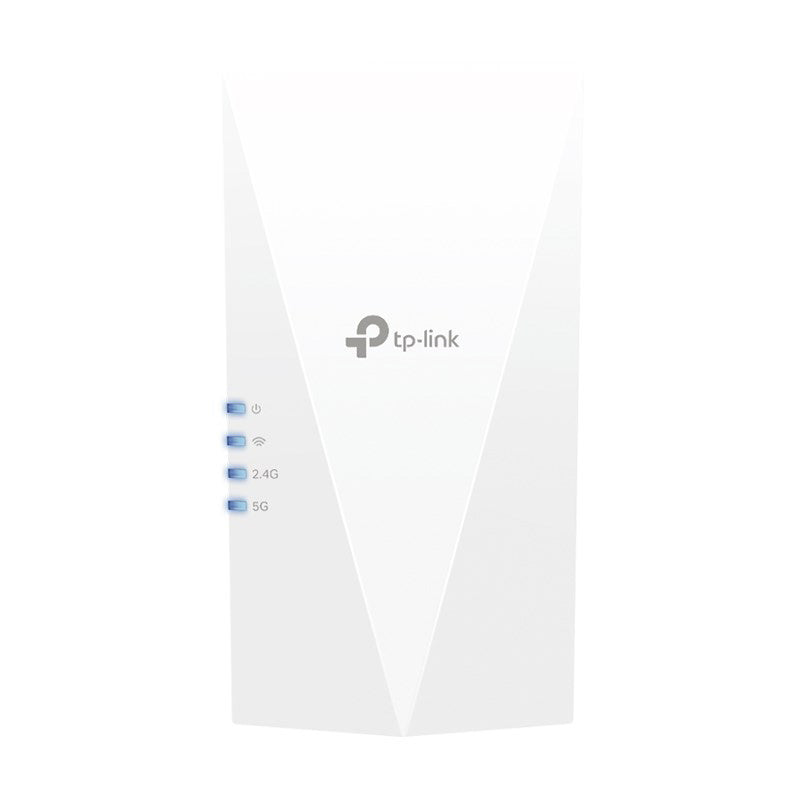

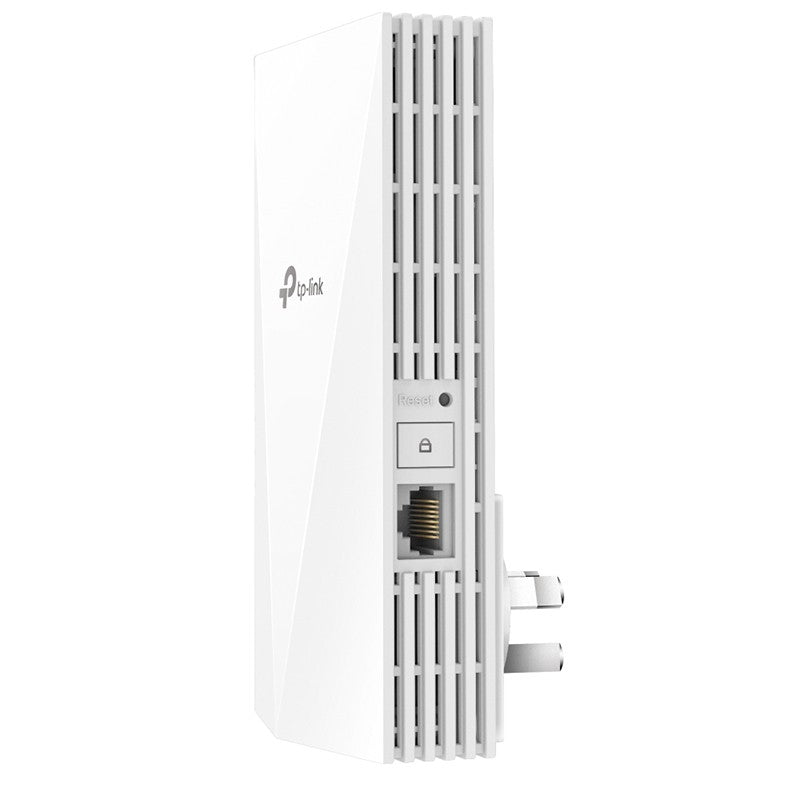

TP-Link AX1500 WiFi6 WiFi Range Extender

Ports

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Power Consumption

10W

Dimensions ( W x D x H )

3.1×1.4×5.9 in. (78×36×149 mm)

Antenna

2 Internal Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Reception Sensitivity

5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

Transmit Power

CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA-PSK2 encryptions

OTHERS

Package Contents

Wi-Fi Range Extender RE500X
Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Certifications

FCC, RoHS
