Description
SPECIFICATIONS:
HARDWARE FEATURES |
|

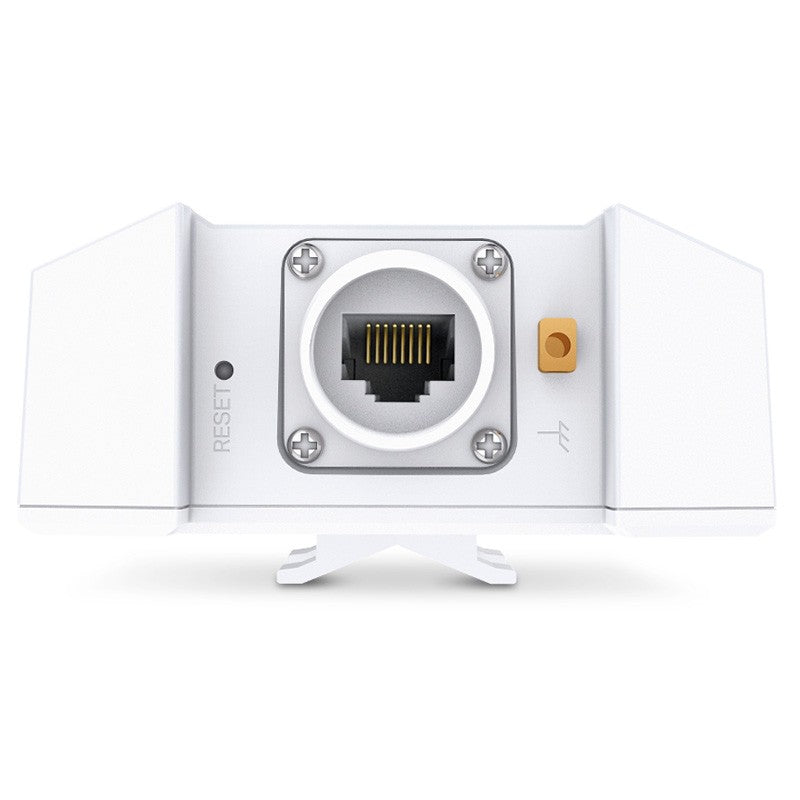

Interface |
1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
Button |
Reset |
Power Supply |
802.3at PoE 48V/0.5A Passive PoE (PoE Adapter Included) |
Power Consumption |
EU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE) |
Dimensions ( W x D x H ) |
280.4×106.5×56.8 mm (without antenna & mounting kit) |
Antenna |
2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi |
Weatherproof Enclosure |
IP67 |

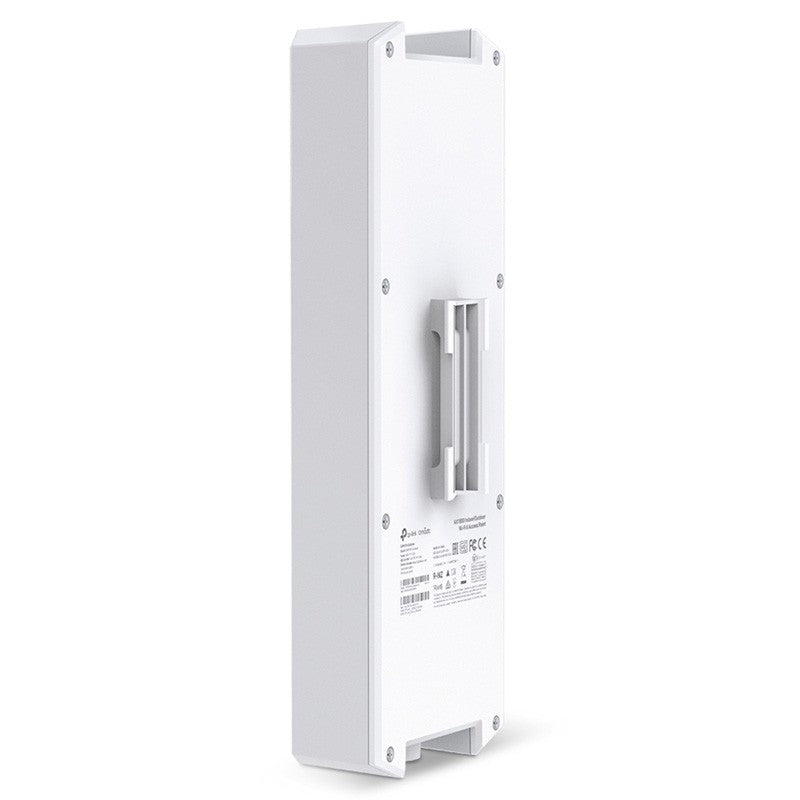

Mounting |
Pole/Wall Mounting (Kits included) |
WIRELESS FEATURES |
|
Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
Frequency |
2.4 GHz, 5 GHz |
Signal Rate |
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Transmit Power |
CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
Wireless Functions |
1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) MU-MIMO Omada Mesh** Seamless Roaming** Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
Wireless Security |
Captive Portal Authentication** Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
MANAGEMENT |
|
Omada App |
Yes |
Centralized Management |
Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Email Alerts |
Yes |
Management MAC Access Control |
Yes |
SNMP |
v1, v2c |
System Logging Local/Remote Syslog |
Yes |
SSH |
Yes |
Web-based Management |
Yes |
L3 Management |
Yes |
Multi-site Management |
Yes |
Management VLAN |
Yes |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
Access Point EAP610-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Kits Waterproof Antenna Installation Guide |
System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment |
Operating Temperature: -30–70 ℃ (-22–158 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
