Description
SPECIFICATIONS:
WIRELESS |
|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
3-4 Bedroom Houses (2-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity |
High Dual-Band Distribute devices to different bands for optimal performance
MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
OFDMA Simultaneously communicates with multiple WiFi 6 clients
4 Streams More than enough bandwidth for connected devices |
Working Modes |
Router Mode Access Point Mode |
HARDWARE |
|
Processor |
1.5 GHz Quad-Core CPU |
Performance |
Microphone Quadruple microphone array
Speaker 5 W full frequency speaker with double bass passive diaphragm |
Ethernet Ports |

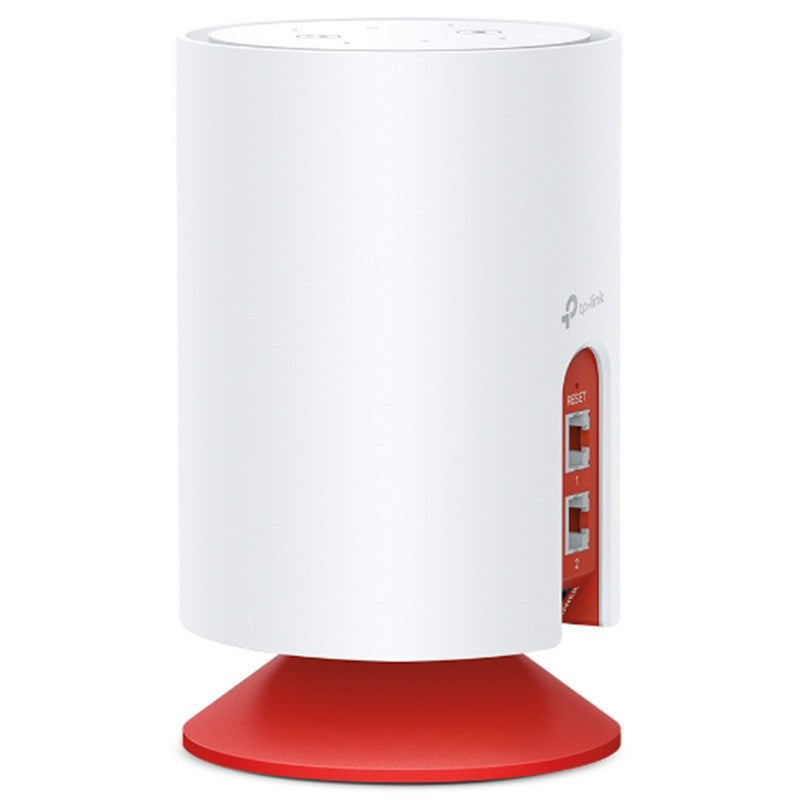

2× Gigabit Ports *Per Deco Voice Unit Supports WAN/LAN auto-sensing |
Buttons |
1 Reset Button 1 Mute Button 1 Action Button 2 Volume Buttons |
SECURITY |
|
WiFi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
Network Security |
SPI Firewall Access Control
HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE |
|
Protocols |
IPv4 IPv6 |
Service Kits |
HomeShield |
Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
HomeShield QoS QoS by Device |
Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link |
Management |
Deco App |
PHYSICAL |
|
Dimensions (W×D×H) |
4.13 × 4.13 × 6.69 in (105 × 105 × 170 mm) |
Package Contents |

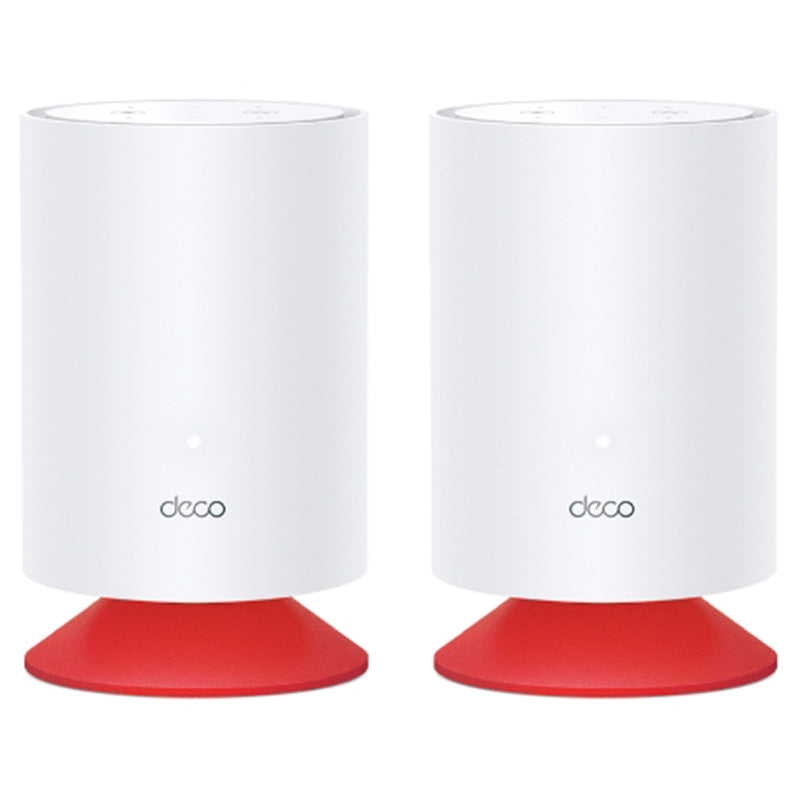

Deco Voice X20 (2-pack) 2 Deco Voice X20 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide |
OTHERS |
|
System Requirements |
Android 4.4 or later iOS 9.0 or later |
Certifications |
CE, EAC, FCC, IC, RoHS, RCM |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
TEST DATA |
|
WiFi Transmission Power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm(2.4 GHz) <30 dBm(5 GHz) |
