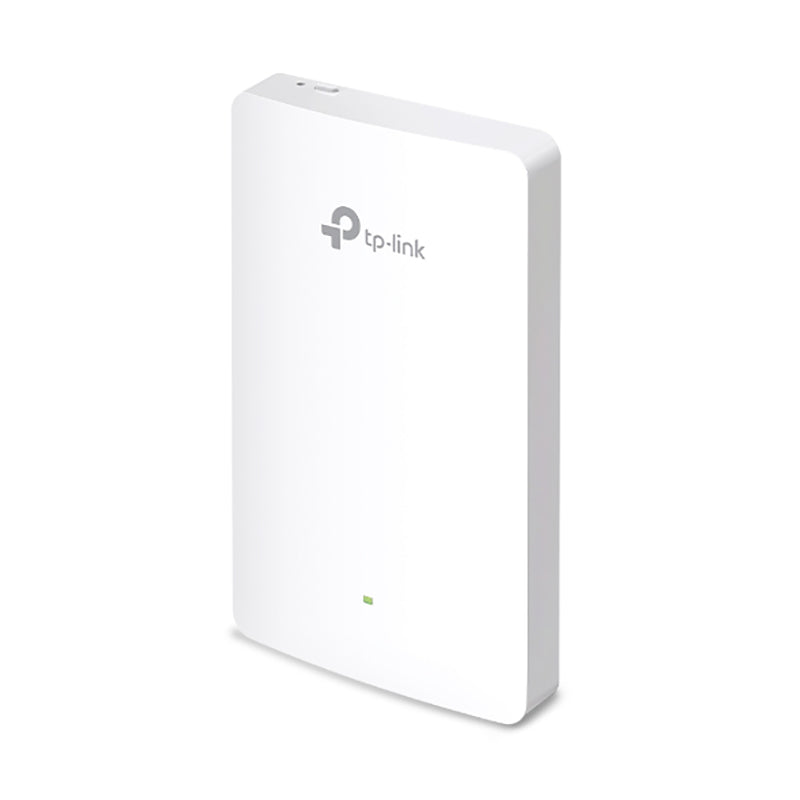

TP-Link AX1800 Wall Plate WiFi 6 Access Point

Interface

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
  • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT.   The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for   POE pass-through is 13 W (EU version) or 12 W (US version), based on   laboratory testing.)

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/at PoE

Power Consumption

EU: 10W (802.3at PoE, PoE Out off)
  US: 11.5W (802.3at PoE, PoE Out off)

Dimensions

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna

2 Dual-Band Antennas
  • 2.4 GHz: 2× 3 dBi
  • 5 GHz: 2× 4 dBi

Mounting

Wall Plate Mounting

WIRELESS   FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 1201 Mbps
  • 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Seamless Roaming
  • Beamforming
  • MU-MIMO
  • Rate Limit
  • Load Balance
  • Airtime Fairness
  • Band Steering
  • Reboot Schedule
  • Wireless Schedule
  • RADIUS Accounting
  • MAC Authentication
  • Wireless Statistics
  • Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:
  < 20 dBm (2.4 GHz, EIRP)
  < 23 dBm (5 GHz, EIRP)

  • FCC:
  < 21 dBm (2.4 GHz)
  < 21 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, or Omada Software   Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• AX1800 Wall Plate WiFi 6 Access Point   EAP615-Wall
  • Installation Guide
  • Mounting Kits

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows   8, Windows10

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
