Description
SPECIFICATIONS:
WIRELESS |
|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
4-6 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity |
High Dual-Band Distribute devices to different bands for optimal performance
MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
OFDMA Simultaneously communicates with multiple WiFi 6 clients
4 Streams More than enough bandwidth for connected devices |
Working Modes |
Router Mode Access Point Mode |
HARDWARE |
|
Processor |
1 GHz Quad-Core CPU |
Ethernet Ports |
2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons |
Reset Button |
SECURITY |
|
WiFi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
Network Security |
SPI Firewall Access Control HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE |
|
Protocols |
IPv4 IPv6 |
Service Kits |
HomeCare™ |
Parental Controls |
HomeCare™ Parental Controls Custom Profiles Content Filtering URL FIltering Time Limit Time Schedule (Bed Time) Log Insight Usage Monitor Monthly Reports |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
HomeCare™ QoS QoS by Device QoS by Application |
Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link |
Management |
Deco App |
PHYSICAL |
|
Dimensions (W×D×H) |
4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) |
Package Contents |

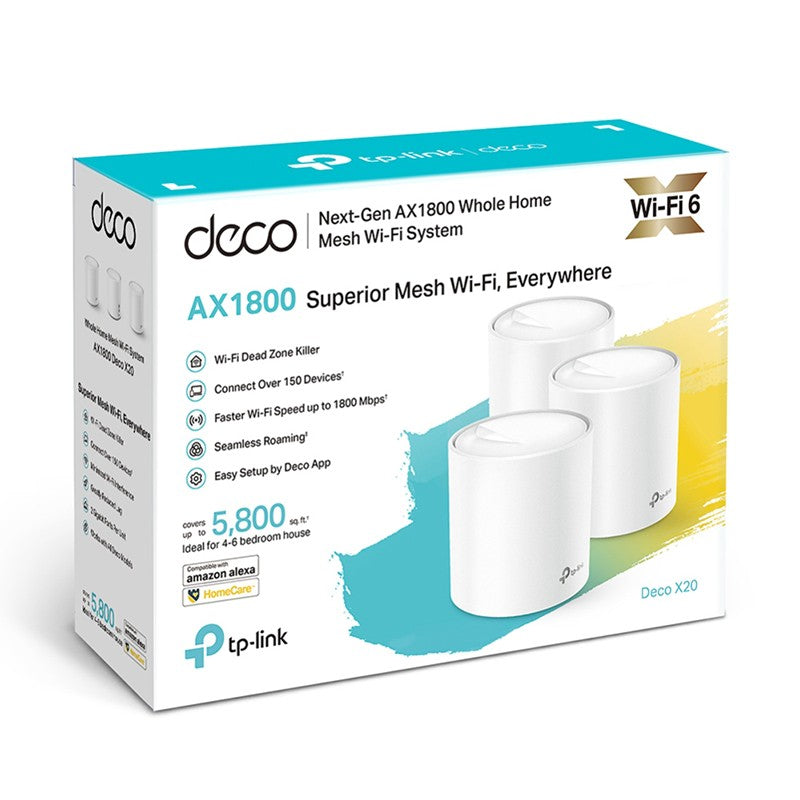

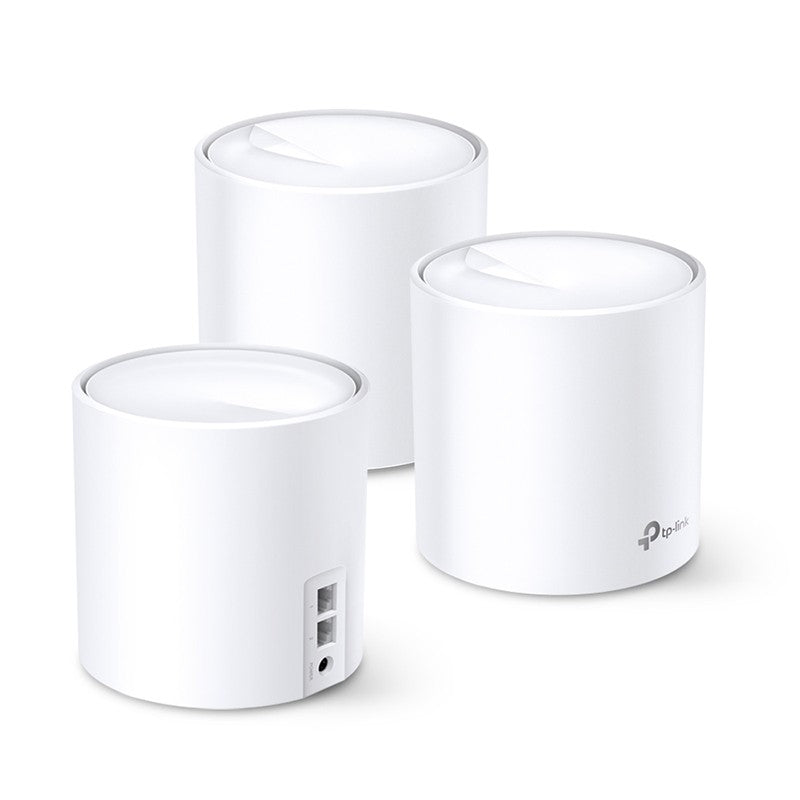

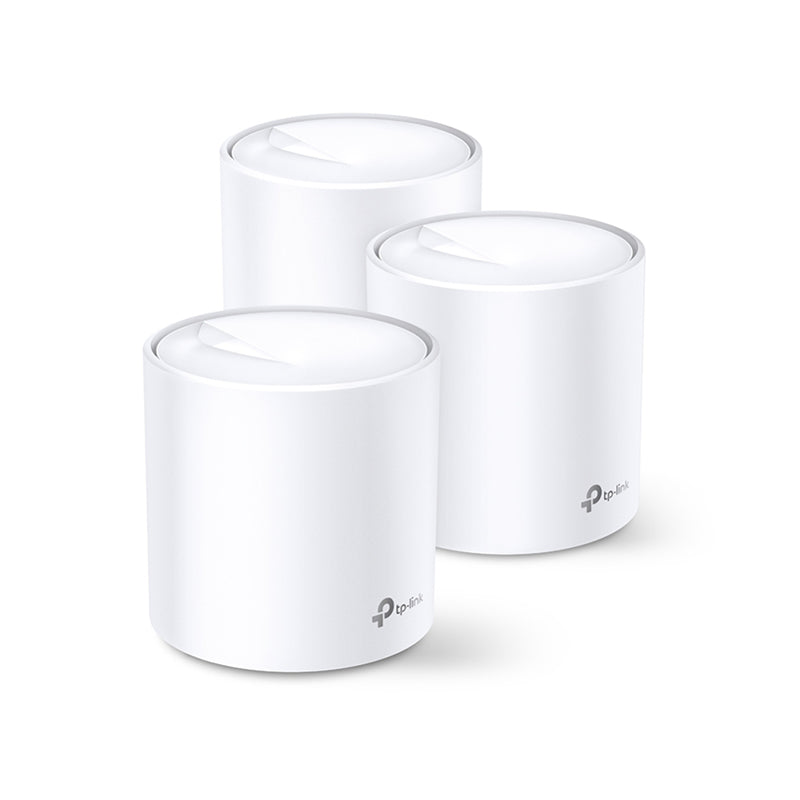

Deco X20 (3-pack) 3 Deco X20 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide
Deco X20 (2-pack) 2 Deco X20 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide
Deco X20 (1-pack) 1 Deco X20 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
OTHERS |
|
System Requirements |
Android 4.4 or later iOS 9.0 or later |
Certifications |
CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA |
|
WiFi Transmission Power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
