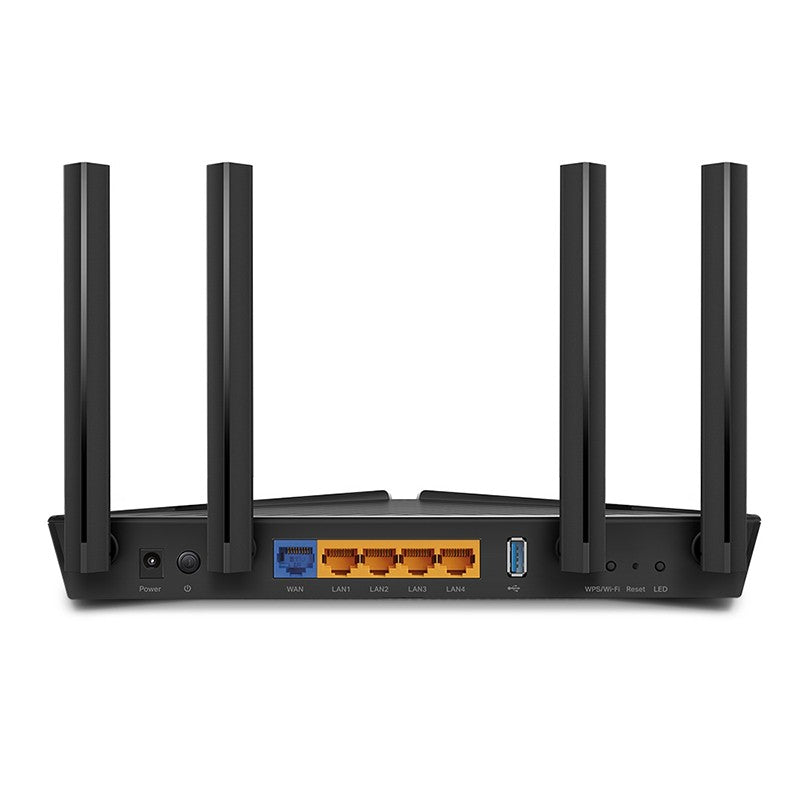

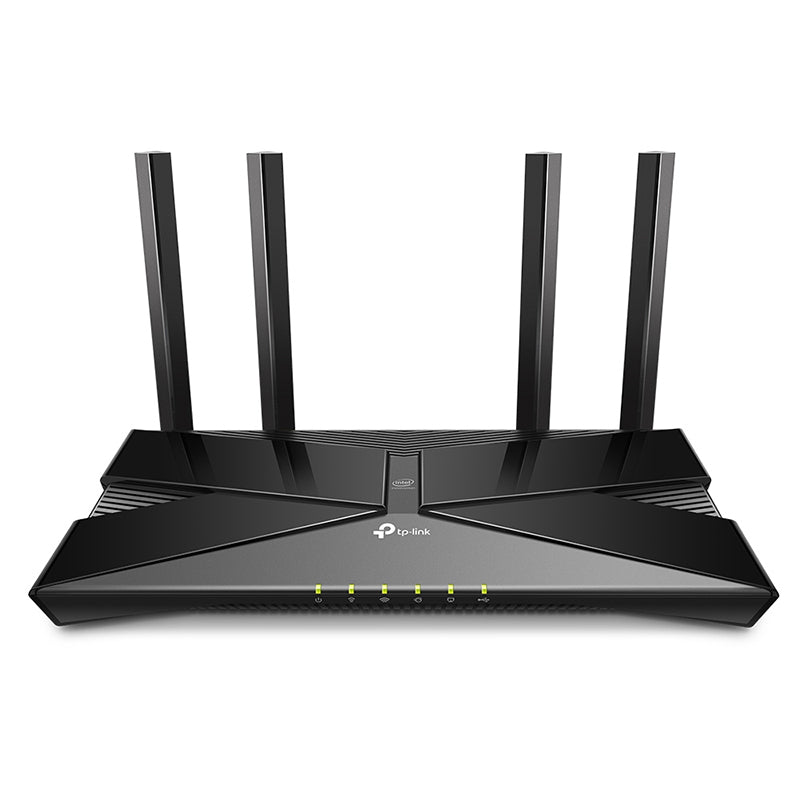

TP-Link AX3000 Dual Band Gigabit Wi-Fi 6 Router

IEEE   802.11ax/ac/n/a 5 GHz

IEEE   802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX3000

5 GHz: 2402 Mbps   (802.11ax)

2.4 GHz: 574 Mbps   (802.11ax)

WiFi Range

2 Bedroom Houses

4× Fixed Antennas

Multiple antennas   form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates   wireless signal strength towards clients to expand WiFi range

WiFi Capacity

High

Dual-Band

Allocate devices   to different bands for optimal performance

2×2 MU-MIMO

Simultaneously   communicates with multiple MU-MIMO clients

OFDMA

Simultaneously   communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network   efficiency by limiting excessive occupation

DFS

Access an extra   band to reduce congestion

4 Streams

Connect your   devices to more bandwidth

Working Modes

Router Mode

Access Point Mode

HARDWARE

Processor

Dual-Core CPU

Ethernet Ports

1× Gigabit WAN   Port

4× Gigabit LAN   Ports

USB Support

1× USB 3.0 Port

Supported   Partition Formats:

NTFS, exFAT,   HFS+, FAT32

Supported   Functions:

Apple Time   Machine

FTP Server

Media Server

Buttons

Wi-Fi/WPS Button

Power On/Off   Button

LED On/Off Button

Reset Button

Power

12 V ⎓ 2 A
