WIRELESS |
Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
|
WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
|
Working Modes |
Router Mode
Access Point Mode |
HARDWARE |
Processor |
Dual-Core CPU |
Ethernet Ports |
1× Gigabit WAN Port
4× Gigabit LAN Ports |
USB Support |
1× USB 3.0 Port |
Buttons |
Wi-Fi/WPS Button
Power On/Off Button
Reset Button |
Power |
12 V ⎓ 2 A |
SECURITY |
WiFi Encryption |
WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
Network Security |
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
VPN Server |
OpenVPN
PPTP |
SOFTWARE |
Protocols |
IPv4
IPv6 |
Service Kits |
HomeShield |
OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
|
Parental Controls |
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
|
WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
Quality of Service |
QoS by Device |
Cloud Service |
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
NAT Forwarding |
Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP |
IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
DHCP |
Address Reservation
DHCP Client List
Server |
DDNS |
TP-Link
NO-IP
DynDNS |
Management |
Tether App
Webpage
|
PHYSICAL |
Dimensions (W×D×H) |
10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
Package Contents |

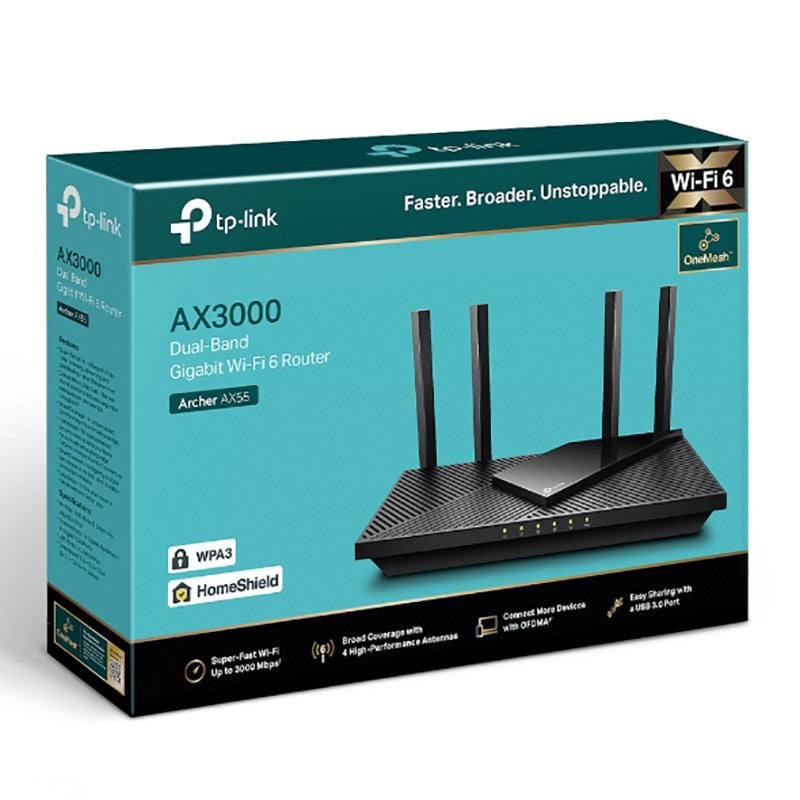

Wi-Fi Router Archer AX55
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
OTHER |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
Certifications |
FCC, CE, RoHS |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing |
TEST DATA |
WiFi Transmission Power |
CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz) |
WiFi Reception Sensitivity |
Transmit Power: CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) FCC: <30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz)
Reception Sensitivity: 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm |
