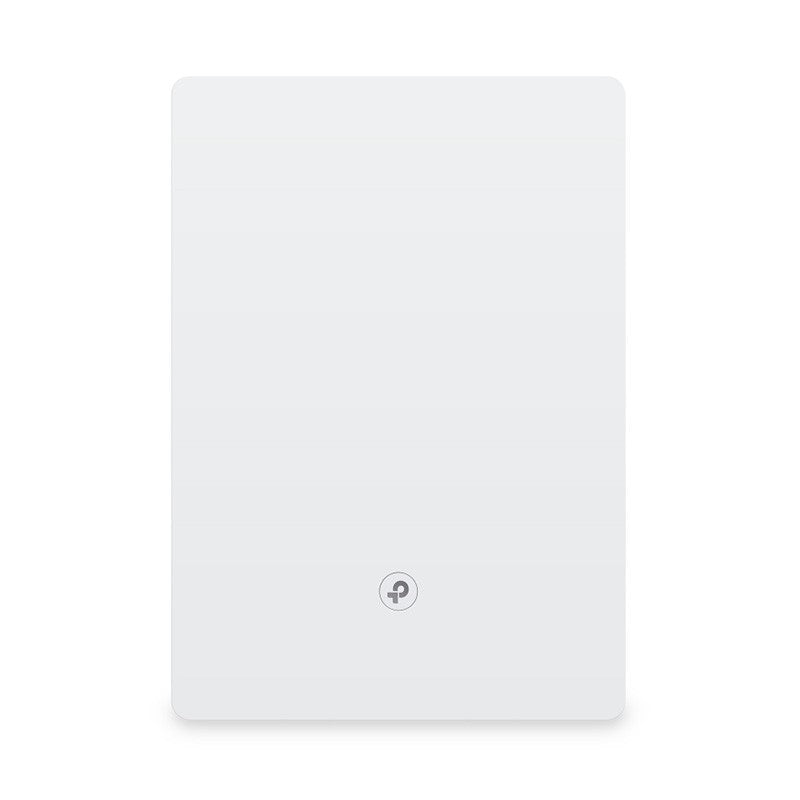

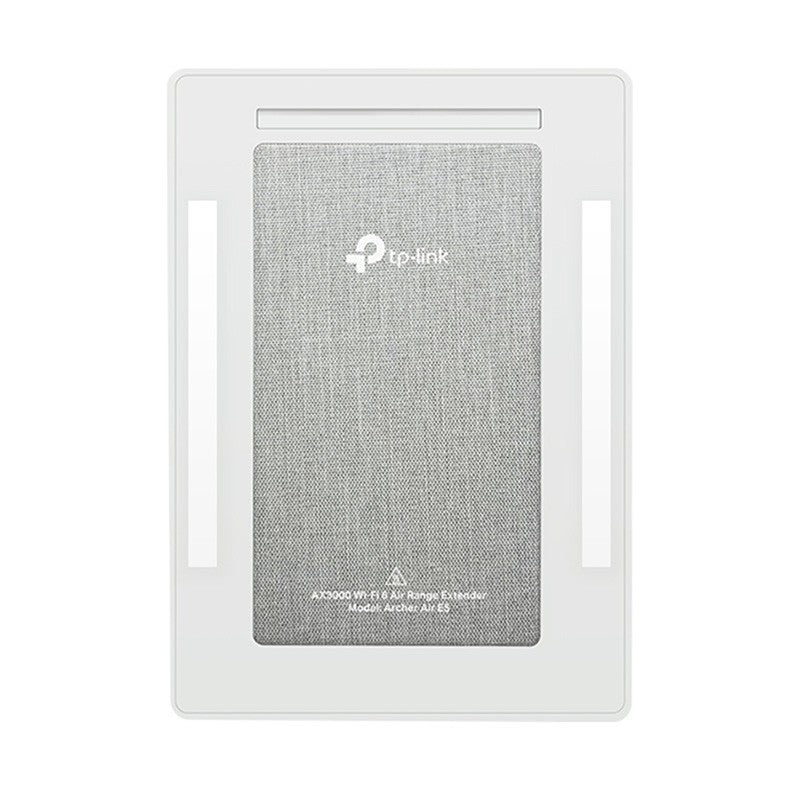

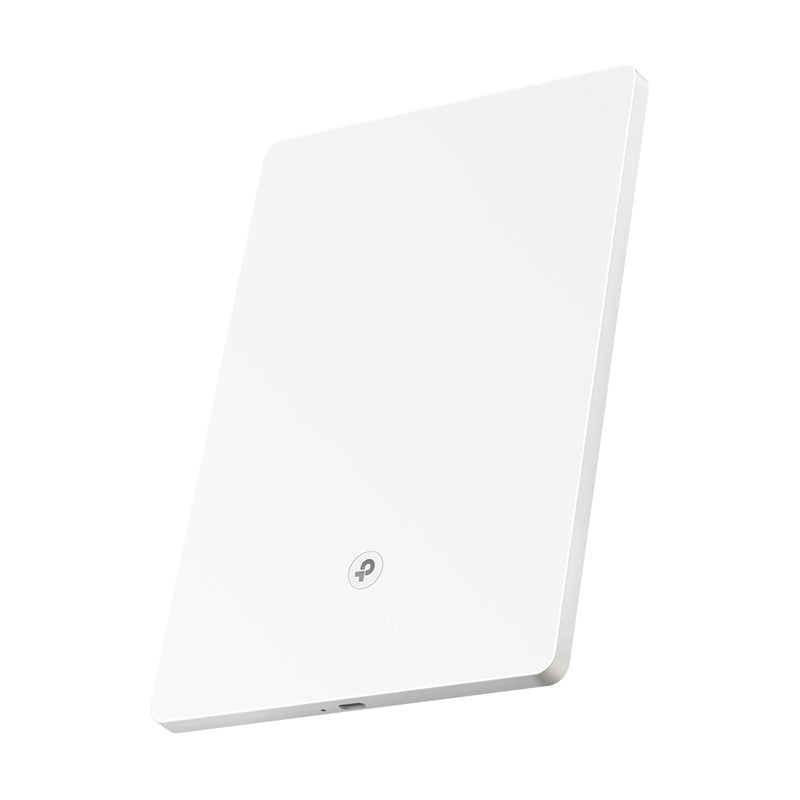

TP-Link AX3000 Dual-Band Wi-Fi 6 Air Range Extender

Button

LED and WPS 2-in-1 Button

Input Power

100-240V~50/60Hz

Power Consumption

17 W

Antenna

Internal Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5 GHz

IEEE 802.11b/g/n/ax 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

574 Mbps at 2.4 GHz

2402 Mbps at 5 GHz

Working Modes

Range Extender

Reception Sensitivity

5GHz:

11ax HE20 MCS0：-97 dBm, 11ax HE20 MCS11：-66 dBm

11ax HE40 MCS0：-94 dBm, 11ax HE40 MCS11：-63 dBm

11ax HE80 MCS0：-91 dBm, 11ax HE80 MCS11：-60 dBm

11ax HE160 MCS0：-88   dBm, 11ax HE160 MCS11：-58 dBm

2.4GHz:

11ax HE20 MCS0：-95 dBm, 11ax HE20 MCS11：-65 dBm

11ax HE40 MCS0：-93 dBm, 11ax HE40 MCS11：-62 dBm

Wireless Functions

• Smart Antennas

• Enable/Disable Wireless Radio

• Access Control

• LED Control

• Power Schedule

• Wi-Fi Coverage Adjustment

Wireless Security

• WPA3

• WPA2-PSK

• WPA

Transmission Power

• CE:

<20 dBm (2.4 GHz)

<23 dBm (5.15 GHz~5.25 GHz)

• FCC:

<30 dBm (2.4 GHz & 5.15 GHz~5.825 GHz)

Mesh Technology

EasyMesh-Compatible

OTHERS

Certification

FCC, RoHS

Package Contents

Wi-Fi Range Extender Archer Air E5

Quick Installation Guide

Power Adapter

Plastic Bracket

Level

Installation Accessories

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)

• Storage Temperature: -40℃~70℃ (-40℉   ~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
