Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
Interface |
1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
Button |
Reset |
Power Supply |
802.3at PoE / 48V Passive PoE |
Power Consumption |
802.3at PoE / 48V Passive PoE |
Dimensions ( W x D x H ) |
• 280.4×106.5×56.8 mm (without antenna & mounting kit) |
Antenna |
• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
Weatherproof Enclosure |
IP67 |

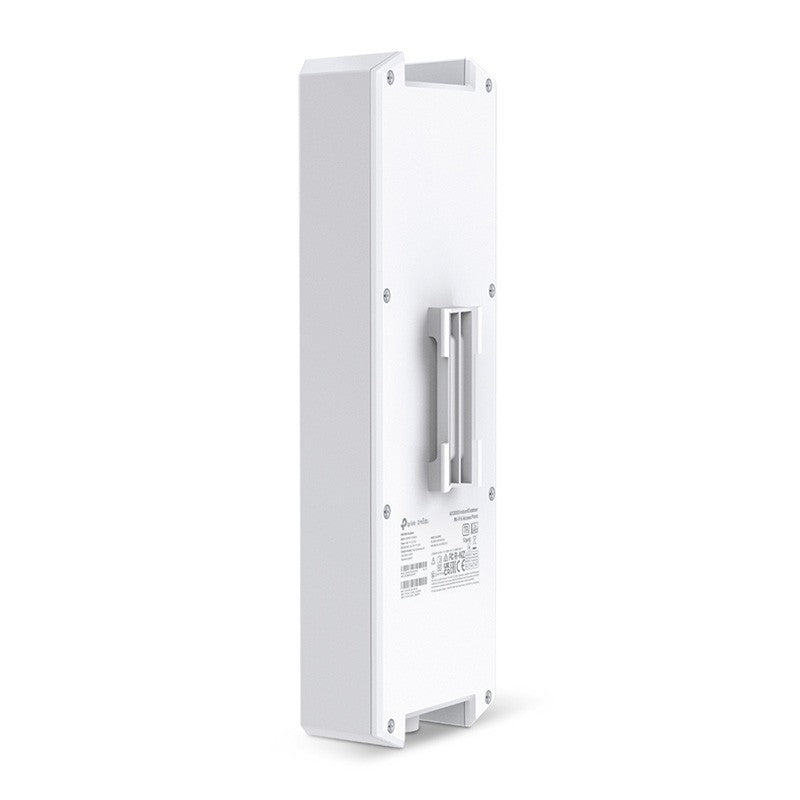

Mounting |
Pole/Wall Mounting (Kits included) |
WIRELESS FEATURES |
|
Wireless Client Capacity |
250+6 |
Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
Frequency |
2.4 GHz, 5 GHz |
Signal Rate |
• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Transmit Power |
• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
Wireless Functions |
• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh • Seamless Roaming • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
Wireless Security |
• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
MANAGEMENT |
|
Omada App |
Yes |
Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access |
Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller |
Email Alerts |
Yes |
Management MAC Access Control |
Yes |
SNMP |
v1, v2c |
System Logging Local/Remote Syslog |
Yes |
SSH |
Yes |
Web-based Management |
Yes |
L3 Management |
Yes |
Multi-site Management |
Yes |
Management VLAN |
Yes |
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |

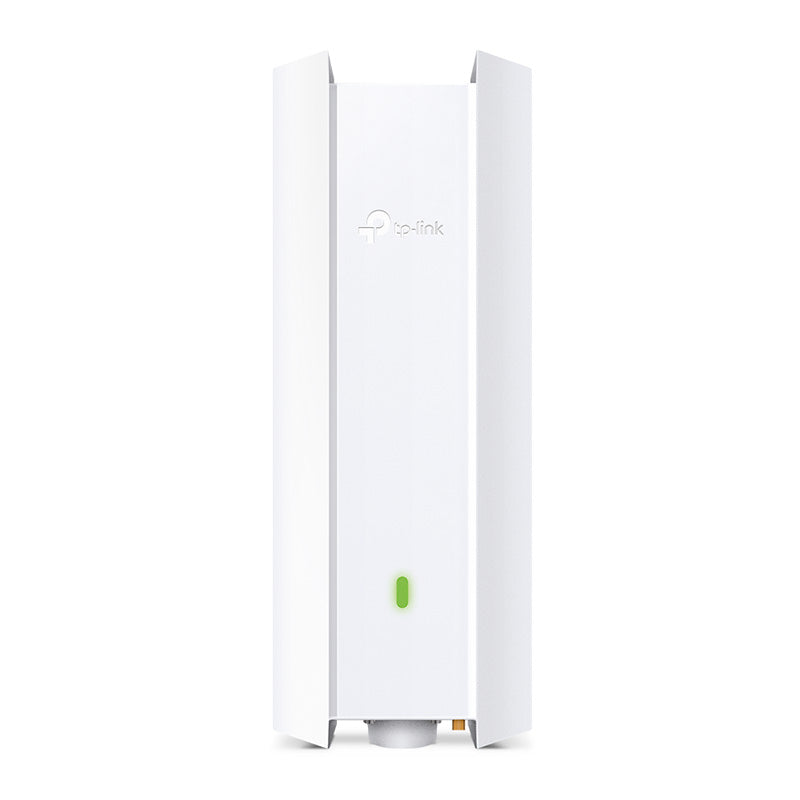

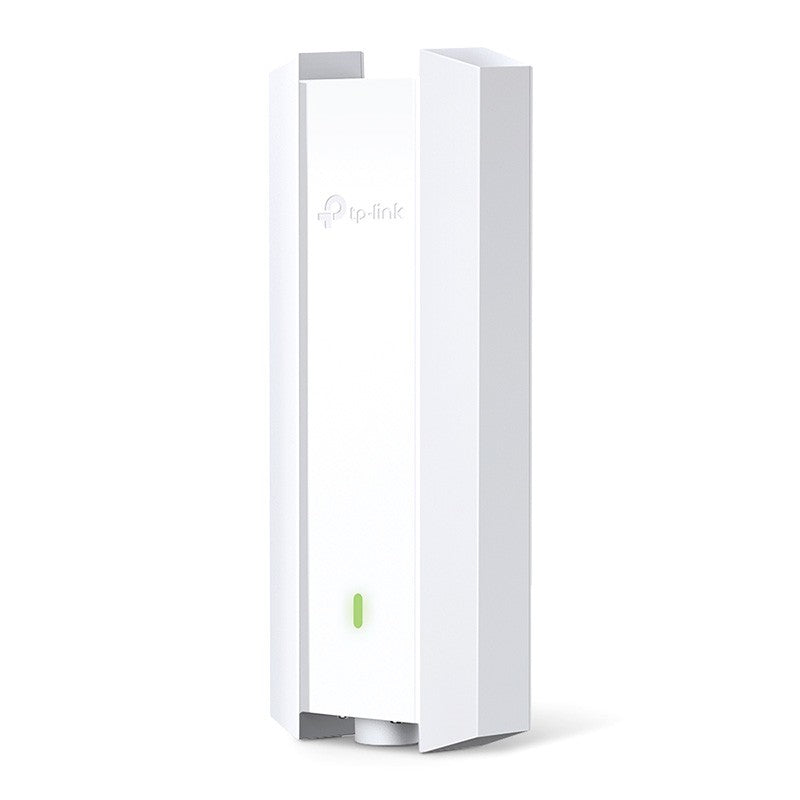

• Access Point EAP650-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide |
System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
Environment |
• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Notes |
1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition. 2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs. 3. Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods. 4. Based on field tests. The number listed here is the maximum distance one EAP610-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc. 5. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Note that EAP610-Outdoor v1.0 doesn't support the Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with the Omada Cloud-Based Controller. |
