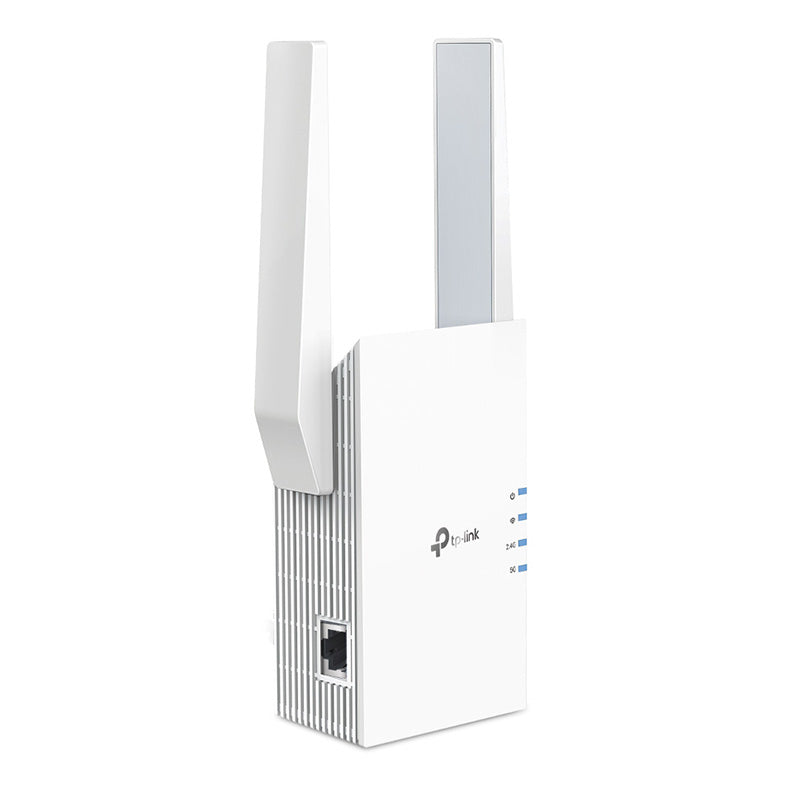

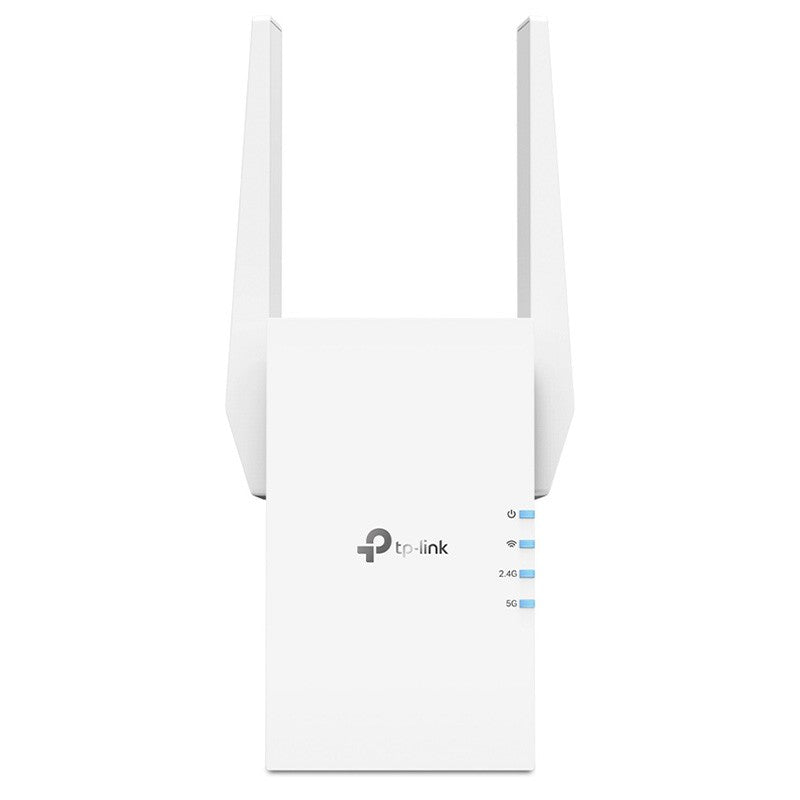

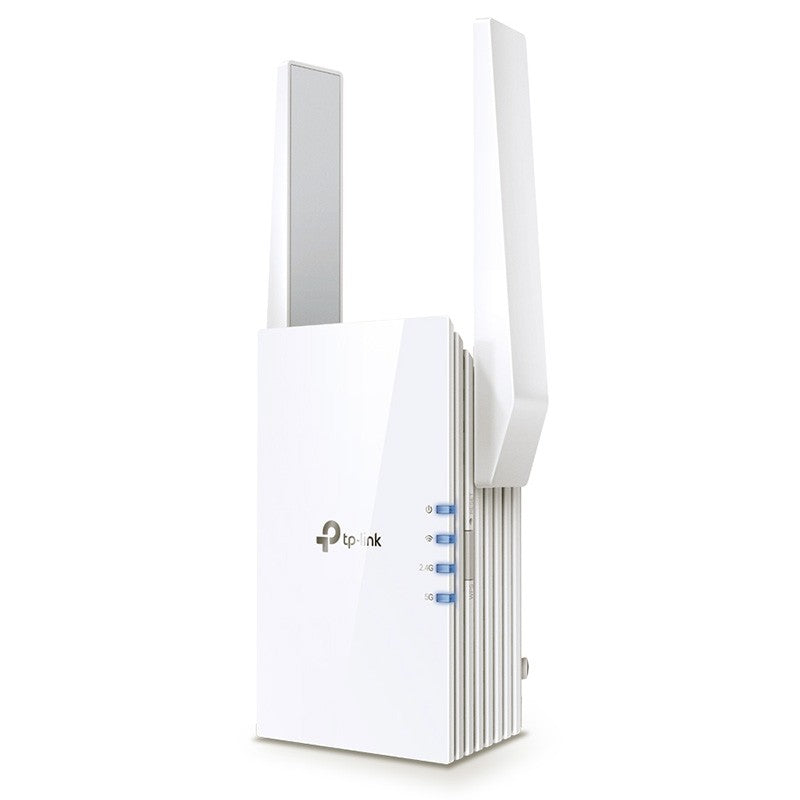

TP-Link AX3000 Mesh WiFi 6 Range Extender

Ports

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Power Consumption

12.6W

Dimensions ( W x D x H )

97*46*158

Antenna

2 External Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

574 Mbps at 2.4GHz, 2402 Mbps at 5GHz

Reception Sensitivity

5GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-78dBm

11ax HE20 MCS0: -97dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -94dBm

11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -91dBm

11ax HE80 MCS11: -61dBm

11ax HE160 MCS11: -59dBm

2.4GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11ax HE20 MCS0: -95dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -93dBm

11ax HE40 MCS11: -62dBm

Transmit Power

CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm

Wireless Modes

Range Extender / Access Point

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

WEP, WPA, WPA2, WPA3

OTHERS

Certification

CE, RoHS

Package Contents

Quick Installation Guide
Wi-Fi Range Extender RE705X

System Requirements
