Description
SPECIFICATIONS:
WIRELESS |
|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas |
WiFi Capacity |
High
Dual-Band Distribute devices to different bands for optimal performance
2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
OFDMA Simultaneously communicates with multiple WiFi 6 clients
4 Streams More than enough bandwidth for connected devices |
Working Modes |
Router Mode Access Point Mode |
HARDWARE FEATURES |
|
Power Supply |
• 802.3at PoE • 12V DC (EU Version: 12V/1.2A DC. US Version: 12V/1.5A DC). Note: DC adapter is included in the package |
HARDWARE |
|
Button |
Reset Button |

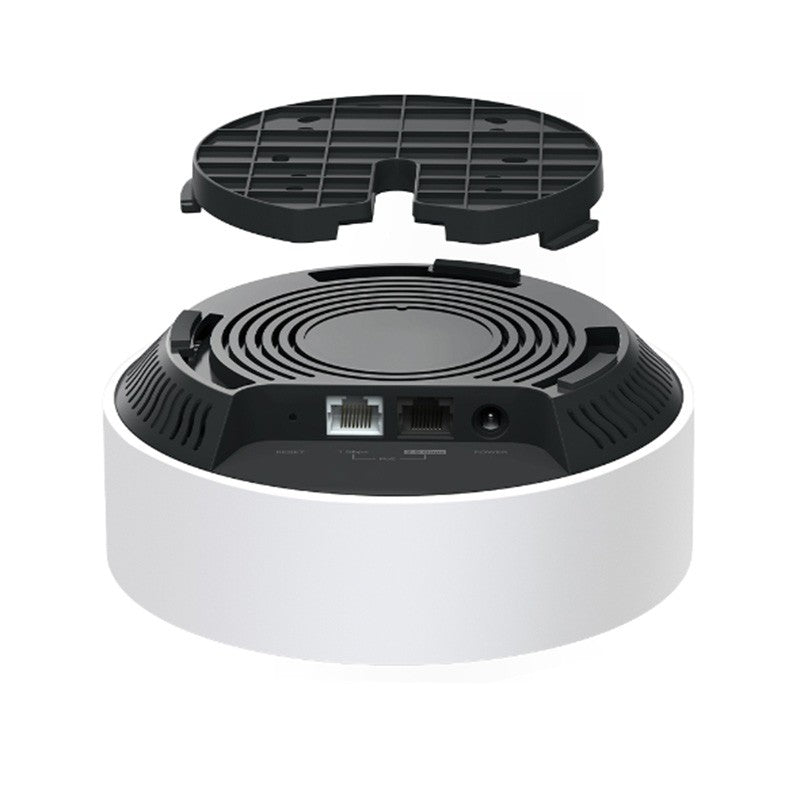

Ethernet Ports |
1× 2.5 Gbps port + 1× Gigabit port *Per Deco Unit Supports WAN/LAN auto-sensing |
SECURITY |
|
WiFi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
Network Security |
SPI Firewall Access Control
HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE |
|
Protocols |
IPv4 IPv6 |
Service Kits |
HomeShield |
Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
HomeShield QoS QoS by Device |
Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link |
Management |
Deco App |
TEST DATA |
|
WiFi Transmission Power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
PHYSICAL |
|
Dimensions (W×D×H) |
6.1 × 6.1 × 2.7 in (154× 154 × 68.6 mm) |
Package Contents |

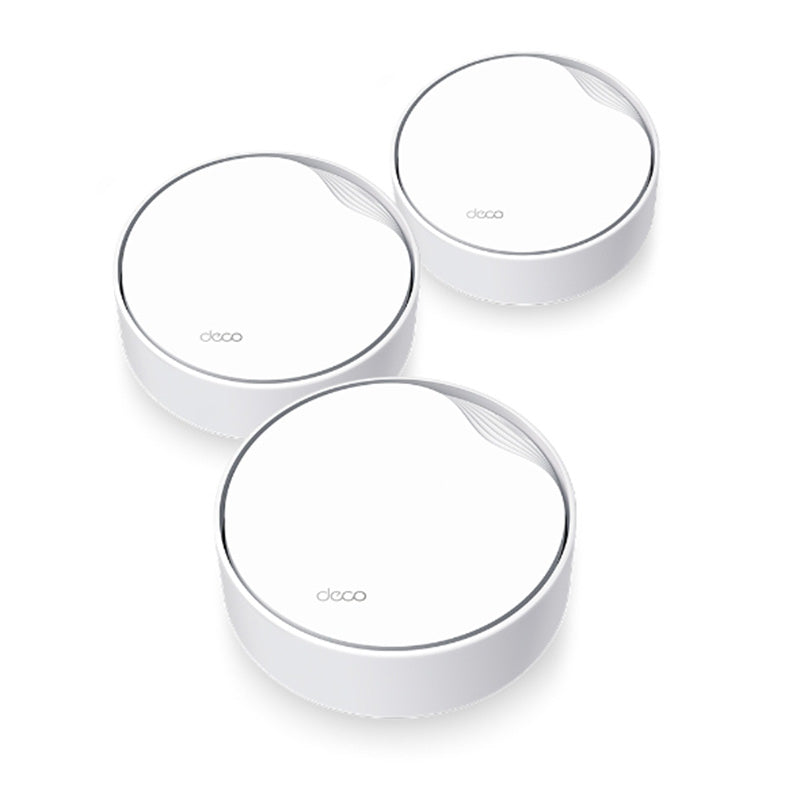

Deco X50-PoE (3-pack) 3× Deco X50-PoE units 1× RJ45 Ethernet cable 3× Power adapters Ceiling/Wall Mounting Kits Quick Installation Guide |
OTHERS |
|
System Requirements |
Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
Certifications |
CE, FCC, RoHS |
Environment |
Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
