TP-Link AX3000 Wi-Fi 6 Portable Router

Standards and Protocols

Wi-Fi 6

IEEE 802.11a/n/ac/ax 5 GHz

IEEE 802.11b/g/n/ac/ax 2.4 GHz

WiFi Speeds

AX3000

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Capacity

High Dual-Band

Allocate devices to different bands for optimal performance

Airtime Fairness

Improves network efficiency by limiting excessive occupation

4 Streams

Connect your devices to more bandwidth

Working Modes

Router Mode

USB Tethering Mode

3G/4G USB Modem Mode

Hotspot Mode (WISP Mode)

Access Point Mode

Range Extender Mode

Client Mode

SECURITY

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

• Wireguard VPN Serve

VPN Client

Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

• Wireguard VPN Client

WiFi Encryption

WPA2-PSK

WPA3-Personal

WPA/WPA2-Enterprise

HARDWARE

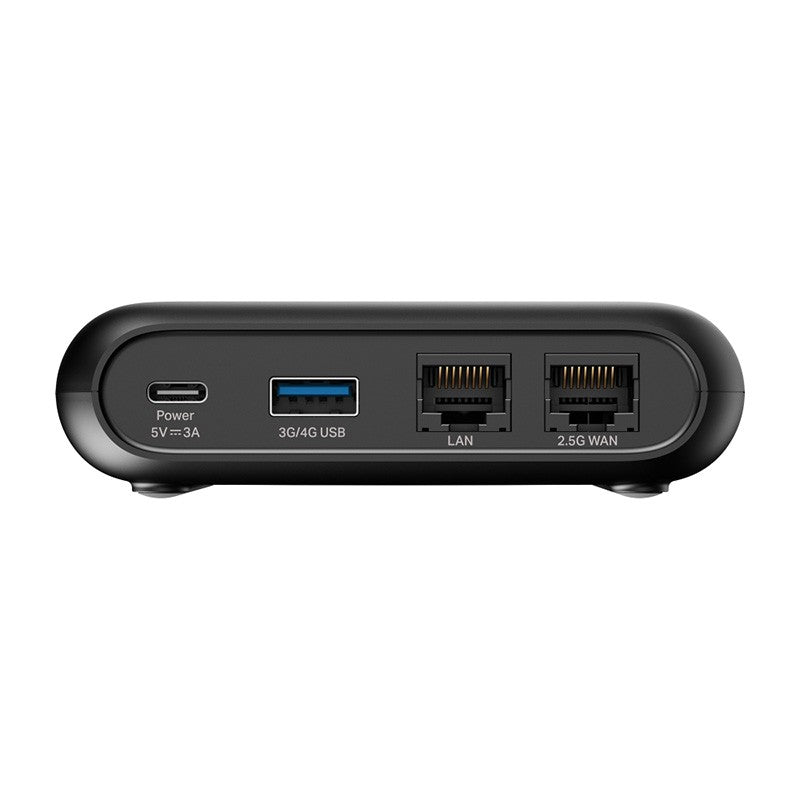

Ethernet Ports

2.5× Gigabit WAN Port

1× Gigabit LAN Port

USB Support

1× USB 3.0 Port

Buttons

WPS/Reset Button

ECO Switch

Power

5V/3A，External DC power adapter

SOFTWARE FEATURES

Quality of Service

QoS by Device

WAN Type

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Management Features

Tether App

Webpage

DHCP

DHCP Server

DHCP Client List

Address Reservation

Protocols

IPv4

IPv6

OTHER

Certifications

FCC, CE

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃   (-40℉   ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:

<20dBm(2.4 GHz)

<23dBm(5.15 GHz~5.25 GHz)

FCC:

<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

2.4GHz

11b 1M:-96dBm

11n HT20M MCS7:-73dBm

11n HT40M MCS7:-70dBm

5GHz

11a 6M:-93dBm

11ax HE20M MCS11:-63dBm

11ax HE40M MCS11:-60dBm

11ax HE80M MCS11:-59dBm

PHYSICAL

Dimensions (W×D×H)

4.1 × 3.6 × 1.2 in

(105 × 91.3 × 30 mm)

Package Content

TL-WR3002X

Power Adapter

RJ45 Ethernet Cable

USB Cable

Quick Installation Guide

Wi-Fi Info card
