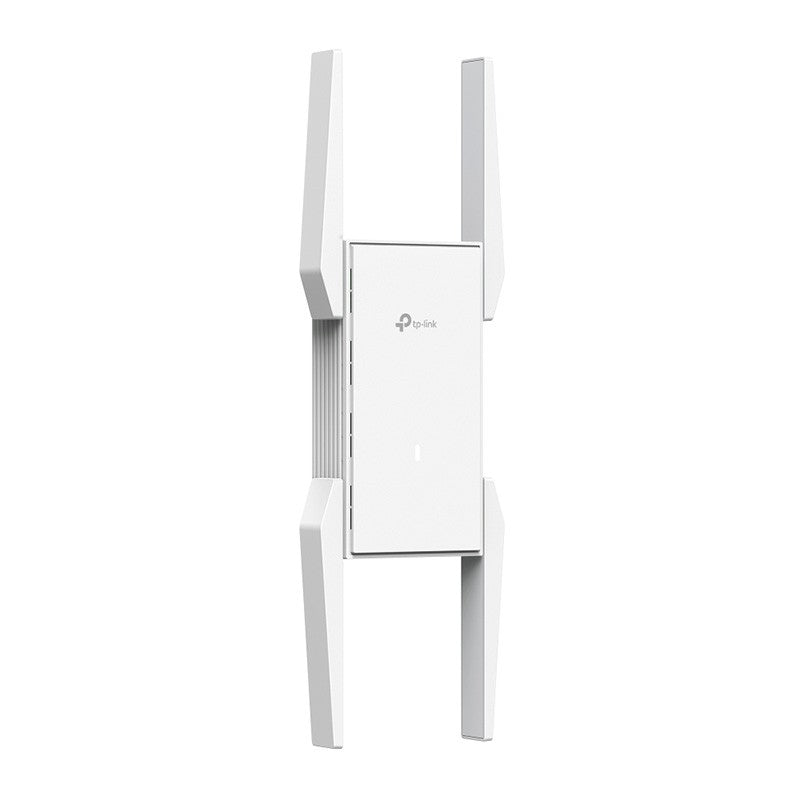

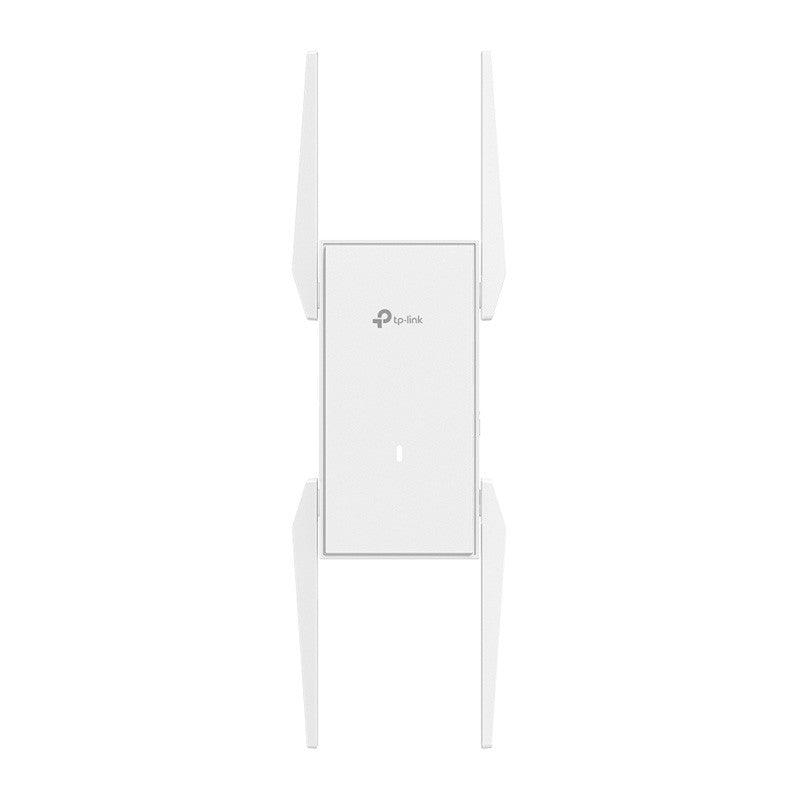

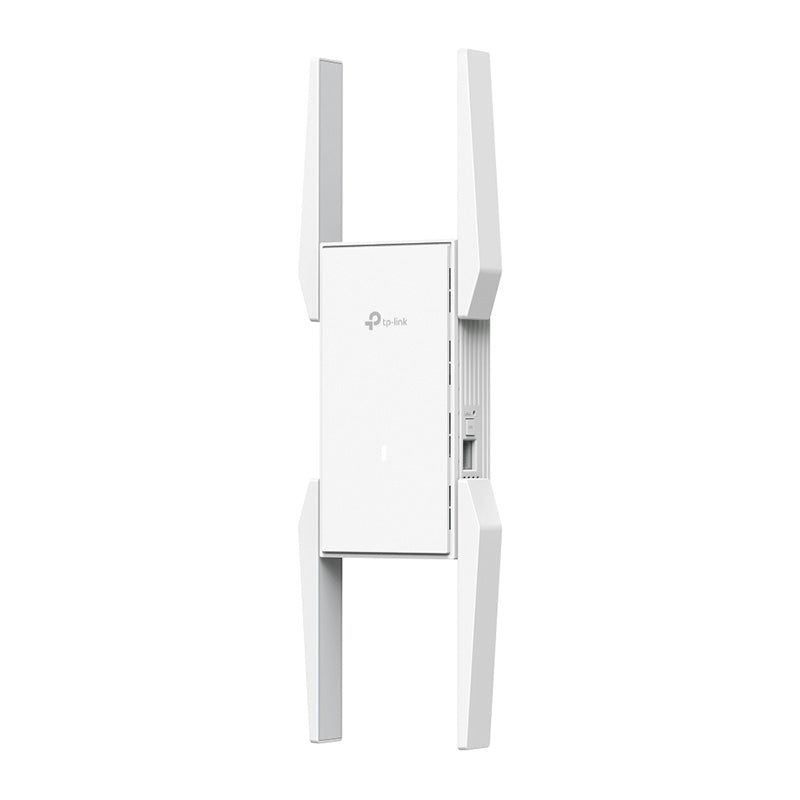

TP-Link AX5400 Mesh Wi-Fi 6 Extender

Interface

1× Gigabit Ethernet Port

Physical Security Lock

No

Button

Reset, LED

Power Supply

100-240 V ~ 50/60 Hz

Power Consumption

18 W

Dimensions

6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)

Antenna

4× External Antennas

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 4× 5 dBi

Mounting

Plug in

WIRELESS FEATURES

Coverage

140 ㎡ (1500 ft²)***

***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

Concurrent Clients

250+**

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 4804 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming§

• Beamforming

• Rate Limit

• Load Balance

• Airtime Fairness

• Band Steering

• Reboot Schedule

• Wireless Schedule

• RADIUS Accounting

• MAC Authentication

• Wireless Statistics

• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

§Omada Mesh, Seamless Roaming, and Captive Portal require an Omada SDN controller.

Transmission Power

• CE:

<20 dBm (2.4 GHz, EIRP)

<23 dBm (5 GHz, band1 & band2, EIRP)

<30 dBm (5 GHz, band3, EIRP)

• FCC:

<25 dBm (2.4 GHz)

<28 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Hardware Controller

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

Management VLAN

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification

CE, FCC, IC, RoHS, UL

Package Contents

• AX5400 Mesh WiFi 6 Extender EAP673-Extender

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.
