Manufacturer Warranty: 3 Year-
|
SPECIFICATIONS:
|
WIRELESS
|
|
|
Working Modes
|
Range Extender/Access Point
|
|
HARDWARE FEATURES
|
|
|
Ports
|
1 Gigabit Ethernet Port
|
|
Button
|
WPS Button, Reset Button
|
|
Input Power
|
100-240V~50/60Hz
|
|
Power Consumption
|
23W
|
|
Dimensions ( W x D x H )
|
4.2×1.6×13.7 in. (106.6×39.7×348.2 mm)
|
|
Antenna
|
4 External Antennas
|
|
WIRELESS FEATURES
|
|
|
Wireless Standards
|
IEEE 802.11ax 6 GHz, IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
|
|
Frequency
|
2.4GHz and 5GHz and 6GHz
|
|
Signal Rate
|
574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz, 2402 Mbps at 6 GHz
|
|
Working Modes
|
Range Extender/Access Point
|
|
Reception Sensitivity
|
6GHz:
11ax HE20 MCS0：-92dBm, 11ax HE20 MCS11：-61dBm
11ax HE40 MCS0：-89dBm, 11ax HE40 MCS11：-58dBm
11ax HE80 MCS0：-86dBm, 11ax HE80 MCS11：-55dBm
11ax HE160 MCS0：-83dBm, 11ax HE160 MCS11：-52dBm
5GHz:
11ax HE20 MCS0：-93dBm, 11ax HE20 MCS11：-62dBm
11ax HE40 MCS0：-90dBm, 11ax HE40 MCS11：-59dBm
11ax HE80 MCS0：-87dBm, 11ax HE80 MCS11：-56dBm
11ax HE160 MCS0：-84dBm, 11ax HE160 MCS11：-53dBm
2.4GHz:
11ax HE20 MCS0：-95dBm, 11ax HE20 MCS11：-64dBm
11ax HE40 MCS0：-92dBm, 11ax HE40 MCS11：-62dBm
|
|
Wireless Functions
|
LED Control, Access Control, Power Schedule, Wi-Fi Coverage
|
|
Wireless Security
|
64/128-bit WEP, WPA/WPA-PSK2 encryptions, WPA3
|
|
Transmission Power
|
FCC: 2.4GHz < 30dBm, 5GHz < 30dBm, 6GHz < 30dBm
|
|
Mesh Technology
|
EasyMesh-Compatible
|
|
OTHERS
|
|
|
Certification
|
FCC, RoHS
|
|
Package Contents
|

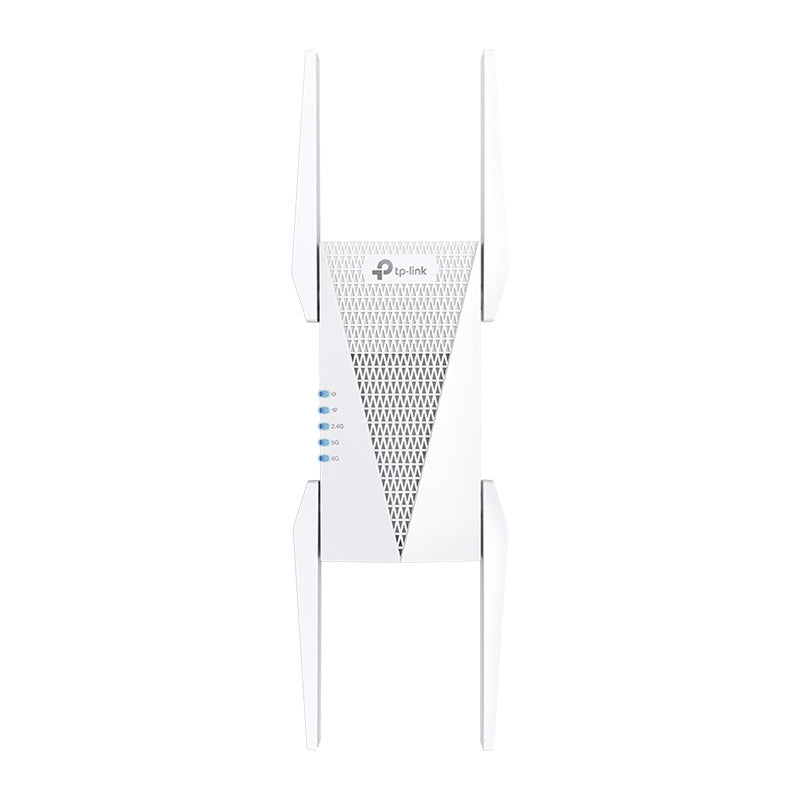

Wi-Fi Range Extender RE815XE
|
|
Quick Installation Guide
|
|
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
|
