Description
SPECIFICATIONS:
WIRELESS |
|
Standards and Protocols |
IEEE 802.11ax 6 GHz, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AXE5400 6 GHz: 2402 Mbps (802.11ax) 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
2-3 Bedroom Houses 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM Improves transmission power to strengthen signal coverage |
WiFi Capacity |
Very High Tri-Band Allocate devices to different bands for optimal performance
OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness Improves network efficiency by limiting excessive occupation
DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth |
Working Modes |
Router Mode Access Point Mode |
SECURITY |
|
Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network |
1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
VPN Server |
OpenVPN Server PPTP VPN Server L2TP VPN Server |
VPN Client |
Open VPN Client PPTP VPN Client L2TP VPN Client WiFi Encryption WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
HARDWARE |
|
Processor |
1.7 GHz Quad-Core CPU |

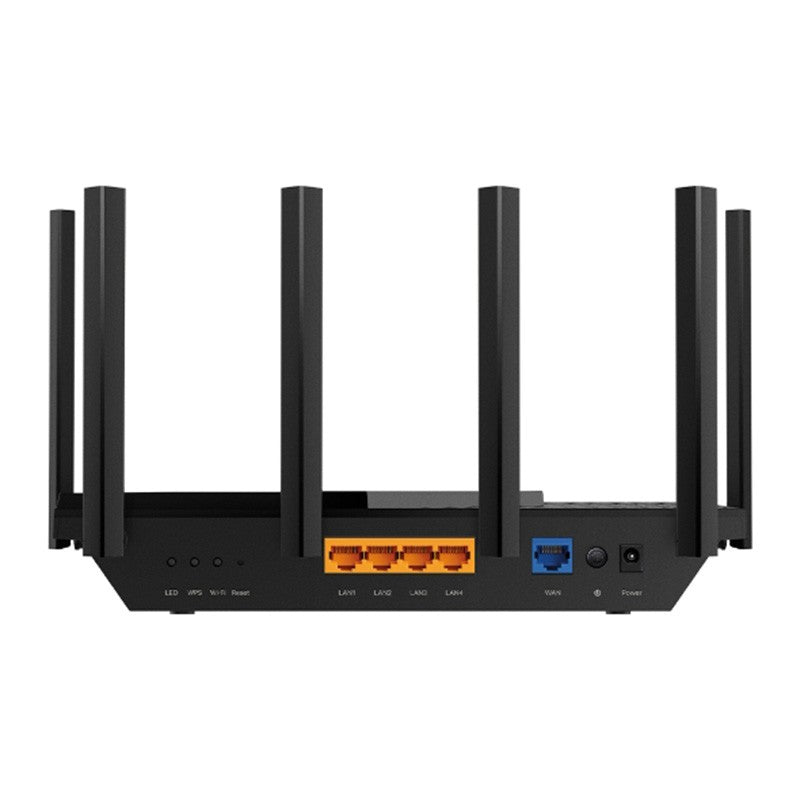

Ethernet Ports |
1× Gigabit WAN Port 4× Gigabit LAN Ports |
USB Support |
1× USB 3.0 Port
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
Buttons |
Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power |
12 V ⎓ 2.5 A |
SOFTWARE |
|
Protocols |
IPv4 IPv6 |
Service Kits |
HomeShield |
OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
QoS by Device |
Cloud Service |
Auto Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering DMZ UPnP Virtual Server |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link NO-IP DynDNS |
Management Features |
Tether App Webpage |
OTHER |
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications |
FCC, RoHS |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
TEST DATA |
|
WiFi Transmission Power |
FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) |
WiFi Reception Sensitivity |
2.4 GHz: 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm 5 GHz: 11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm 11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm 11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm 11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm 6 GHz: 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm |
PHYSICAL |
|
Dimensions (W×D×H) |
10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
Package Content |
Wi-Fi Router Archer AXE75 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHERS |
|
Notes |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, 1024-QAM, and HE160 require clients to also support the corresponding features. Seven 160MHz channels may not be all available in the 6 GHz band in some regions/countries due to regulatory restrictions. |
