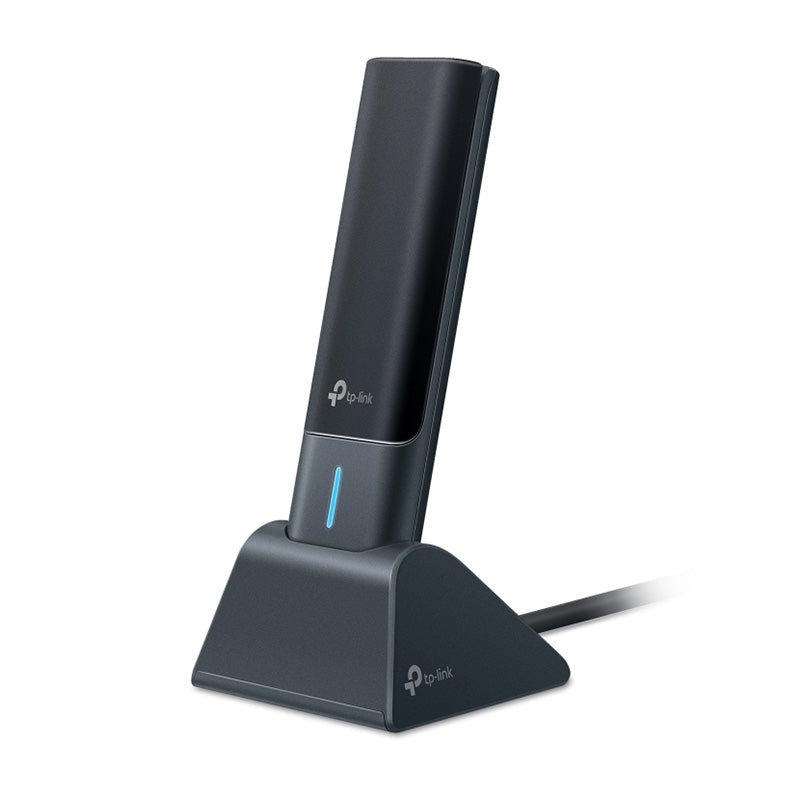

TP-Link AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter

LED

Status

Dimensions

30.5 × 14.8 × 111.7 mm (1.2 × 0.58 × 4.4 in)

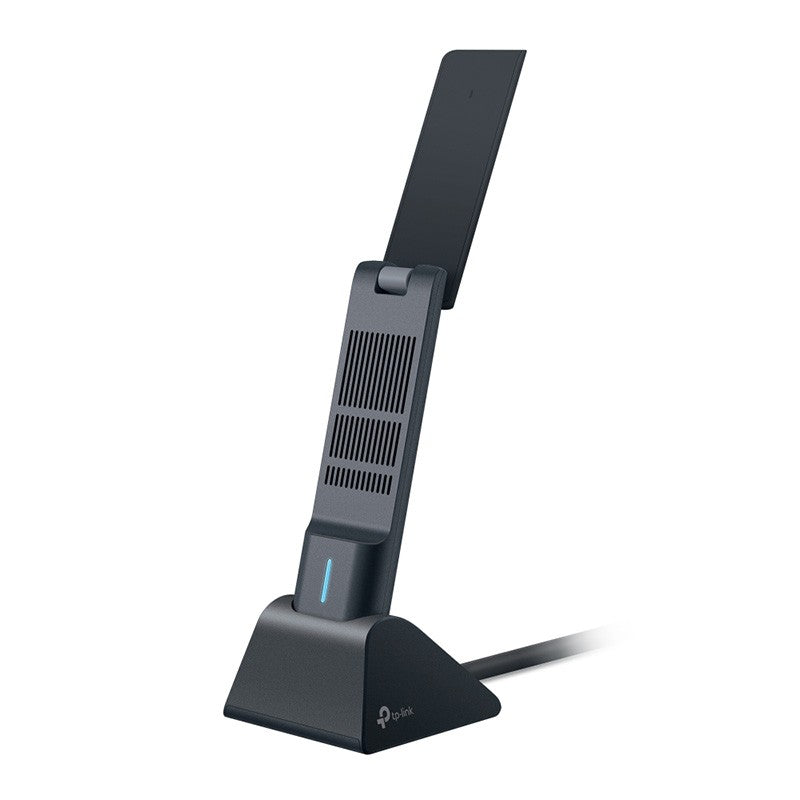

Antenna

2× High-Gain Dual-Band Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax

Signal Rate

6GHz:

11ax: Up to 2402 Mbps(dynamic)

5 GHz:

11ax: Up to 2402 Mbps(dynamic)

11ac: Up to 1732 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz:

11ax: Up to 574 Mbps(dynamic)

11n: Up to 400 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Transmit Power

6 GHz: 16 dBm(FCC)

5 GHz: 15 dBm(FCC)

2.4 GHz : 15 dBm(FCC)

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS

Certification

FCC, CE, RoHS

Package Contents

AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Archer TXE70UH

Quick Installation Guide

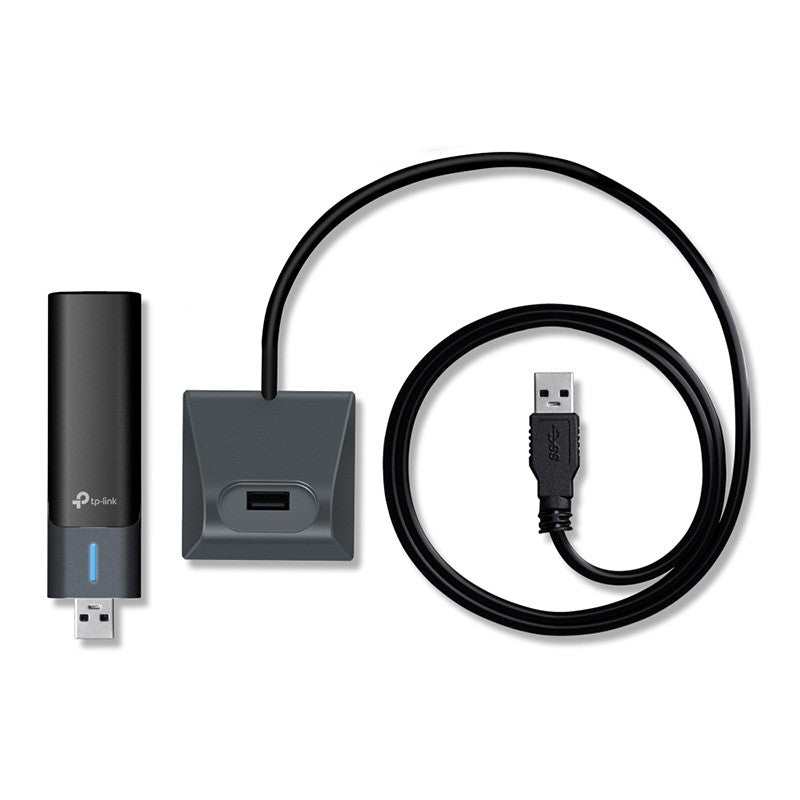

USB 3.0 Cradle

System Requirements

Supported operating systems include Windows 10, 11

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Notes

*Some features may require software upgrades or subscriptions.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
