TP-Link BE3600 Dual-Band Wi-Fi 7 Router

WiFi Speeds

BE3600

• 5 GHz: 2882 Mbps (802.11be)

• 2.4 GHz: 688 Mbps (802.11be)

WiFi Range

3 Bedroom Houses

4× External Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi   range

WiFi Capacity

High

Dual-Band

Allocate devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

4 Streams

Connect your devices to more bandwidth

Advanced Features

• Multi-Link Operation (MLO)

• 4K-QAM

• Multi-RUs

• EasyMesh-Compatible

• Works with Alexa and Google Assistant

• IoT Network

Wireless Mode

• Router Mode

• Access Point Mode

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

• WireGuard VPN Server

VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

• WireGuard VPN Client

WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

HARDWARE

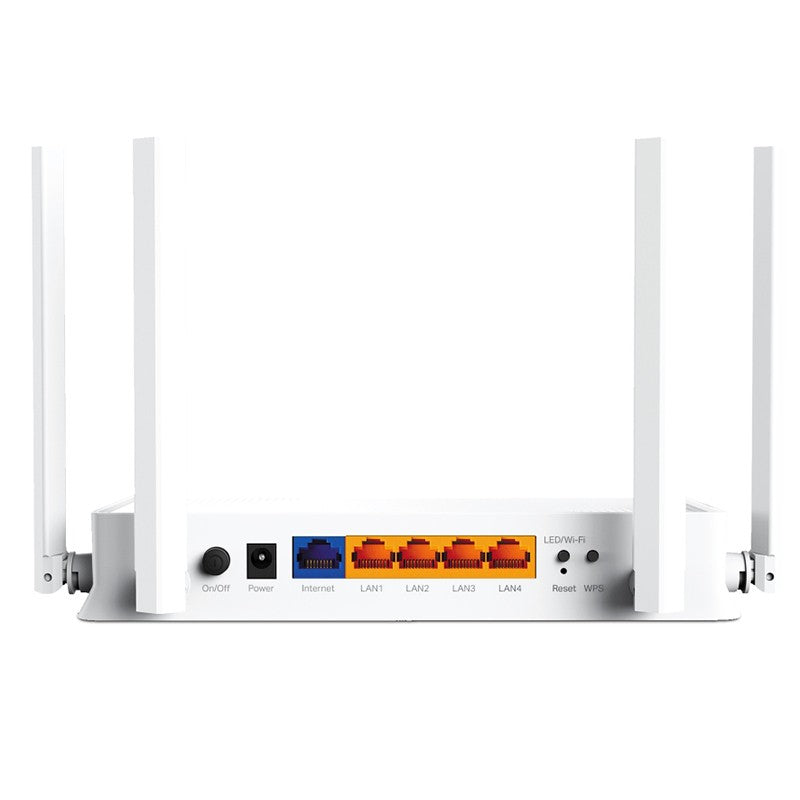

Ethernet Ports

• 1× 1 Gbps WAN

• 4× 1 Gbps LAN

Buttons

• Power On/Off Button

• LED/Wi-Fi Button

• WPS Button

• Reset Button

Power

12 V ⎓ 2 A   (US)

12 V ⎓ 1.5   A (EU)

SOFTWARE

Protocol

• IPv4

• IPv6

Service Kit

HomeShield

EasyMesh

Compatible with EasyMesh

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Type

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service

QoS by Device

Cloud Service

• Auto Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP

• Address Reservation

• DHCP Client List

• Server

DDNS

• TP-Link

• NO-IP

• DynDNS

Management Features

• Tether App

• Webpage

OTHER

Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DNS

DNS

• Port: 53   Protocol: TCP & UDP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

App management

Manage and configure device through app

• Port: 20001   Protocol: TCP

• Port: 30001   Protocol: TCP

• Port: 20002   Protocol: UDP

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

CE, FCC, RoHS

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)

• Operating Humidity: 10%~90% non-condensing
