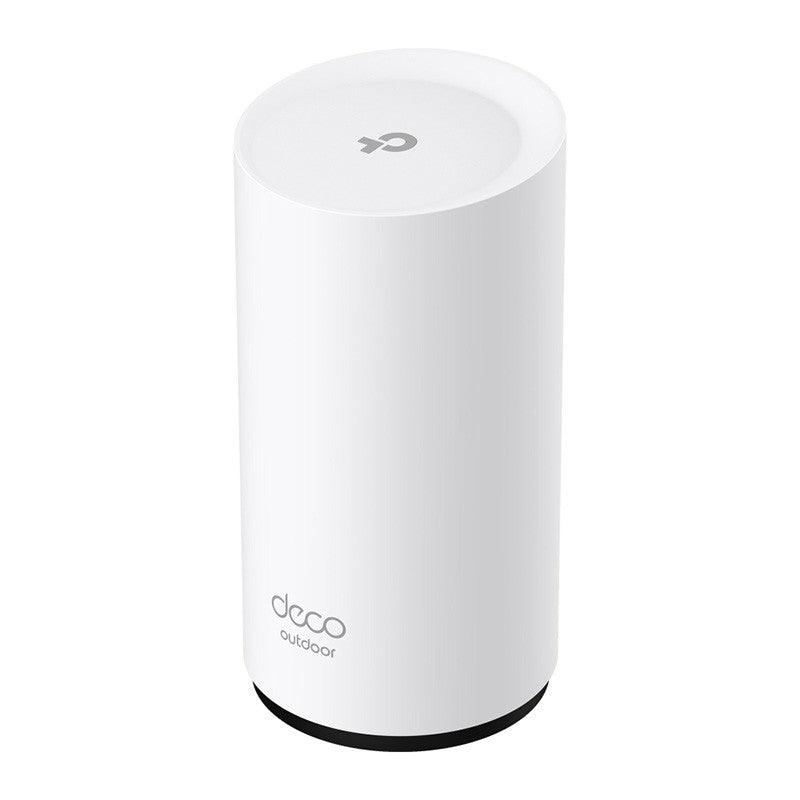

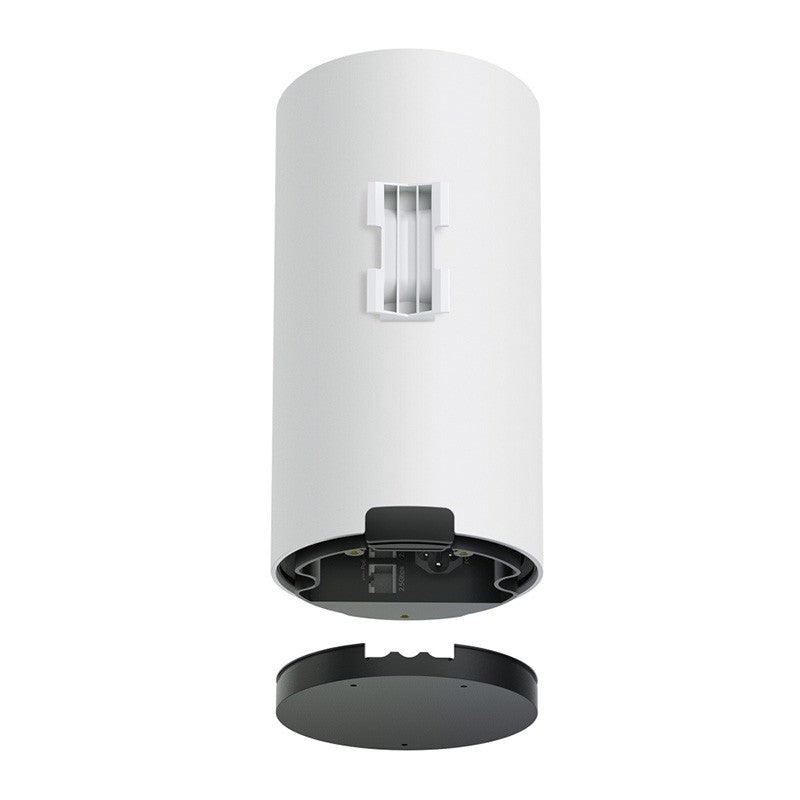

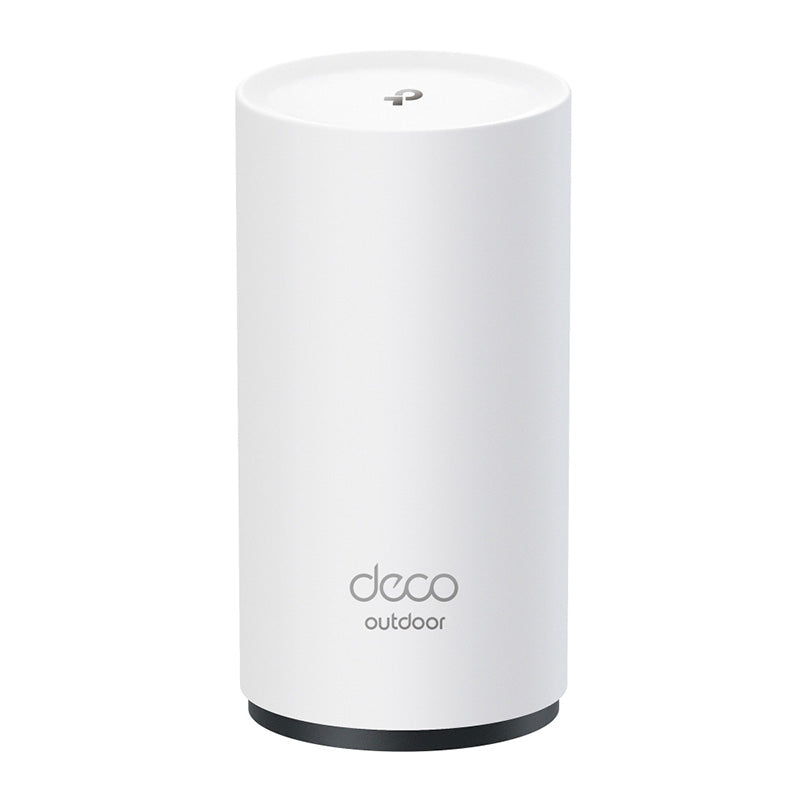

TP-Link BE5000 Outdoor / Indoor Mesh WiFi 7 Router )

Standards and Protocols

Wi-Fi 7

IEEE 802.11be/ax/ac/n/a 5 GHz

IEEE 802.11be/ax/n/b/g 2.4 GHz

WiFi Speeds

BE5000

5 GHz: 4324 Mbps (802.11be)

2.4 GHz: 688 Mbps (802.11be)

* The 240MHz bandwidth may be unavailable in the 5G band in Australia due to regulatory restrictions.

WiFi Range

Broader Whole Home Coverage

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh

Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Performance Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

Very High

Dual-Band

Distribute devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple WiFi 7 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes

Router Mode

Access Point Mode

Advanced Features

• Multi-Link Operation (MLO)

• 240 MHz Channel

• 4K-QAM

• Multi-RUs

• Works with Alexa and Google Assistant

SECURITY

Network Security

SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

Effective Time

Bandwidth Control

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP/IPSec VPN Server

VPN Client

• OpenVPN Client

• PPTP VPN Client

• L2TP/IPSec VPN Client

WiFi Encryption

WPA-Personal

WPA2-Personal

WPA3-Personal

HARDWARE

Ethernet Ports

• 2× 2.5 Gbps

(PoE and WAN/LAN auto-sensing)

Buttons

1× Reset Button

1× WPS

Power

Power Input

IEEE 802.3at PoE or 100-240V~50/60Hz 0.5A AC

SOFTWARE

Advanced Features

• Reboot Schedule

• Tapo/Kasa Onboarding

• IoT network & Device Isolation

• Static Routing Function

• Node/Band Connection Preference

Protocols

IPv4

IPv6

Service Kits

HomeShield

Parental Controls

HomeShield Parental Controls

Youtube Restriction

SafeSearch

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

HomeShield QoS

QoS by Device

Cloud Service

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

Management Features

Deco App

PHYSICAL

Dimensions (W×D×H)

4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm)

Package Content

Deco BE25-Outdoor Unit

1 Deco BE25-Outdoor unit

1 RJ45 Ethernet cable

1 Power adapter

1 Installation Guide

1 Wall/Pole Mounting Kit (Pole Mounting Strap, Plastic Wall Anchors, Self-tapping Screws )

OTHERS

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: -30°C~60°C (-22 °F~140 °F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH
