Description
SPECIFICATIONS:
WIRELESS |
|
Standards |
Wi-Fi 7 IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
BE5000 5 GHz: 4324 Mbps (802.11be) 2.4 GHz: 688 Mbps (802.11ax)
* The 240MHz bandwidth may be unavailable in the 5G band in Australia due to regulatory restrictions. |
WiFi Range |
Broader Whole Home Coverage TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
4× High-Performance Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas |
WiFi Capacity |
Very High Dual-Band Distribute devices to different bands for optimal performance
OFDMA Simultaneously communicates with multiple WiFi 7 clients
6 Streams More than enough bandwidth for connected devices |
Working Modes |
Router Mode Access Point Mode |
Advanced Functions |
• Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant |
SECURITY |
|
Network Security |
SPI Firewall Access Control
HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
Effective Time Bandwidth Control |
VPN Server |
• OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server |
VPN Client |
• OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client |
WiFi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE |
|

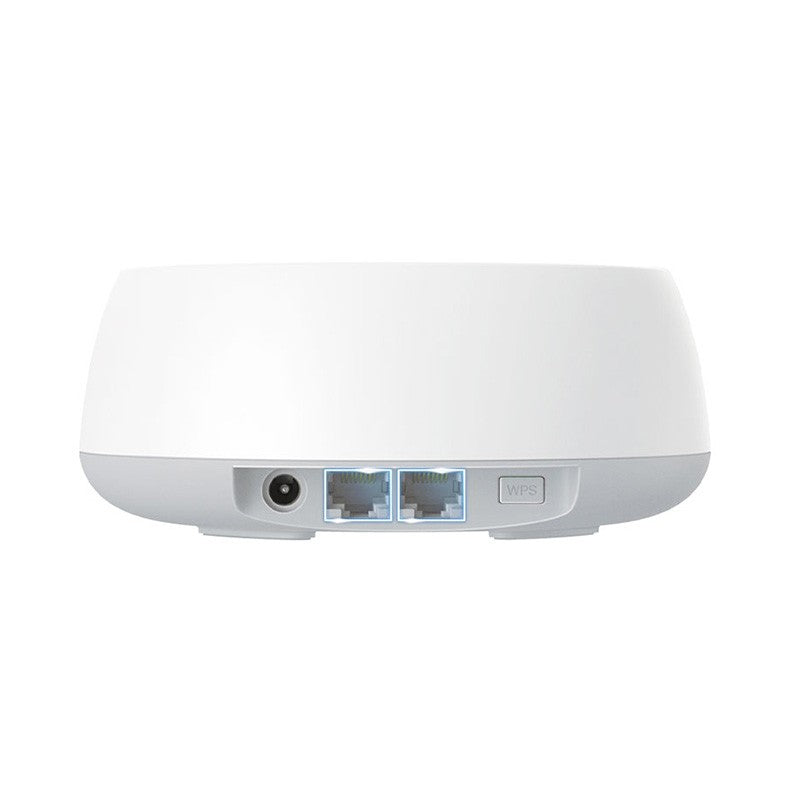

Ethernet Ports |
• 2× 2.5 Gbps
*Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons |
1× Reset Button 1× WPS |
SOFTWARE |
|
Advanced Features |
• Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Routing Function • Node/Band Connection Preference |
Protocols |
IPv4 IPv6 |
Service Kits |
HomeShield |
Parental Controls |
HomeShield Parental Controls Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
HomeShield QoS QoS by Device |
Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link |
Management |
Deco App |
PHYSICAL |
|
Dimensions (W×D×H) |
5.91 × 5.91 × 2.44 in (150 × 150 × 62 mm) |
Package Contents |
Deco BE25 (1-pack) 1 Deco BE25 unit 1 RJ45 Ethernet cable 1 Power adapter Quick Installation Guide |
OTHERS |
|
Certifications |
CE, FCC, RoHS |
Environment |
Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
OTHERS |
|
Notes |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 150 devices is based on laboratory test data, which analyzed the connections of different devices on the 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. △Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. §2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. *HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield. Some features are under development and will be supported with subsequent software updates. ☆Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions. This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification. Further software upgrades for feature availability may be required. Google and Google Home are trademarks of Google LLC. |
