TP-Link Deco X50 PoE+ WiFi 6 Router )

Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX3000

5 GHz: 2402 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

1-3 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh

Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

High

Dual-Band

Distribute devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 6 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes

Router Mode

Access Point Mode

SECURITY

Network Security

SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WPA-Personal

WPA2-Personal

WPA3-Personal

HARDWARE FEATURES

Power Supply

• 802.3at PoE

• 12V DC

(EU Version: 12V/1.2A DC. US Version: 12V/1.5A DC).

Note: DC adapter is included in the package

HARDWARE

Button

Reset Button

Ethernet Ports

1× 2.5 Gbps port + 1× Gigabit port

*Per Deco Unit

Supports WAN/LAN auto-sensing

SOFTWARE

Protocols

IPv4

IPv6

Service Kits

HomeShield

Parental Controls

HomeShield Parental Controls

Youtube Restriction

SafeSearch

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

HomeShield QoS

QoS by Device

Cloud Service

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

Management

Deco App

TEST DATA

WiFi Transmission Power

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H)

6.1 × 6.1 × 2.7 in

(154× 154 × 68.6 mm)

Package Contents

Deco X50-PoE (1-pack)

1× Deco X50-PoE unit

1× RJ45 Ethernet cable

1× Power adapter

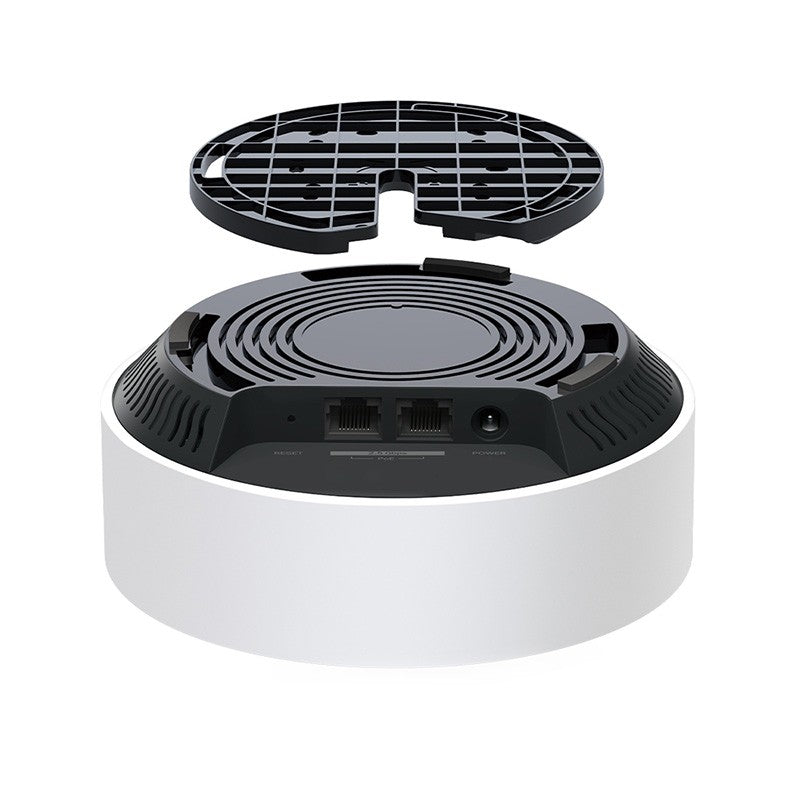

Ceiling/Wall Mounting Kits

Quick Installation Guide

OTHERS

System Requirements

Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: 0°C~40°C (32 °F~104 °F)

Storage Temperature: -40°C~60°C (-40 °F~140 °F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a   result of network conditions, client limitations, and environmental factors,   including building materials, obstacles, volume and density of traffic, and client location.

Clients need to support 802.11k/v/r and may require additional setup. Performance may   vary depending on the client device.

^△Use of Wi-Fi 6, and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due   to regulatory restrictions.

^§2.5   Gbps internet speeds require compatible service plans and equipment. All   WAN/LAN ports will operate as either WAN or LAN ports. Only one port can   serve as a WAN port at a time.

*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

^☆Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11ax specification.

Further software upgrades for feature availability may be required.
