Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
VDSL2 Standards |
ITU G.993.2, Up to 35b profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
ADSL Standards |
Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) |
ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis) |
ADSL2+ Standards |
ITU-T G.992.5 |
WIRELESS |
|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX5400 5 GHz: 4804 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 4× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity |
High Dual-Band Distribute devices to different bands for optimal performance
MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
OFDMA Simultaneously communicates with multiple WiFi 6 clients
4 Streams More than enough bandwidth for connected devices |
Working Modes |
DSL (only on Deco X73-DSL) Router Access Point |
HARDWARE |
|
Ethernet Ports |
4× Gigabit Ports Per Deco X73-DSL Unit *All support WAN/LAN auto-sensing |
Buttons |
RESET Button |
Ports and Connections |

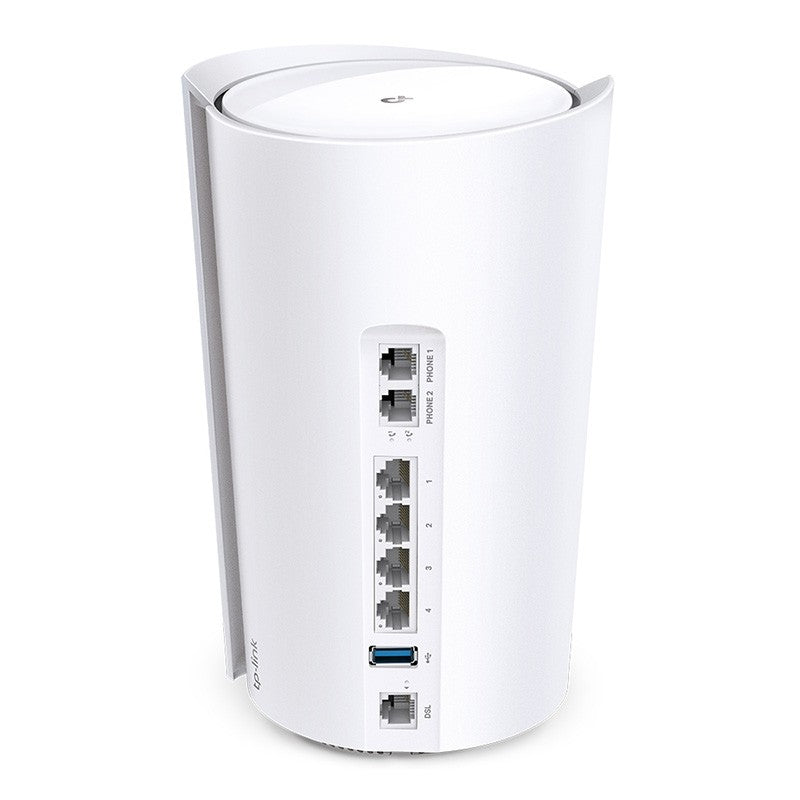

1 USB 3.0 port 1 * DSL port (RJ-11) 2 * FXS port (RJ-11) 4 * Gigabit RJ45 auto-sensing WAN/LAN
Compatibility VDSL 2 / ADSL 2+ / ADSL 2 / ADSL |
SECURITY |
|
WiFi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
Network Security |
SPI Firewall Access Control
HomeShield Security§ Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
SOFTWARE |
|
Protocols |
IPv4 IPv6 |
Service Kits |
HomeShield |
WAN Types |
Dynamic IP Static IP PPPoE L2TP PPTP *available on all units
PPPoA IPoA DS-Lite *available on Deco X73-DSL |
Quality of Service |
HomeShield QoS QoS by Device |
Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link |
Management |
Deco App |
TEST DATA |
|
WiFi Transmission Power |
CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) |
PHYSICAL |
|
Dimensions (W×D×H) |
Deco X73-DSL: 5.1 × 4.8 × 8.3in (130 × 123 × 210.5 mm) |
Package Contents |
Deco X73-DSL Unit 1 x RJ45 Ethernet Cable 2 x RJ11 DSL Cables 1 x External DSL Splitter 1 x Power Adapter Telephony Feature Guide Quick Installation Guide |
OTHERS |
|
Certification |
Deco X73-DSL: CE, RoHS, RCM |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
