Description

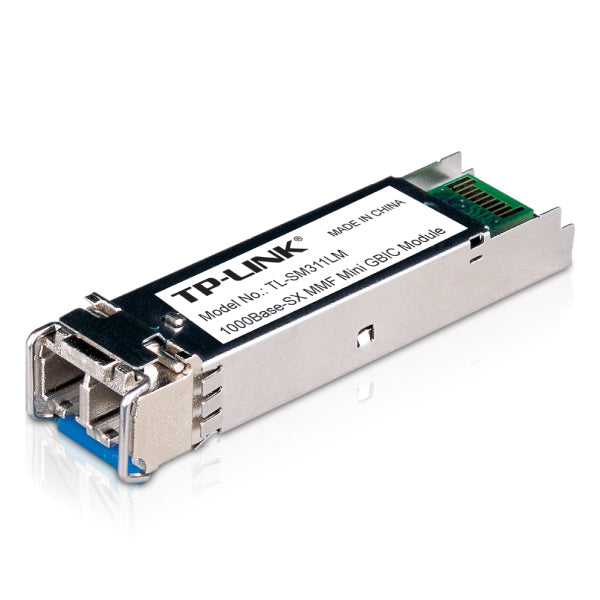

TL-SM311LM Gigabit SFP module Multi-mode MiniGBIC LC interface Up to 550/275m distance
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
SPECIFICATIONS:
Features |
Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC220L |
Standards and Protocols |
IEEE 802.3z, CSMA/CD, TCP/IP |
Wave Length |
850nm |
Cable |
Multi-mode Fiber |
Power Supply |
3.3V |
Fiber Type |
50/125m or 62.5/125m Multi-mode |
Max. Cable Length |
550m |
Data Rate |
1.25Gbps |
Port Type |
LC/UPC |
Safety & Emission |
FCC, CE |
Environment |
Operating Temperature: 0ƒ~70ƒ (32‰~158‰) Storage Humidity: 5%~90% non-condensing |
