Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface |

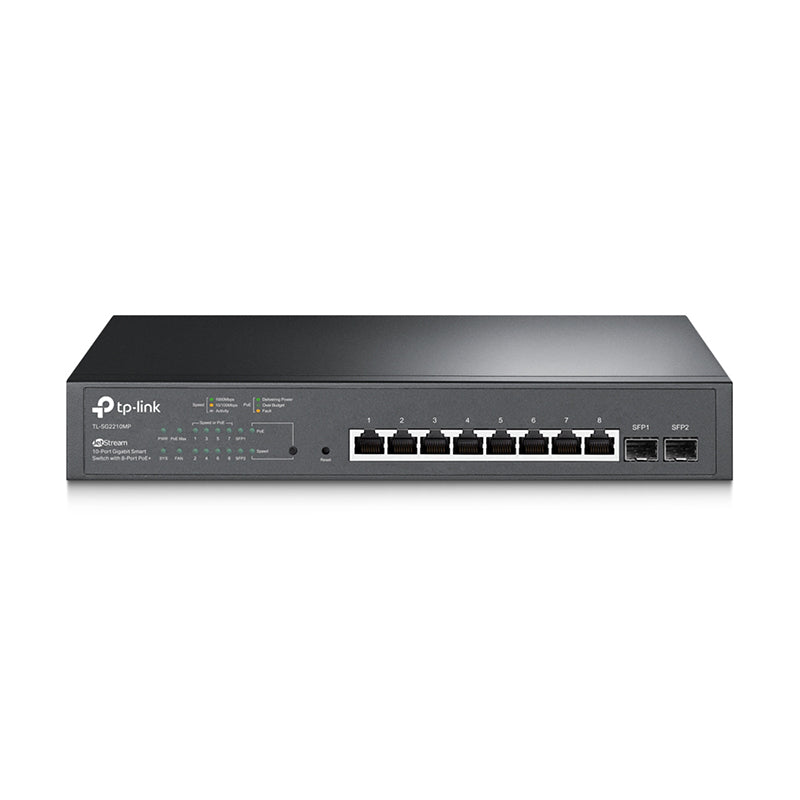

8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) 2× 100/1000 Mbps SFP Slots |
Network Media |
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF |
Fan Quantity |
1 |

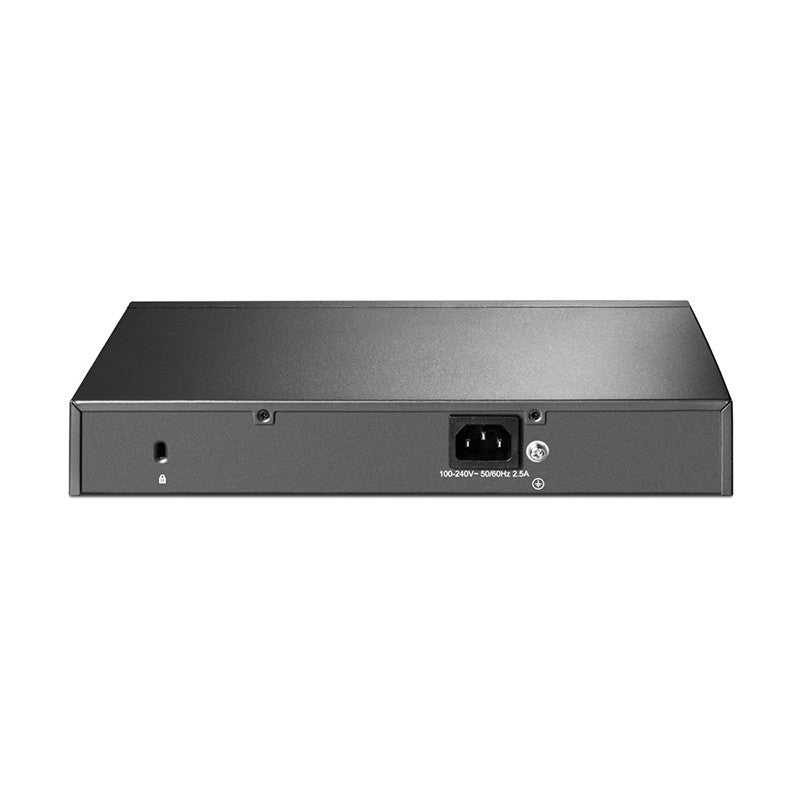

Physical Security Lock |
Yes |
Power Supply |
100-240V AC, 50/60Hz |
PoE+ Ports(RJ45) |
Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 150 W |
PoE Ports (RJ45) |
Standard: 802.3at/af compliant PoE+ Ports: 8 Ports PoE Power Budget: 150 W* |
Dimensions ( W x D x H ) |
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
Mounting |
Desktop, 13" or 19" 1U rack mountable |
Max Power Consumption |
12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 W PD connected) |
Max Heat Dissipation |
41.6 BTU/h (with no PD connected) 539.4 BTU/h (with 150 W PD connected) |
PERFORMANCE |
|
Switching Capacity |
20 Gbps |
Packet Forwarding Rate |
14.9 Mpps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
|
Quality of Service |
802.1p CoS/DSCP priority 8 priority queues
Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control - Port/Flow based Rating Limit
Smoother Performance
Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
L2 and L2+ Features |
DHCP Relay - DHCP VLAN Relay
DHCP L2 Relay Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect
Loopback Detection Flow Control - 802.3x Flow Control
Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both
Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
IPv4, IPv6 shared multicast groups (511 groups max.) IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config
Multicast VLAN Registration (MVR) Multicast Filtering MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config
Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6 IPv6 neighbour discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6
IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
VLAN |
VLAN Group - Max. 4K VLAN Groups
802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN |
Access Control List |
Support up to 230 entries Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday
Time-based ACL MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type
IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS
IPv6 ACL Combined ACL Rule Operation - Permit/Deny
Policy Action - Mirror - Rate Limit - Redirect - QoS Remark
ACL Rules Binding - Port Binding - VLAN Binding
Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
Security |
AAA 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability
IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection
IP Source Guard - 253 Entries - Source IP+Source MAC
IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode
Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
IPv6 |
IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
Advanced Features |
Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule |
MIBs |
MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
MANAGEMENT |
|
Omada App |
Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) OC300 OC200 Omada Software Controller |
Centralized Management |
Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2) Omada Hardware Controller OC300 Omada Hardware Controller OC200 Omada Software Controller |
Cloud Access |
Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2) OC300 OC200 Omada Software Controller |
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2) |
Management Features |
Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration • CPU Monitoring Cable Diagnostics EEE SNTP System Log |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
TL-SG2210MP Power Cord Installation Guide Rackmount Kit Rubber Feet |
Environment |
Operating Temperature: 0–50 ℃ (32–122 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
