Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface |
16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2× Combo Gigabit SFP Ports |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m 1000BASE-X MMF, SMF |
Fan Quantity |
2 Fans |
Physical Security Lock |
Yes |

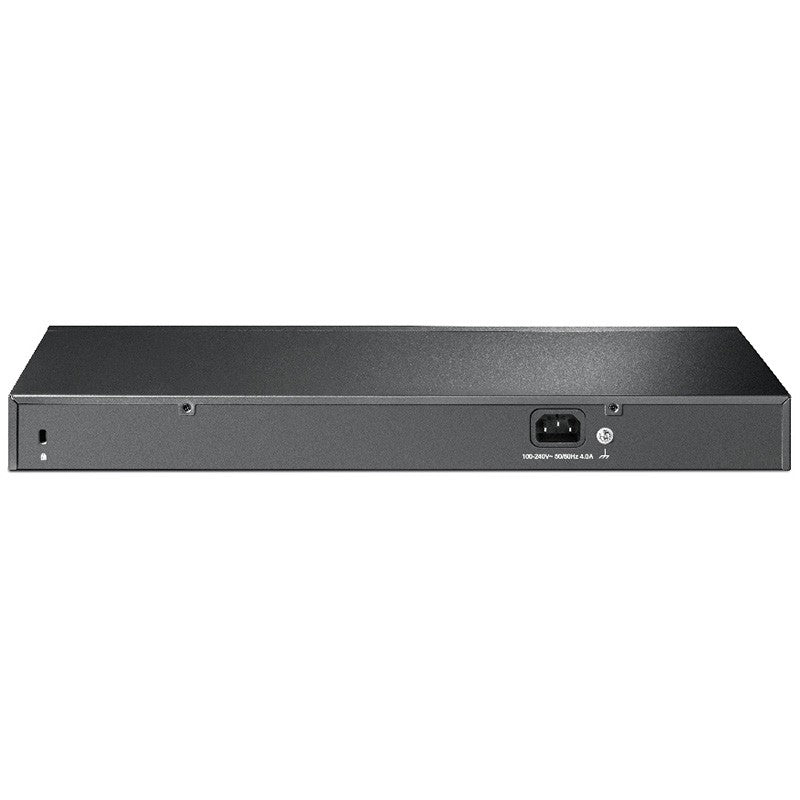

Power Supply |
100–240V AC, 50/60 Hz |
PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant PoE+ Ports: Ports 1–16 Power Supply: 250 W |
Dimensions ( W x D x H ) |
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Mounting |
Rack Mountable |
Max Power Consumption |
21.4 W (220/50Hz. no PD connected) 296.3 W (220/50Hz. with 250 W PD connected) |
Max Heat Dissipation |
72.97 BTU/h (no PD connected) 1010.38 BTU/h (with 250 W PD connected) |
PERFORMANCE |
|
Switching Capacity |
36 Gbps |
Packet Forwarding Rate |
26.78 Mbps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
10 KB |
SOFTWARE FEATURES |
|
Quality of Service |
Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features |
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
VLAN |
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management |
Web-based GUI Easy Smart Configuration Utility |
Transmission Method |
Store-And-Forward |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
TL-SG1218MPE Power Cord Installation Guide Rackmount Kit Rubber Feet |
Environment |
Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
