Description

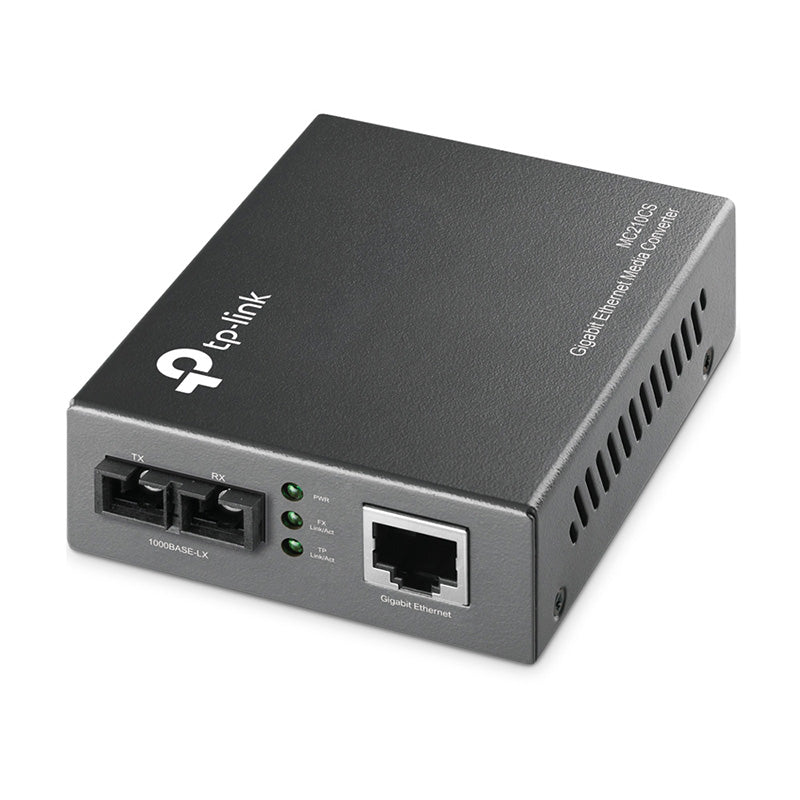

TP Link MC210CS Gigabit Single-Mode Media Converter
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
SPECIFICATIONS:
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
Basic Function |
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
Ports |
2× 1000M SC/UPC ports |
Wave Length |
1310nm |
Network Media 1000BASE-LX |
Single-mode Fiber |
Network Media 1000BASE-T |
UTP category 5, 5e cable (maximum 100m) |
LED Indicators |
PWR, Link/Act |
Dimensions (W*D*H) |
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
Power Supply |
External Power Adapter |
Max Power Consumption |
1.8W |
Safety & Emission |
FCC, CE, RoHS |
Package Contents |
MC210CS |
Environment |
Operating Temperature: 0℃~50℃ (32℉~122℉) |
