Description
SPECIFICATIONS:
HARDWARE FEATURES |
|
Interface |
USB 3.0 |
Dimensions ( W x D x H ) |
1.59 × 0.78 × 0.41in. (40.5 × 19.72 × 10.29mm) |
Antenna Type |
Internal |
WIRELESS FEATURES |
|
Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency |
5GHz 2.4GHz |
Signal Rate |
5GHz 11ac: Up to 867Mbps(dynamic) 11n: Up to 300Mbps(dynamic) 11a: Up to 54Mbps(dynamic)
2.4GHz 11n: Up to 400Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity |
5GHz 11a 6Mbps: -91dBm 11a 54Mbps: -76dBm 11n HT20：-71dBm 11n HT40：-70dBm 11ac HT20: -68dBm 11ac HT40: -64dBm 11ac HT80: -62dBm
2.4GHz 11b 11Mbps: -86dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -70dBm |
Transmit Power |
<23dBm (EIRP) |
Wireless Modes |
Ad-Hoc / Infrastructure Mode |
Wireless Security |
Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
OTHERS |
|
Certification |
FCC, RoHS |
Package Contents |

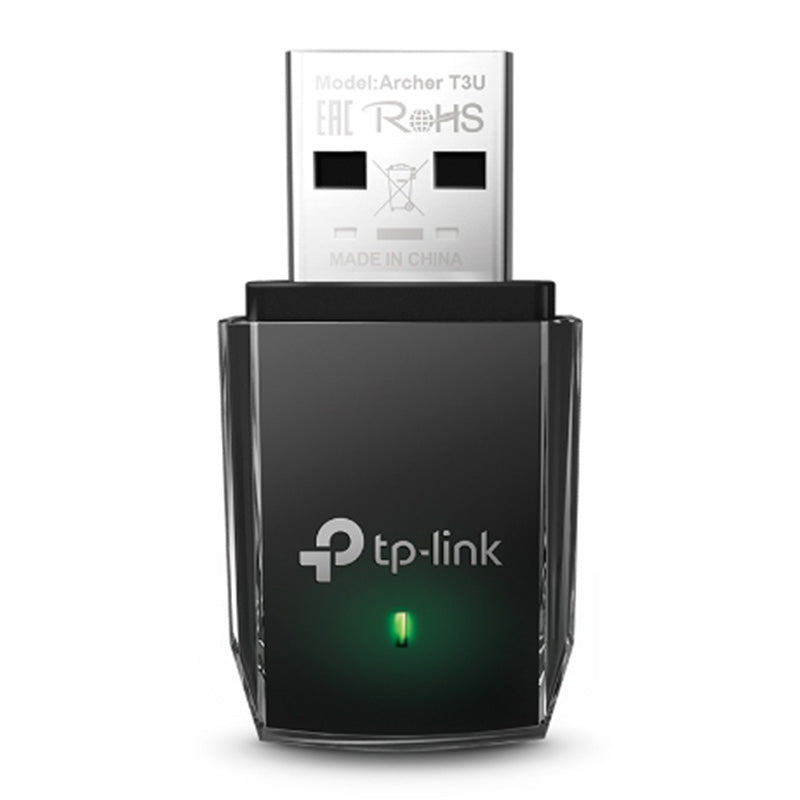

AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U Quick Installation Guide Resource CD |
System Requirements |
Windows 11/10/8.1/8/7/XP, Mac OS X 10.9-10.14 |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
