Description

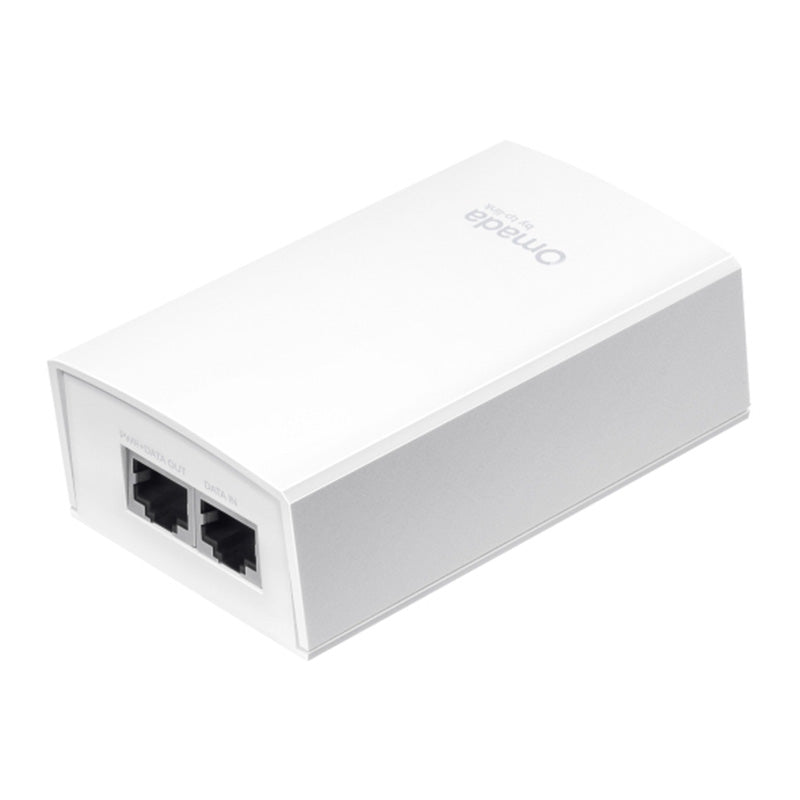

TP-Link Omada 2.5G Passive PoE Adapter
The passive PoE adapter POE5430G-M2 can be used to simultaneously supply power and transmit data to a passive PoE device.
54V passive PoE supported
Convenient wall-mount design
Auto-determine the necessary power requirements
2.5Gbps/1000Mbps/100Mbps/10Mbps speed support
Plug-and-Play, requires no configuration
Maximum power up to 30W
SPECIFICATIONS:
HARDWARE FEATURES |
|
Interface |

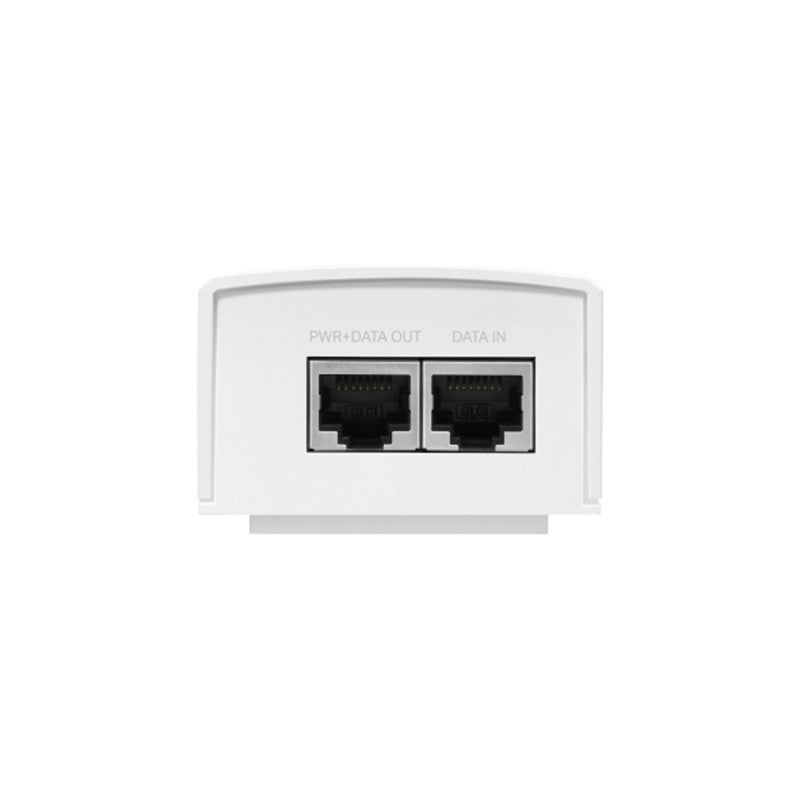

• 10/100/1000/2500 Mbps Auto-Negotiation RJ45 DATA IN port • 10/100/1000/2500 Mbps Auto-Negotiation RJ45 PWR+DATA OUT port |
Power Supply |
54V/0.56A |

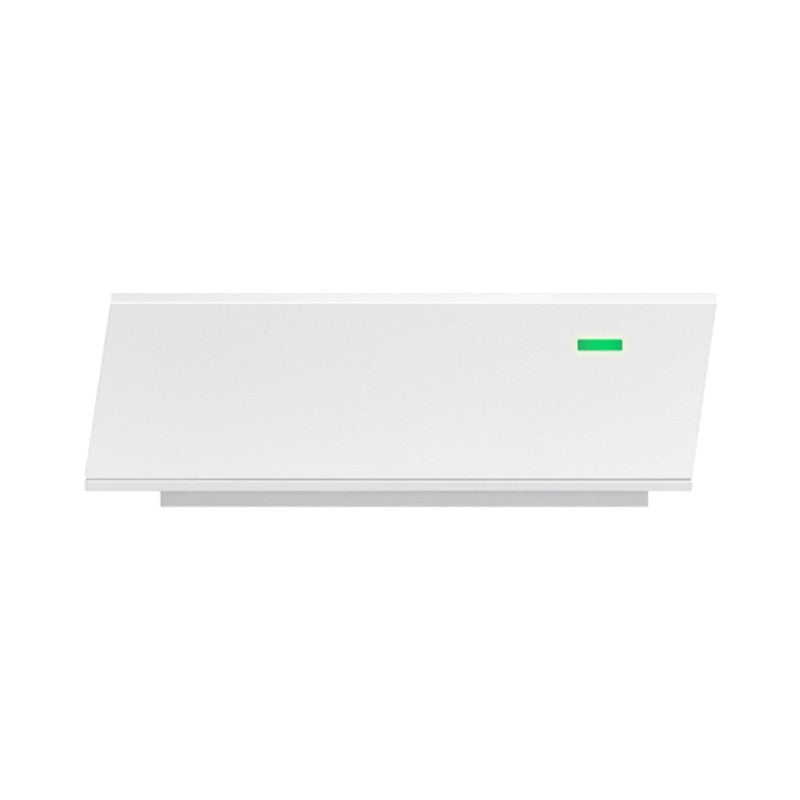

LED |
PWR |
Dimensions ( W x D x H ) |
4.33x2.24x1.42 in（110x57x36 mm ） |
OTHERS |
|
Certification |
CE, FCC, BSMI, UL, KC |
Package Content |
• POE5430G-M2 • Power Cord • Installation Guide |
Environment |
• Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
