Description

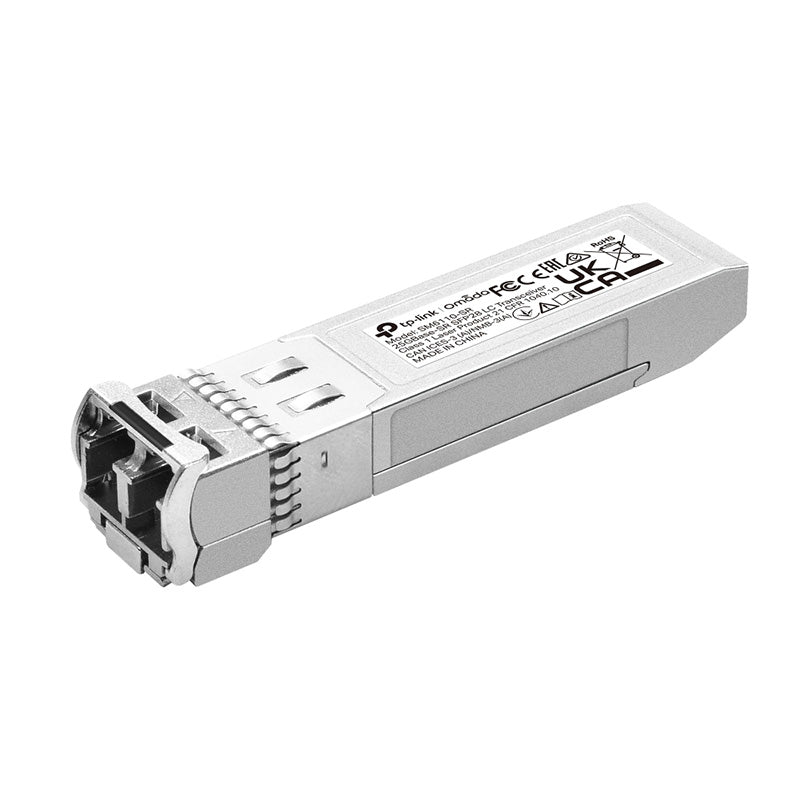

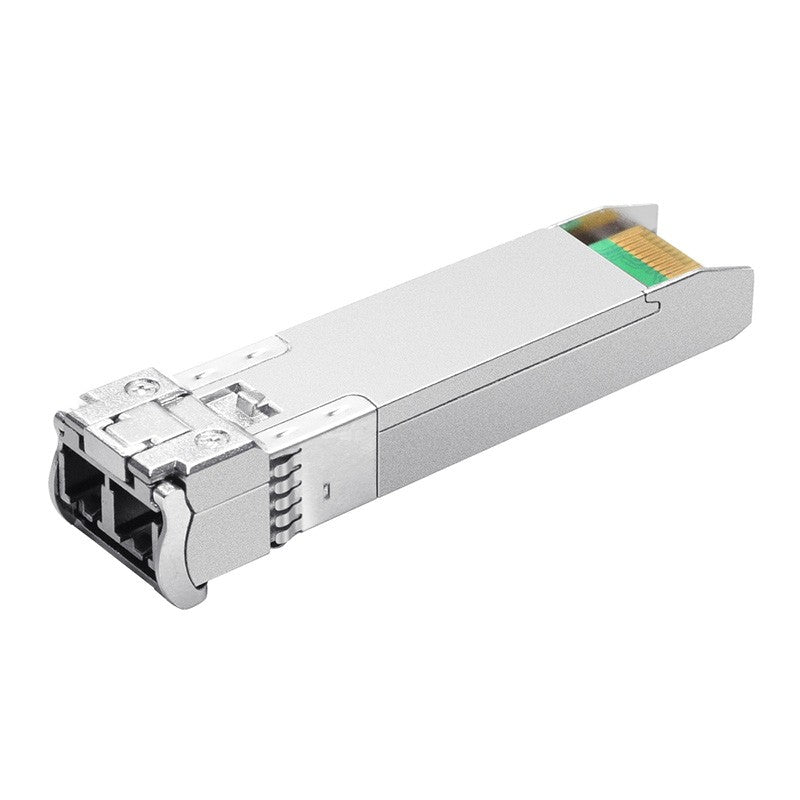

TP-Link Omada 25GBase-SR SFP28 LC Transceiver
The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.
Multi-mode SFP+/SFP28 LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Low Power Consumption no more than 1 W
Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
SPECIFICATIONS:
HARDWARE FEATURES | |
DDM |
Yes |
SFP-MSA |
Yes |
Hot Swappable |
Yes |
Dimensions ( W x D x H ) |
2.24*0.55*0.53 in (57*14*13.45 mm) |
TRANSCEIVER | |
Standards and Protocols |
IEEE 802.3ae, 802.3by |
Wavelength |
850nm |
Power Supply |
3.3V |
Fiber Type |
50/125um or 62.5/125um Multi-mode |
Max. Cable Length |
70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps |
Support Data Rate |
Dual Rate 25.78 Gbps and 10.31 Gbps |
Connector |
Duplex LC/UPC |
Regulatory Compliance |
CE, FCC, RoHS |
Environment |
Operating Temperature: 0°C to 70°C (32–158 ℉) |
PACKAGE CONTENTS | |
Package Contents |
SM6110-SR Installation Guide |
